User Friendly 5 Gallon Barreled Drinking Water Filling Machine
- port in China for 5 Gallon Barreled Drinking Water Filling machine
- T/T Credit Card
You May Like
-
Operate Flexibly Water Plastic Bottle 5 Gallon
-
Good Character Water 5 Gallon Production Line
-
High Design Quality Washer Filler Capper Water 5 Gallon
-
Good Price Quality Price 5 Gallon Filling Machine
-
Sheenstar Water Filing 5 Gallon Machine
-
Sheenstar 5 Gallon Barrelled Mineral Water Filling Machine / Line
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SHEENSTAR | Model Number | QGF-300 | |
| Voltage | 380V/50HZ | Power(W) | 3.8KW | |
| Weight | 1500kg | Dimension(L*W*H) | by order | |
| Processing Types | pure water, mineral water,spring water | Certification | BV CE ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
User friendly 5 Gallon Barreled Drinking Water Filling machine
3&5 gallon filling machine is designed for producing 3&5 gallon barrel drinking water. The machine is
consisted of washer, filler and capper. The washer has several sprays which can be used as for both clean
water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic

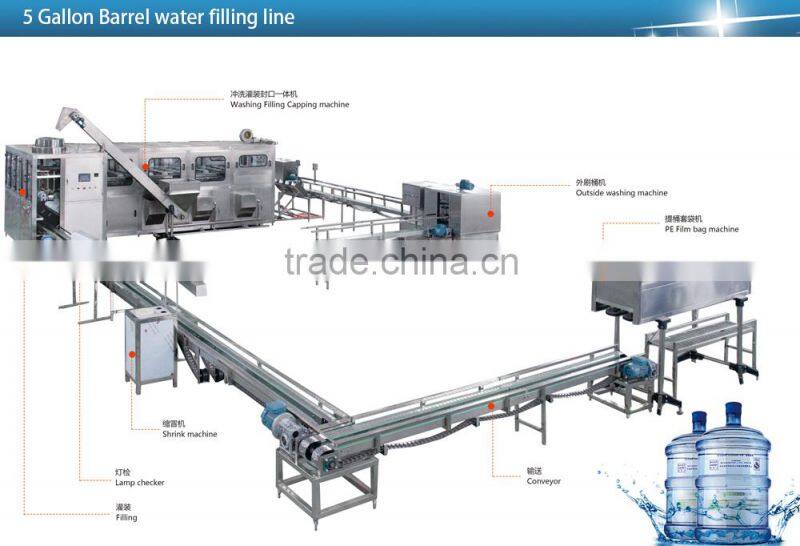

capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing,
sterilizing, filling, capping, counting and output.
This machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability

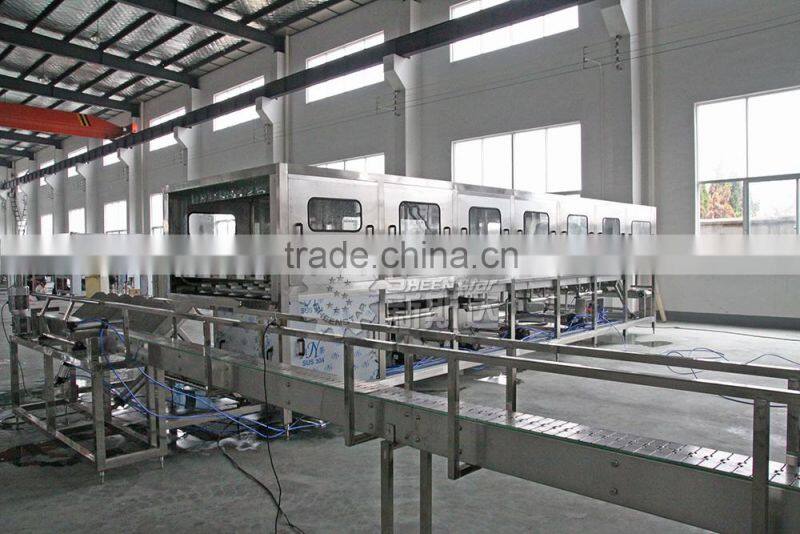

Image show
Technical data
Model | QGF-100 | QGF-300 | QGF-450 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 3 | 8 | 12 |
Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | ψ270×490 | ψ270×490 | ψ270×490 | ψ270×490 | ψ270×490 |
Production capacity(b/n) | 100-120 | 200-240 | 300-400 | 900 | 1200 |
Gas pressure(Mpa) | 0.4-0.6 | 0.4-06 | 0.6 | 0.6 | 0.6 |
Gas consumption(m³/min) | 0.37 | 0.6 | 0.6 | 2.2 | 3 |
Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Overall dimension(mm) | 3790*650*1550 | 3550*800*1800 2800*1100*1800 | 3550*1200*1800 3800*1100*1800 | 2200*1860*2700 Not include cleaning | 2560*2350*2750 Not include cleaning |


The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact imformation and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our
professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout
and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine
quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to
your factory to install the machine,give you the operating manual,and train your employee until they can
operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory
for some time.
4.We provide one year warranty with spare parts free

Why choose SHEENSTAR?
Stable high quality of machine
Competitive price
Fast,sincere and efficient service
Quality-packaging
1-year warranty
