Home > Products > LED High Bay Light > Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed Supplier's Choice

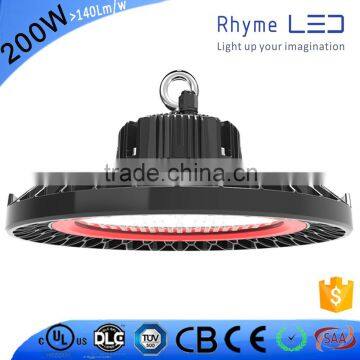

Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed Supplier's Choice

FOB Price

US$ 116.00 - 126.00 / Piece

10 Pieces(Min. Order)

Port ShangHai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD3030	Warranty(Years)	5
Input Voltage(V)	100~277V	Lamp Power(W)	200
Lamp Luminous Flux(lm)	28000	Lamp Luminous Efficiency(lm/w)	140
Color Temperature(CCT)	Other, 2700K~6500K	Working Temperature(℃)	-10, +45
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP66	Certification	BV, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, SAA, UL, VDE
Place of Origin	Jiangsu, China	Brand Name	RhymeLED
Model Number	Diamond-200W

Product Description

Main features

Name:Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

1) IP65, IK08/IK10

2) 5 years warranty (MEANWELL HBG 5 Years)

3) Patent and compact design

4) AC180~528V is available

5) Lumen Efficiency of Lamp Fixture up to 140Lm/w.

6) Multiple installations:hook/bracket/wall mounting

7) Product lable by elegant metal nameplate on product

8) Japan origin Nichia LED and Meanwell driver.

9) Equivalent to 150W, 250W, 400W, 700W and 1000W HID/HPS/MHL

10)Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

Diamond series LED High Bay Light
Model	H1A-080	H1A-100	H1A-120	H1A-150	H1A-200	H1A-240	H1A-300
Power	80W	100W	120W	150W	200W	240W	300W
Efficiency	>140lm/w	>140lm/w	>140lm/w	>140lm/w	>140lm/w	>140lm/w	>130lm/w
Luminous	11,200Lm	14,000Lm	16,800Lm	21,000Lm	28,000Lm	31,200Lm	39,000Lm
Led Brand	Nichia	Nichia	Nichia	Nichia	Nichia	Nichia	Nichia
Led Qty	112pcs	140pcs	168pcs	203pcs	280pcs	280pcs	280pcs
Driver	Meanwell	Meanwell	Meanwell	Meanwell	Meanwell	Meanwell	Meanwell
Inout voltage	AC 100~277V
CCT	2700~6500K, typical 5000K
Beam angle	120° (30/60°/90°)
Operate Temperature	-30~+70℃
Ra	>80	>80	>80	>80	>80	>80	>80

LED High Bay Light Distribution

Product Description

LED High Bay Light Installation Instruction

LED High Bay Light Different Colors

LED High Bay Light Apperance

LED High Bay Light Details

OEM nameplate free of charge for order above 100pcs.

Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

LED High Bay Light Accessories

Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

Certifications

Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

UL: E477214
DLC:PZFRNCQJ
Lighting facts:H1A-150(3000K)
CB:SG-LE-01204
CE:N8A 15 04 91674 001

LED High Bay Light Application

1. Outdoor Area Lighting, High Mast Lighting
2. Garage Lighting, Workshop Lighting
3. Warehouse Lighting, Factory Lighting, Industrial Lighting
4. Supermarket Lighting, Store Lighting
5. Tunnel Lighting, Bridge Lighting
6. Gas Station Lighting
7. Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

Technical process

Our Company-RhymeLED

1) 5-10 persons researcher team
2) The most advanced equipment
3)More than 10 years experiences in this field
4) 5% annual sales income used for research

RhymeLED Quality control

Packing & Delivery

1. Standard export Carton Box, 1unit/ carton
2. Pallet packing for bulk orders, 30 to 36 units/ pallet
3. Container loading for large orders.

RhymeLED Shipping

1) Payment term: T/T, L/C , or Western Union for small amount .
2) Lead time : normally in 7~10 days after deposit received
3) Sample policy : Samples can be ready in 4~7 days once payment received .
4) Shipping port: ShangHai .NingBo.China
5) Discounts : We offer discount for big quantity.

Datasheet // Pricelist // IES files // Installation Instruction // Detaily Pictures ...etc...

Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed
Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed

How to place order ?

Trade Assurance Order

1, Start order, the seller draft the order on Alibaba account.
2, Confirm order, the buyer checking order terms and then confirm it on Alibaba account.
3, Payment.,the buyer make a payment according to Alibaba's instruction.
4, Shipment, the seller arrange the goods shipment.
5,Confirm receipt, the buyer confirm receipt once got goods.

RhymeLED Lighting fairs

Any more concerns, welcome tell us freely, with thanks. Samples order or trail order welcomed !
Dimming fuction IP65 waterproof motion sensor 200W ufo led high bay light for 8m installed
