Home > Products > LED Flood Light > square design black special angle outdoor 400w led uv flood light with high power

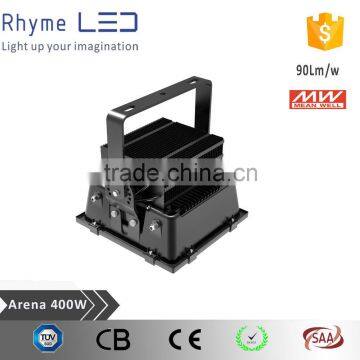

square design black special angle outdoor 400w led uv flood light with high power

FOB Price

US$ 488.00 - 512.40 / Piece

1 Piece(Min. Order)

Port NingBo/ShangHai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	PHILIP LUXEON 2D	Input Voltage(V)	AC100-277V
Lamp Power(W)	400	Lamp Luminous Flux(lm)	40000
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Other, 2700K~6500K
Working Temperature(℃)	-10, 45	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum Alloy	IP Rating	IP65
Certification	BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE	Place of Origin	Jiangsu, China
Brand Name	RhymeLED	Model Number	Arena-400S

Product Description

1.Special heat dissipation design, and max power is 1000W.
2.Top quality CREE and Philips Luxeon LED, good technical performance and reliable quality
3.It has been processed by electrophoretic paint, and passed 200 hours salt spray test;
4.External driver design, seperate driver design,enhancing the driver' efficiency and stability.
5.Inside copper heatpipe to the fins, the heatsink(housing) having excellent thermal performance;
6.Efficiet module heat dissipation ,resistant to high temperature, Efficient waterproof stainless steel screws.
7.Different beam angle, meet the requirement of professional light distribution, and can restrain the dazzle light and spill light effectively;

square design black special angle outdoor 400w led flood light with high power

Quick Details:

1. Item Name	square design black special angle outdoor 400w led flood light with high power
2. Country of origin	China (Minland), Jiangsu Province.
3. MOQ	1-100 PCS
4. Departure Port	SHANGHAI Port /or NINGBO Port
5. Samples Time	(1) 3-5 days-If you want to customize your logo. (2) 1 day-For our existing samples for reference.
6. Lead Time	15-20 days for 5000pcs LED high bay light
7. OEM	OEM service available,since we have own die-casting factory
8. Supply Capicaty	10000 pcs per month

1, Product Datasheet

ITEM	F4D-100TS	F4D-150TS	F4D-250TS	F4D-500TS	F4D-300TS	F3C-500TS	F3C-400S	F3C-500S	F4D-1000S
Rated Power(W)	100w (TS)	150w (TS)	200w (TS)	250w (TS)	300w (TS)	400w (TS)	500w (S)	600W (S)	1000W (S)
Input Voltage	AC100~277V
Power Factor	>0.9
Power Supply Brand	MEANWELL Taiwan
LED Brand	CREE						PHILIP LUXEON TX
LED Type	XTE	XML	XTE	XML	XTE	XML	SMD3737
LED QTY	30PCS	30PCS	84PCS	84PCS	150PCS	84PCS	168PCS	216PCS	384PCS
Luminous Flux(LM)	9,000Lm	13,500Lm	22,500Lm	45,000Lm	27,000Lm	45,000Lm	40,000Lm	50,000Lm	100,000Lm
Lumious Effciency(Lm/w)	90Lm/w						100Lm/w
Color Temperature	2700K~6500K (Typical 3000K/4000K/5000K/6000K)
Beam Angle	6°/10°/20°/30°/60°					30°90°/60°90°	25°/45°/60°/90°/100°		1190°/5090°
Ra(CRI)	>70(>80)
IP Rating	IP65
Dimmable(Y/N)	Y/N
Dimension(MM)	316*347MM		484*362	484*390	508*476	480*391	443*458	443*456	534*602
Materials	Aluminum,Glass
Lifespan	50,000 Hours
Warranty	5 Years
Certificates	CE RoHS
OperatingTemperature	-10℃~45℃
Storage Temperature	-20℃~55℃
G.W.(KG)/CTN	8.00Kgs	8.50Kgs	12.50Kgs	22.00Kgs	16.00Kgs	22.50Kgs	24.00Kgs	23.00Kgs	42.00Kgs
N.W.(KG)/CTN	6.50Kgs	7.00Kgs	10.50Kgs	18.50Kgs	13.00Kgs	18.50Kgs	19.50Kgs	18.60Kgs	35.00Kgs
PCS/CTN	1PC
PACKAGE(CM)	393939CM		585837CM	585842CM	585849CM	595943CM	595943CM	575441CM	796168CM
QTY of 20'GP	1170PCS		825PCS	240PCS	192PCS	224PCS	224PCS	192PCS	90PCS

2,Product details;

3,Test Summary:
