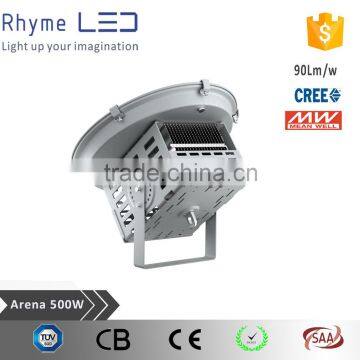

Round design black IP65 500w led floodlight with special heat dissipation Quality Choice
- NingBo/ShangHai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 most powerful 5 years warranty outdoor 150 watt led flood light with factory
-
waterproof energy saving high lumen 50w Led Flood Light outdoor
-
high quality 120degree 500w floodlight with Meanwell drive
-
beam angle and lens optional 20~150w outdoor led flood light
-
2016 new design ip66 400w outdoor led flood light
-
CE RoHS approved ip66 500w high lumen outdoor led flood light
Product Details
LED Light Source | Cree | Input Voltage(V) | AC100-277V | |
Lamp Power(W) | 500 | Lamp Luminous Flux(lm) | 45000 | |
Lamp Luminous Efficiency(lm/w) | 90 | Color Temperature(CCT) | Other, 2700K-6500K | |
Working Temperature(℃) | -10, 45 | Working Lifetime(Hour) | 50000 | |
Lamp Body Material | Aluminum | IP Rating | IP65 | |
Certification | BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE | Place of Origin | Jiangsu, China | |
Brand Name | RhymeLED | Model Number | F4D-500TS |
Product Description
Round design black IP65 500w led floodlight with special
heat dissipation
1. Special heat dissipation design, and max power is 1000W.
2. Big aluminum PCB, lower junction temperature because of sparse lay out
3. Inside driver design and IP66 protection, safe and reliable for outdoor using
4. World famous brand power supply, 5 Years warranty and global after sales service
5. Ultra-slim sleek design and sequare die-casting radiator, better heat dissipation and stronger lamp fixture
Quick Details:
1. Item Name | Round design black IP65 500w led floodlight with special heat dissipation |
2. Country of origin | China (Minland), Jiangsu Province. |
3. MOQ | 1-100 PCS |
4. Departure Port | SHANGHAI Port /or NINGBO Port |
5. Samples Time | (1) 3-5 days-If you want to customize your logo. (2) 1 day-For our existing samples for reference. |
6. Lead Time | 15-20 days for 5000pcs LED floodlight |
7. OEM | OEM service available,since we have own die-casting factory |
8. Supply Capicaty | 10000 pcs per month |
1, Product Datasheet
ITEM | F4D-100TS | F4D-150TS | F4D-250TS | F4D-500TS | F4D-300TS | F4D-500TS | F4D-400S | F4D-500S | F4D-1000S |
Rated Power(W) | 100W | 150W | 250W | 500W | 300W | 500W | 400W | 500W | 1000W |
Input Voltage(V) | AC100~240V | AC100~277V | |||||||
Power Factor | 0.9 | ||||||||
Power Supply Brand | Meanwell Taiwan | ||||||||
LED Brand | CREE | Philip LUXEON TX | |||||||
LED Type | XTE | XML | XTE | XML | XTE | XML | SMD3737 | ||
LED QTY | 30PCS | 30PCS | 84PCS | 84 | 150PCS | 84PCS | 168PCS | 216PCS | 384PCS |
Luminous Flux(LM) | 9,000 Lm | 13,500 Lm | 22,500 Lm | 45,000 Lm | 27,000 Lm | 45,000 Lm | 40,000 Lm | 50,000 Lm | 100,000 Lm |
Lumious Efficiency (Lm/w) | 90Lm/W | 100Lm/W | |||||||
Color Temperature | 2700K~6500K (Typical 3000K/4000K/5000K/6000K) | ||||||||
Beam Angle | 6°/10°/20°/30°/60° | 30°*90°/ 60°*90° | 25°/45°/ 60°/90°/100° | 11*90°/ 50*90° | |||||
Ra(CRI) | >70(>80) | ||||||||
IP Rating | IP65 | ||||||||
Dimmable(Y/N) | Y/N | ||||||||
Dimension(MM) | Φ316* 347MM | Φ316* 347MM | Φ484* 362MM | Φ484* 390MM | Φ508* 476MM | Φ480* 391MM | Φ443* 458MM | Φ443* 456MM | Φ534* 602MM |
Materials | aluminium,glass | ||||||||
Lifespan | 50,000Hours | ||||||||
Warranty | 3 years | ||||||||
Certificates | CE ROHS | ||||||||
Operating Temperature | -10℃~45℃ | ||||||||
Storage Temperature | -20℃~55℃ | ||||||||
G.W.(KG)/CTN | 8.00Kgs | 8.50Kgs | 12.50Kgs | 22.00Kgs | 16.00Kgs | 22.50Kgs | 24.00Kgs | 23.00Kgs | 42.00Kgs |
N.W.(KG)/CTN | 6.50Kgs | 7.00Kgs | 10.50Kgs | 18.50Kgs | 13.00Kgs | 18.50Kgs | 19.50Kgs | 18.60Kgs | 35.00Kgs |
PCS/CTN | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
PACKAGE(CM) | 39*39*39CM | 58*58* 37CM | 58*58* 42CM | 58*58* 49CM | 59*59* 43CM | 59*59* 43CM | 57*54* 51CM | 79*61* 68CM | |
QTY of 20'GP | 540PCS | 272PCS | 240PCS | 192PCS | 224PCS | 224PCS | 192PCS | 90PCS |
2,Product details;
Production flow chart:
Application:
