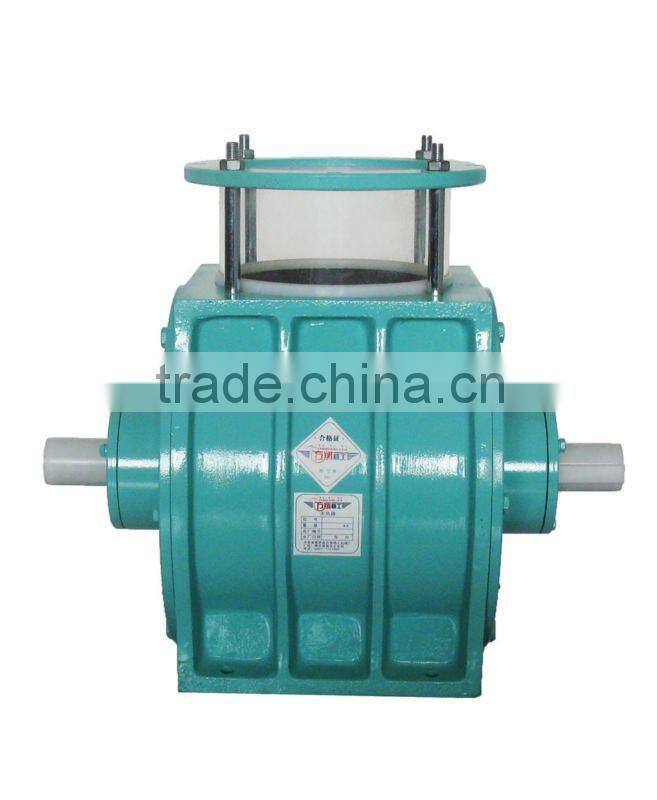

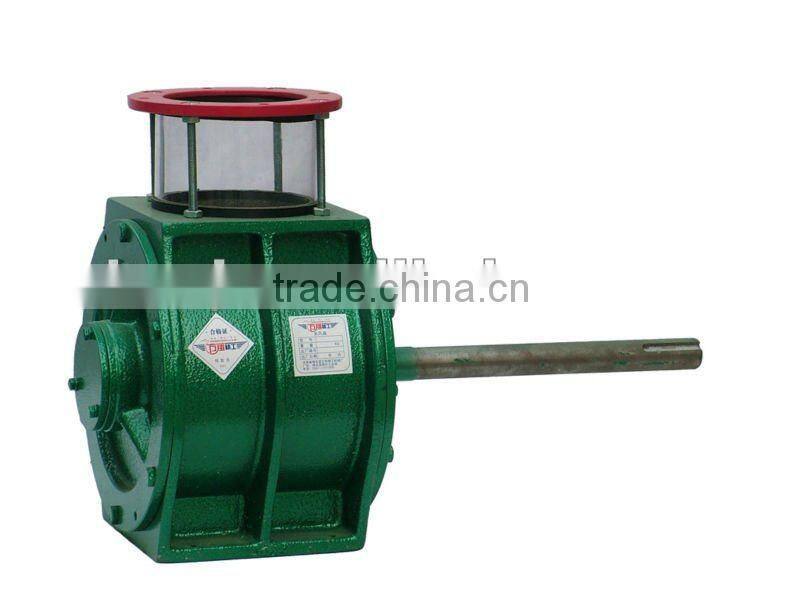

TGFY Series Airlock for Rice Milling

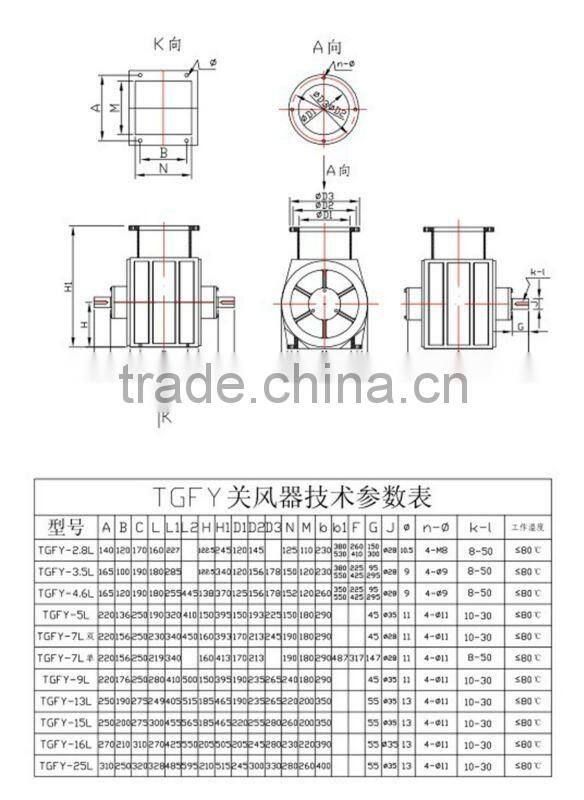

Specifications

Brief Instruction of airlock for rice milling

Airlock for rice milling is an important device for pneumatic conveying and dust removal. The main usage of airlock for rice milling is to timely and constantly unload the material from discharger or dust collector, and to prevent the outside air from entering the discharger or dust collector. Airlock for rice milling can handle materials in powder, pellet, flake shapes and also fiber materials. And at the same time, airlock for rice milling is widely used in rice milling, powder, animal feed, machinery, chemical engineering, medicine, tobacco, metallurgy and cement making, dust removal and many other industries.

Structure and Working principle of airlock for rice milling

This airlock for rice milling is a kind of improved impeller open type airlock for rice milling . It is a discharging machine structured with impeller, bearing, oil seal, airlock shell, end cover and other spare parts. On the top of the airlock for rice milling there is flange connected with the unload opening of discharger to receive the material from discharger, and then unload material from the bottom of airlock for rice milling while impeller rotating. The impeller is open type, which can prevent material from blocking as well as reduce airlock weight and shape

Model Selection for airlock for rice milling and Using Form

Model selection basis for airlock for rice milling :

1. Material granularity (powder or granule);

2. Material viscosity(water or other liquids included);

3. Material pH value(may select common material or stainless steel with different properties);

4. Material temperature(select external type airlock if above 60°C);

5. Material handling capacity(Theoretical calculation of volume×1.2).

Using form for airlock for rice milling :

Independent work by single airlock for rice milling ( transmission by belt, chain or direct coupling), multi-machine series and in parallel. No more than 5 airlocks for rice milling in one unit when working by multi-machine in series or in parallel. The length of tandem shaft coupling and the height of bracket can be decided by users.

Installation and Use for airlock for rice milling

Before installation airlock for rice milling must be carefully examined to make sure the impeller rotates flexibly and that relevant connecting parts reliable and correct. Then fix the airlock for rice milling on the floor or the bracket. Add full oil according to the using instructions if there is a reducer (3# Lithium-based lubricant). If a combination of airlocks for rice milling is used, there must be overload and short-circuit protection devices in order to prevent the damage of motor.

Before feeding, airlock for rice milling with separate power must be turned on before host machine, while airlock for rice milling without separate power should be turned on with host machine at the same time. And airlock for rice milling should be shut down after discharging of raw material.

Always pay attention to the observing window to see whether material flow is normal or not while running the airlock for rice milling. Timely treatment if accumulation.

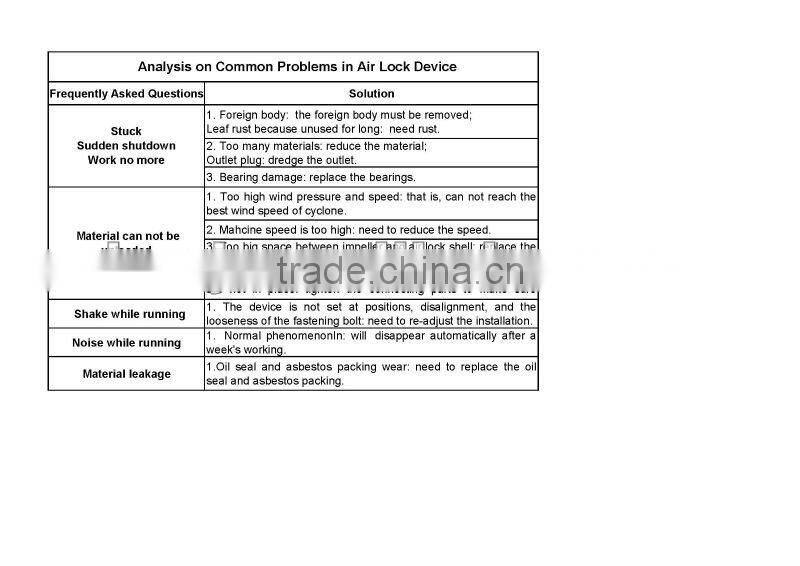

Daily Maintenance and Repair for airlock for rice milling

1. Lubrication

While installation of reducer for airlock for rice milling driving, the added lubricant should be fully unloaded one month later and add the new lubricant. Regular check for oil level keep. Lubrication for airlock for rice milling bearings can be done when equipment maintenance.

2. Lutation

Both ends of the viewing window of airlocks for rice milling are U type rubber sealing rings,and they should be replaced immediately if damaged.

Oil seal is for the lutation of impeller shaft and end cover, which should be always checked. It should be replaced immediately if damage, otherwise the material will enter into the rolling bearing and thus cause bearing damage. Users are advised to choose airlock for rice milling with double oil seal and discharge opening.

Lutation between impeller and airlock for rice milling shell is the key point of airlock for rice milling . If the other place does not leak but material accumulation happens, it is mostly because of the abrasion between the impeller outer diameter and the inside holes of the shell. In this caseusers shouldreplace immediately.

3. Teardown and Maintenance

Correct methods for airlock for rice milling teardown:

1. Tear down by bolt;

2. Tear down by hammer. Remember to put copper bar or wood blocks on spindle head or end cover when teardown.

When replacing, first clean the end cover, then fit the airlockwith the same specifications of the oil seal and bearing. There must be full lubricating oil.
