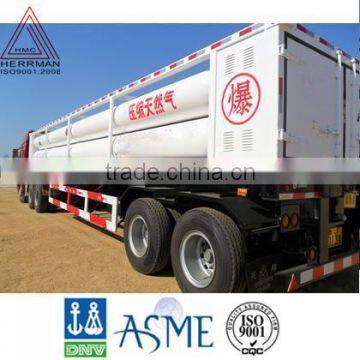

CNG CYLINDER FOR TRANSPORT CNG

FOB Price

US$ 100,000 - 1,000,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

CNG CYLINDER FOR TRANSPORT CNG

Application:

1. For CNG transportation from Mother station/ gas reserve to daughter station;

2. For CNG transportation to places where pipeline network hasn’t been built;

3. For CNG transportation to places where can’t reach existing distribution system etc;

4. For CNG storage at gas stations.

Specification:

FOR ONE UNIT:

Seamless steel cylinder specification
Working pressure	20	MPa
Ambient temperature	-40~60	°C
Gas type	CNG
Capacity per unit	2.250	m³
Max weight of filling CNG	406.8	Kg
Weight(empty)	2690	Kg
Hydraulic testing	33.4	MPa
Gas leakage test	20	MPa
Size(diameter x L)/unit	Φ559x10980	mm
Cylinder material	4130X

FOR 8-TUBE BUNDLES CONTAINER:

8-tube bundles container specification
Outer size	1296025003000	mm
Total weight	36000	Kg
Curb weight	32770	Kg
Rated weight	3230	Kg
Approach/Departure angle	-/16
Front/Rear suspension	-/1790	Mm
Axle load	-/19770
Wheelbase	7120+1350+350	Mm
Number of tires	12
Effective volume	17.92	m³
Density	180.8	Kg/ m³

FOR 10-TUBE BUNDLES CONTAINER:

10-tube bundles container specification
Outer size	1240025003550	mm
Total weight	40000	Kg
Curb weight	36000	Kg
Rated weight	4000	Kg
Approach/Departure angle	-/16
Front/Rear suspension	-/1800	Mm
Axle load	-/23770
Wheelbase	6680+1310+1310	Mm
Number of tires	12
Effective volume	22.4	m³
Density	180.8	Kg/ m³

Packaging & Shipping

Packaging: with trailer.

Shipping: 20 days after order confirming.

Our Services

Depond on your requirement, we design the tank on different material, volume, pressure.etc.
