8T Maintenance Free/explosion Proof Mining Locomotive (CTL8/6.7.9G-110)

Shuangli  8T Maintenance free/common safe model locomotive (600/762/900mm track gauge)

Battery-powered locomotives are designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. They are certified according to European safety standards. They can work on slopes of rail lines up to 35‰ , with track gauge from 500 to 1060 mm, at ambient temperatures from -20°C to +40°C.

Locomotives are with single cabin and two cabins weighing from 2.5 t to 18 t. Cabins are removable, due to a simple transport into underground tunnels. Transmission of torque moment from the electric motors is through the axle gearbox to travel wheels. The chassis is of dual-axle type and travel wheels are secured with interchangeable rims. Suspension of locomotive is provided by elastic rubber-metal blocks of sagittal shape or by means of springs in accordance with the track quality.

Three-phase, asynchronous, electric motors with external cooling, and with power from 3.5 kW to 2x40 kW are practically maintenance-free. Speed and torque of the motors are controlled by a frequency inverter with controller unit. Electric batteries are of the container type and adapted for easy maintenance and replacement. Speed control and braking is proportional by means of one lever, in the whole range of travelling speed.

Locomotive braking is performed by two independent systems on both axles: electrodynamic - it means by electric motors through mechanical gears and mechanical - it means by mechanical dual circuit brake and by mechanical action through direct linkage to travel wheels. Brake control is proportional and maximum brake force/stopping power is self-adjustable. Parking brake is automatic. The security system provides automatic stop of the locomotive engine in a case of failure mode and when exceeding the temperature and pressure limit values. The driver is informed about all conditions by means of a display on the dashboard and such information is saved into control system memory.

Our Services

Pre-sales Service:
The wide product range enables us to provide our customers with individual machines or complete processing plants.Based on our customers'request and budget, our experts make efficient and reliable solutions, and we produce strictly follow customers' order. What's more, every customer has the chance to visit the working machine in the site before placing the order.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers'plants.Necessary training about machine daily maintenance to local workers is provided also.

Advantages:

The high technology, reliable performance, simple maintaining, economical and high-efficiency makes the 8T underground mining battery locomotive fit for all kinds of tunnel projects and mines. For small coal mines, non-coal mines, tunnel engineering, construction projects and so on, the 8T underground mining battery locomotive is second to none.

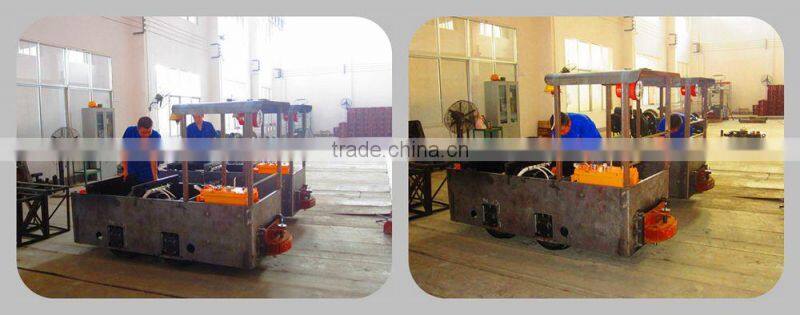

Detail Images:

Certifications:

Company Introduction:

Shuangli Locomotive Equipment (Shenzhen) Co., Ltd, located in Shenzhen, Guangdong, is specialized in the production of industrial and mineral electric vehicle, its ancillary equipment and accessories,Facoty located in Hunan Province.Our main products are mineral over-head line electric vehicle, explosion-proof special battery electric vehicle and accessories.

We always adhere to technology innovation, establishing credibility, and people oriented policy, and pursue the quality first and customer first tenet. We have established a complete and stable quality assurance system, and gradually form modern management mode. We have passed through ISO9001-2008 quality management system certification, mean while nearly 50 models of products have "MA" and "KA" certification.

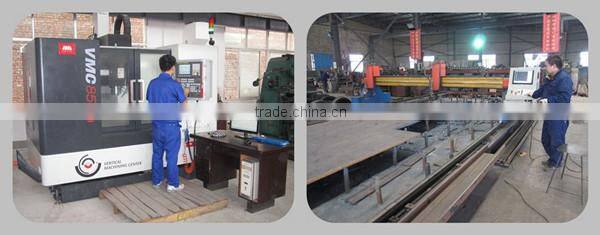

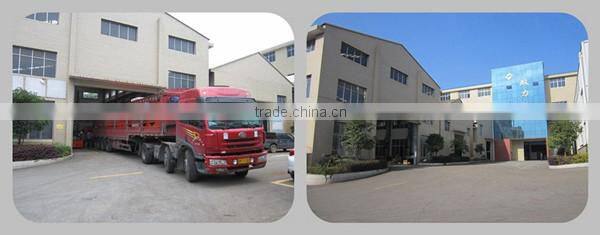

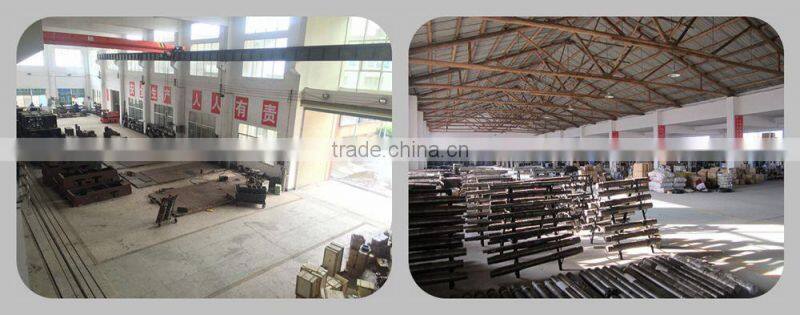

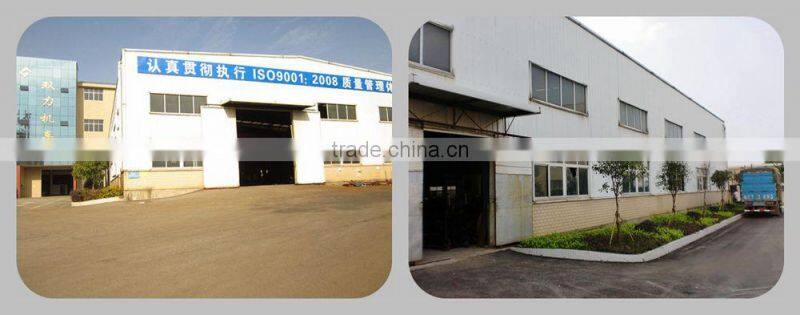

Factory images:
