2 100M SC+3 100M RJ45 3 ports fiber media converter

FOB Price

USD $50 - $100 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HiOSO
Model Number	FC650R

Product Description

Ring Type Fiber Media Converter

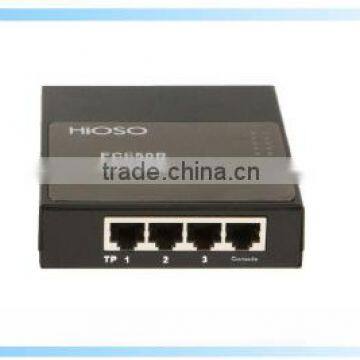

FC650R 2 100M SC+3 100M RJ45 Ring Type Fiber Media Converter

Overview

HiOSO FC650R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 100BASE-FX fiber ports and 3 10/100BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.

Features

l Provide two 10/100M fiber ports, three 10/100M RJ45 ports

l Support gigabit fiber Hiper-Ring network

l Support 128 ring network nodes

l Support redundant ring network protection (switching time<50ms, RSTP/STP

l Support WEB management, RSR (Rapid Super Ring)

l Working temperature is -10℃~70℃

l Supporting multiple types of fiber ports, such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users

Technical Specifications:

Parameters	Specifications
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs : 100m
Port	3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
MAC table	1K
Buffer space	512Kbit
Delay	<10us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action)
Power	DC 12V
Power consumption	5W
Operating temperature	-10~70℃
Operating humidity	5%~90%
Storage temperature	-40~80℃
Storage humidity	5%~90% (non-condensing)
Dimensions	26mm(H)96mm(W)120mm(D)/ (height * width * depth) (external power)

Order Information

Type	Rate (Mbps)	Mode	Working Wavelength (nm)	Transmission Distance (Km)	Fiber Interface	Power
FC650RM-SC	10/100	Dual-fiber multi-mode	1310	2	SC/ST	External DC12V
FC650RS20/40/60-SC	10/100	Dual-fiber single-mode	1310	25/40/60	SC	External DC12V
FC650RS80/100/120-SC	10/100	Dual-fiber single-mode	1550	80/100/120	SC	External DC12V
FC650RSS20/40/60-SC	10/100	Single-fiber single-mode	1310/1550	25/40/60	SC	External DC12V
FC650RSS80/100-SC	10/100	Single-fiber single-mode	1310/1550	80/100	SC	External DC12V
