CE Approved Confectionery Machine Manufacture for Coating Chocolate
- Shanghai
- T/T Money Gram
You May Like
-
Easy Operated Confectionery Machine for Chocolate Coating Line
-
QJZ Automatic Chocolate Depositor Machine
-
QKT Series Chocolate Coating Machine
-
Best Selling Chocolate Deposit Candy Machines With Good Service
-
Low Cost Full Factory Candy Machinery of Chocolate
-
Shanghai Popular Chocolate Candy Machine for Making Candy
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | CANDY | Model Number | QKT | |
| Application | Candy | Voltage | 380V | |
| Power(W) | 16.5kw | Weight | 400kg | |
| Dimension(L*W*H) | 18000X1700X2400MM | Certification | CE | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE approved confectionery machine manufacture for coating chocolate
1. Application:
The enrobing line is to coat chocolate on various food such as biscuit, wafers, eggrolls, cake pie and snacks, etc.
There are following special devices for option also:
Automatic feeder: to simplify the feeding of biscuits or wafers etc to the enrobing wiremesh, inprove production effciency of 1/3;
Granular sprinkler: to sprinkle sesame or peanut granulars on the enrobing products;
Decorator: to decorate zigzags or stripes of different color on the surface of enrobing products.

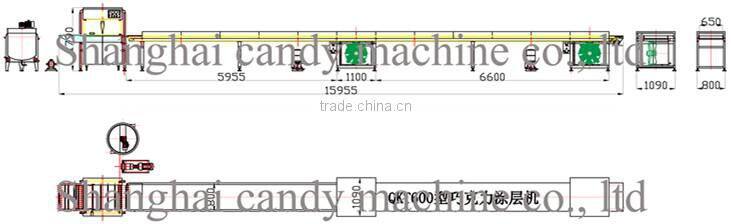

2.Coating machine flowchart:
3. Parameters:
Model | QKT-600 | QKT-900 | QKT-1200 |
Wiremesh and belt width (mm) | 600 | 900 | 1200 |
Wiremesh and belt speed (m/min) | 1-6 | 1-6 | 1-6 |
Refrigeration unit | 3 | 4 | 5 |
Cooling tunnel length (m) | 14 | 17 | 20 |
Cooling tunnel temperature | 2-10 | 2-10 | 2-10 |
Total power (Kw) | 16.5 | 22.87 | 28.5 |
Gross weight(Kg) | 2300 | 3200 | 4050 |
Overall dimension(mm) | 17500*950*1800 | 21500*1200*1800 | 25500*1450*1800 |

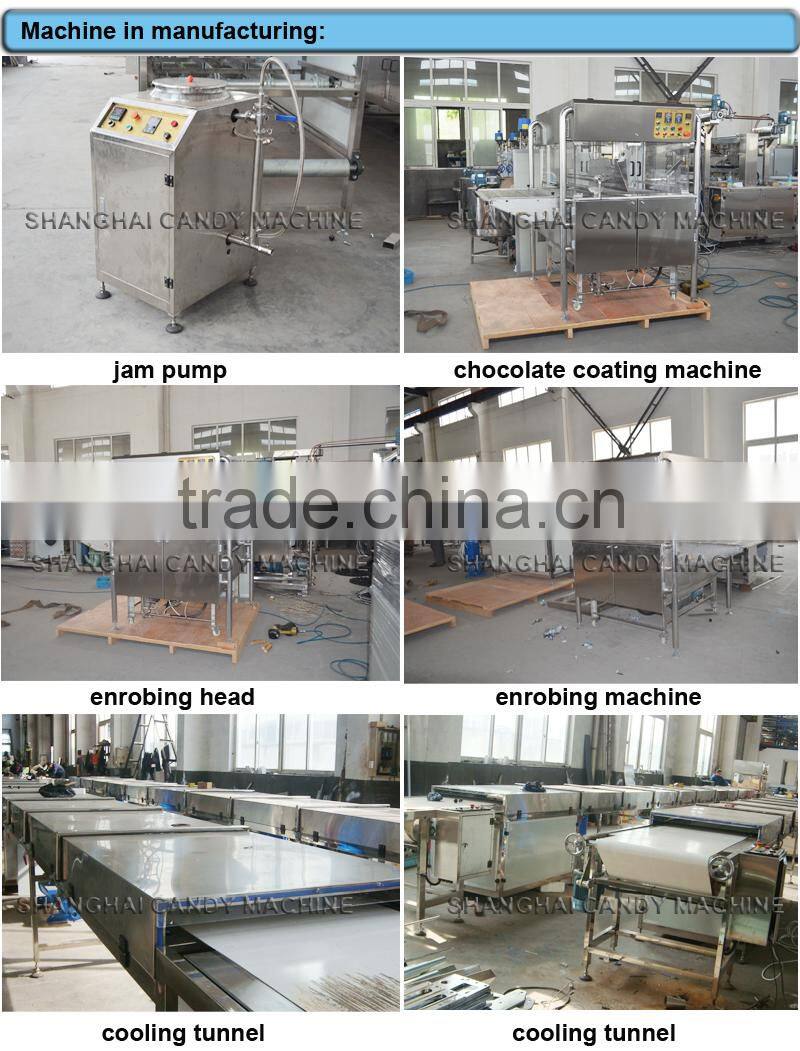

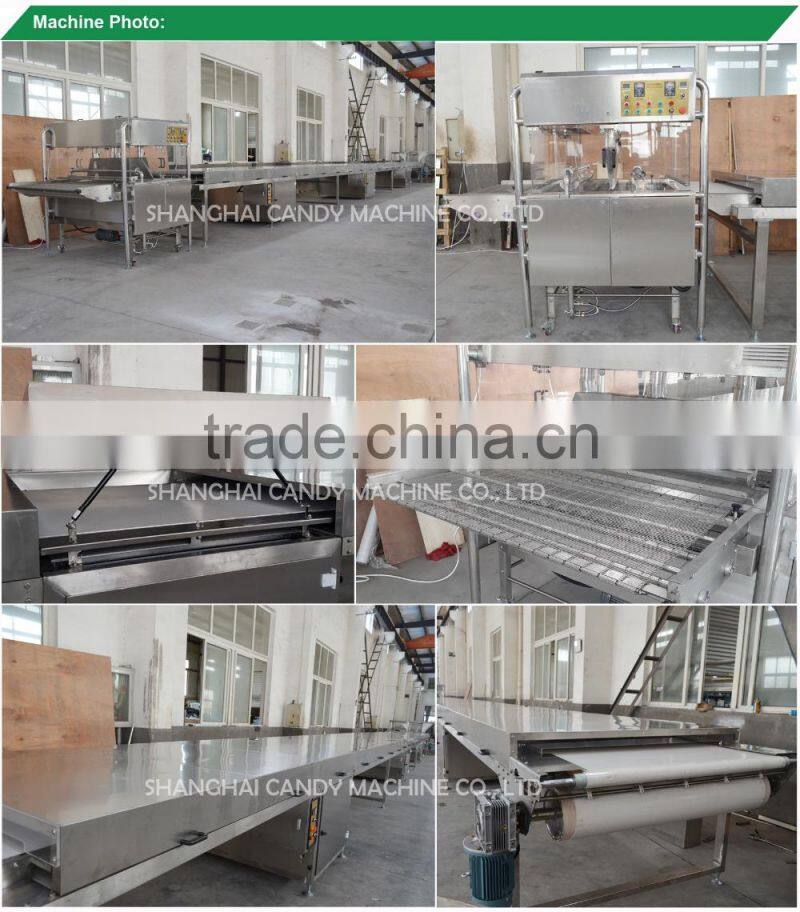

4. Photos of this line:
Why choose us:
* 13 years focus on confectionery /candy machines research;
* Advanced CNC production equipments;
* Main material use stainless steel 304;
* International brand for machine parts;
* Exported to more than 20 countries;
* Experienced technician for installation;
* Experienced sales person for consulation before and after sales.
CE approved confectionery machine manufacture for coating chocolate
1. Package: exporting wooden box
2. Delivery time: 60-90 days after order
3. Shipment: by sea or air
Installation service:
We will send one or two technical staffs to process the supervising of installation and debugging, training the operator for a period of about 15 days.
Purchaser has to bear the cost of return tickets by air, accommodation, besides, purchaser needs to pay a daily allowance per day per technical staff during the stay in purchaser area.
Warranty:
We will provide 12 months quality warranty from the delivery date.
