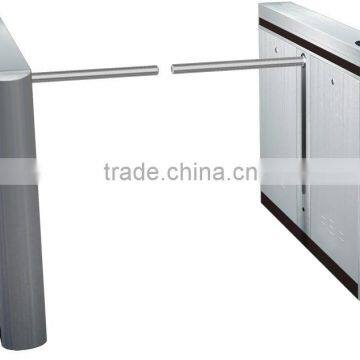

excellent quality arm drop turnstile with RFID reader

Function and Features

Fujica intelligentized arm drop turnstile is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors.

Arm drop turnstile consists of cabinet,reader module,main control module,motor&driver module,infrared photocell,alarm device,limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent arm drop turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.

1. Smartcard reader compatible with a variety of RF cards, such as Mifare-1, EM.

2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control,attendance check or fare collection.

3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer

4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian

5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.

6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)

7. Provide audible sound prompt and information display function.

8. The arm will open automatically during power interruption, and recover N/C mode after power on(optional)

9. Counting function. arm drop after passing N pedestrians continuously by reading cards N times correspondingly (N<=16)

10.Reversed passing alarm function, equipment will alarm if pedestrian pass from opposite direction after reading the card.

Parametes

 FAQ

1. can we use our own access control system?

Yes, you can. It's totally OK with our flap barrier. And we suggest all our clients could use their own professional access control system.

2. can you train us if we buy your products?

Yes, we will provide free training. You send your engineers to us, we will train them in our factory.

3. can you make it bi-directional? Any extra cost?

Yes, we can make it bi-directional. If you are using your own readers, no extra cost.

4. can it use for outdoor? will it open when power off?

Yes, it can use for outdoor. And we will make it open when power off with extra cost.

5. what's the material of the wing? Can you make it tempered glass?

It's Acrylic. Tempered glass is not suitable for long way transportation, we suggest to keep it to Acrylic.

6. do you have any safety certificate?

We have CE certificate for products, and ISO certificate for factory.

Company Information

Established in Y2004,Fujica System Co., Ltd. is a professional developer and manufacturer of intelligent turnstiles, barrier gates, parking management system etc.

As one of the top-three companies in the industry, we have established our sales channel in more than 60 cities all over in China and are expanding our markets in overseas countries and regions.

We have totally 500 staff members, including a very strong R&D team with 50 engineers and technicians. They are always ready to meet your OEM/ODM requests. Backed by our experience and creativity, our products feature reliable performance and unique functions.

Making the best intelligent products in China, FUJICA is adhering to the objective of "Leading at Home, Famous in the World".

 Packaging&Shipping
