vehicle access control Barrier Gate D68

vehicle access control Barrier Gate D68

Work Flow

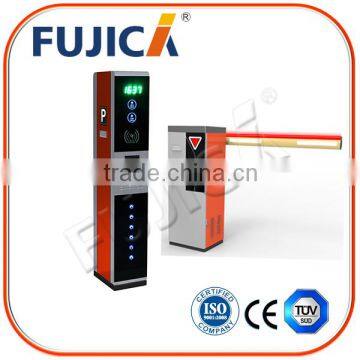

Entrance/ Exit Terminal

System picture:

A. Visitors Working Flow:

1 How to Entry

The vehicle covers detector loop 1, visitor will press the push button on the front panel of entry

Terminal. The card dispenser will spit card, information like date, entry time will be written into

the card. Meantime, the barrier gate will open automatically, the visitor enters the parking lot.

After the vehicle passes by the detector loop 2, barrier will close automatically.

2 How to Pay

Visitor drives to the cashier booth, which is located close to the exit terminal and barrier gate.

He gives his card to the operator. The operator will read the card  by card reader for transaction,the software will show how much the visitor will have to pay. Receipt printer is optional here.

3 How to Exit

After the visitor pays, the operator will open the exit barrier gate by software. After the vehicle

passes by the detector loop 4, the barrier will close automatically.

B. Monthly User Working Flow:

1 How to Entry

The vehicle covers detector loop 1, monthly user will swipe the proximity card on the

card reader panel of the entry terminal. Barrier gate will open automatically. After the vehicle

passes by the detector loop 2,the barrier will close automatically.

2 How to Pay

Monthly user does not be requested to pay every time. Usually he goes to central management station to pay the parking fee every month or several months.

Proximity  cards are authorized both by card issuer.

3 How to Exit

The vehicle covers detector loop 3, monthly user will swipe the proximity card on the card

reader panel of the exit terminal. Exit terminal will detect the validity of the card. If the card is

valid, it will send a signal to the barrier gate. Barrier gate will open automatically. After the

vehicle passes by the detector loop 4, the barrier will close automatically. If the card expires,

LED display will remind the monthly user to go to central management station for payment.

The transient visitor and monthly user can push the “HELP” button to talk with operator in the

central management station for any assistance.

Hardware requirement:

Server:

1. 1. SQL server

2. Pentium 4 CPU or better

3. 40GB hard disc or better

4. 256MB memory or better

5. 1024*768 monitor or better

Work station:

1. Windows 7 32-bit

2. Pentium 4 CPU or better

3. 40GB hard disc or better

4. 256MB memory or better

5. 1024*768 monitor or better

Advantages

1 Benefit Your Management

1) Reduce management cost.

2) All cash transactions are recorded.

3) Avoids illegal deal, save revenue lost.

4) All operations are recorded.

5) Easy charge report and simple operation log.

2 Benefit Your Customer

1) Make your customers feel more secured.

2) Avoids line up, no wait.

3  Products are Simple and User-Friendly
