IP Cloud Alarm main operation service host /scanner

Specifications

FINSEEN ALARM HOST SPECIFICATION

The IP Alarm’s scanner keeps watch in your home - even when you are not there.

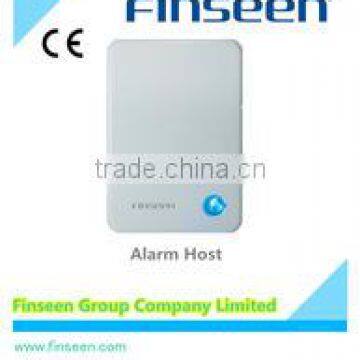

The IP Alarm scanner is the alarm’s central component. It gathers data and starts the sirens in the event of fire and break-in.

The scanner sends data to IP Alarm’s protected servers online. Here is the data monitored and sent to your smartphone or tablet. For example by break-in, fire or smoke.
Unlike similar systems, IP Alarm is in constant contact with your home and you mobile devices. While you are away,IP Alarm’s keeps an eye on the activity in your home.

The installation process is very simple. Overall, you have to connect two cables. Electricity and  internet. IP Alarm’s handles the rest. The two connection points are shown on the illustration to the right.

It is recommended to place the IP Alarm scanner somewhere central in the house so the wireless signals are optimized for all the units involved.

The IP Alarm scanner is fitted with a battery, which functions as a backup if the electricity is cut off. The battery is switched OFF from the factory. Under the bottom of the scanner, there is a little switch for the battery. If you forget to turn it 'ON', IP Alarm will of course warn you.

The Scanner has a built-in siren, whichis activated in the event of a break-in, even if the internet is unavailable. If you have connected other units to IP Alarm,theywill also be activated in the event of fire and gas leaks.

The scanner has no settings for you to worry about. You do all system settings via your own smartphone app.

The scanner is fitted with a LED light, which mean the following:

Lamp               Power                Alarm mode

Off                            System off

Blue light                 External power connected        Disarmed

Blue light flashes slowly External power connected        Armed or home-armed

Blue light flashes fast      External power connected        Alarm set off

Yellow light              Battery backup power low

Lamp               Mode

Red light                  'Sensor enroll' open

Red light flashes              'Sensor enroll' succeeded.

Warnings and alarm’s resets by disconnecting the burglary alarm.

This is done via smartphone, IP Alarm’s remote, or tablet.

The wireless range of the IP Alarm’s scanner is ca 100m in open country. That number is not very applicable in practice, however. Depending on the number of walls, materials, energy-saving windowpanes and the like, the range will vary.

You can improve the signal by either moving the sensor or possibly moving the scanner.
If this does not work, you can extend the range by adding anIP Alarm’s signal extender, which can repeat the signal.

•    Power Supply:           5VDC 1000mA regulated

•    Radio Frequency:      868MHz

•    Range:                Max 300m

•    Backup time:             Ca 4 hours

•    Humidity:           10-95%Rh

•    Temperature:            -10°C - +40°C

Finseen New Cloud IP Technology Home Alarm

   Different Home Alarm--Finseen IP Alarm! Not GSM System

Control your home by mobile APP anywhere
Instant PUSH and email notification
99wireless zone fully protect your home

Innovative Finseen IP Cloud Alarm kits—A New Cloud-Based Alarm Solution for the residential market!

Key Benefits

 .  Control your home from your smartphone

 .   Monitor your home from anywhere

 .  User-friendly interface
