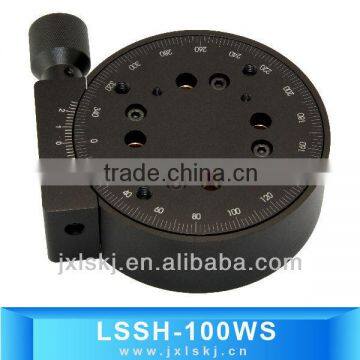

LSSH-100WS Worm gear rotation stage
- 200 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | LS | |
| Model Number | LSSH-100WS |
Product Description
LSSH-100WS Worm gear rotation stage
1.Driven by fine pitch worm gear provinding 360 degree continuous rotation.
2.graduation marks in 1 degree increments.
3.Vernier scale provides resolution of 1 arc
4.Tested to 15 kg vertical load.
Code No. | LSSH-100WS |
Platform Size | Ø 100 mm |
Drive Mode | Worm and gear |
adjustment Range: | 360° |
Minimum Scale | 2° |
Minimum Scale reading | 12′ |
Minimum adjustment | 36 " |
Load capacity | 15KG |
Motion parallelism | 30μm |
Motion concentricity | 15μm |
Net Weight | 0.8 kg |
