PVC Extruder PVC Extrudion

FOB Price

USD $1,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port DaLian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Sheet
Plastic Processed	PVC	Screw Design	Double-screw
Automatic Grade	full-automatic	Place of Origin	Liaoning, China
Brand Name	JinZheng	Model Number	JZ1209
Voltage	380KW	Power(W)	50HZ
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

PVC ceiling panel making machine
1 plastify homogeneous
2 shearing speed small
3 output high
4 service life long

plastic extruder
1.Max capacity:700kg/h
2.Screw Diameter:45-188mm
3.Package:Wooden crate
4.Screw Design:Double-screw

PLASTIC EXTRUDER

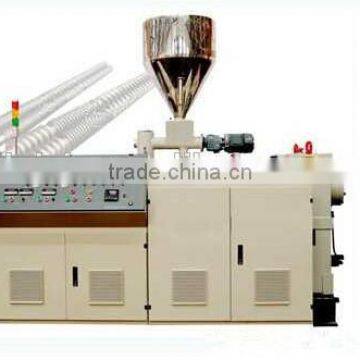

SJZ series conical twin screw extruder is developed by our company is featured by high
output, good plasticization, even agglomeration, stable quality, and life long service.
1.This machine can produce pipes, panels and profiles directly from PVC powder.

2.There are two kinds of electric controlling systems for this extruder, mon control system and computer control system.

3.For chief driving methods, direct current timing and converted frequency control timing are available.

4.The exquisitely designed screw and barrel have perfect plasticization effect.

5.The electric control system adopts the most advanced technology and there is an alarming system for every subsection failure.

6.It is convenient to examine and repair.

7.The high-performance distribution system for torque deceleration is wearable and easy
to maintain.

Main Technical Parameters:

Model	SJZ45	SJZ51	SJZ55	SJZ65	SJZ80	SJZ92
Screw diameter(mm)	45/90	51/105	51/113	65/132	80/156	92/188
Quantity of screw(pcs)	2	2	2	2	2	2
Screw Direction	Opposite Outward Rotation
Speed of screw rotation(r/min)	1-38	1-38	1-38	1-36	1-35	1-34
Length of screw(mm)	985	1015	1195	1430	2080	2460
Structure of screw	Conical Mesh
Motor power(kw)	15	18.5	22	37	55	90
Installation power(kw)	27	31.5	37	65	94	135
Max.capacity(kg/h)	90-120	120-150	150-180	250-300	350-450	450-600
Qquantity of barrel heating(pcs)	4	4	4	4	4	5
Heating	Die-casting aluminum+ceram heating
Centre height of screw(mm)	1000	1000	1000	1000	1000	1100
Weight(kg)	2600	3500	4000	4000	5000	7000
Dimension(LxWxH)(mm)	3360x1090x2127	3620x1050x22157	3620x1050x2215	4235x1520x2450	4750x1550x2460	4810x1600x2650
