plastic screw extruder machine
- 10 Set / Sets per Month
- Dalian
- T/T
You May Like
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Liaoning, China | |
| Brand Name | Jinzheng | Model Number | TJZ045 |
Product Description
Specifications
twin-screw extruder1.Max capacity:700kg/h
2.Screw Diameter:45-188mm
3.Package:Wooden crate

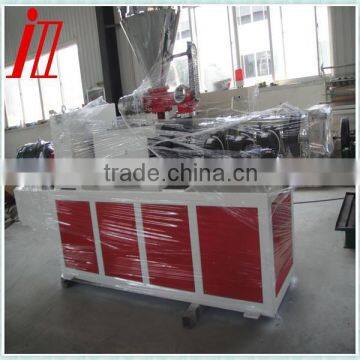

TWIN SCREW EXTRUDER
SJZ series conical twin screw extruder is developed by our company is featured by high
output, good plasticization, even agglomeration, stable quality, and life long service.
1.This machine can produce pipes, panels and profiles directly from PVC powder.
2.There are two kinds of electric controlling systems for this extruder, mon control system and computer control system.
3.For chief driving methods, direct current timing and converted frequency control timing are available.
4.The exquisitely designed screw and barrel have perfect plasticization effect.
5.The electric control system adopts the most advanced technology and there is an alarming system for every subsection failure.
6.It is convenient to examine and repair.
7.The high-performance distribution system for torque deceleration is wearable and easy
to maintain.
Main Technical Parameters:
Model | SJZ45 | SJZ51 | SJZ55 | SJZ65 | SJZ80 | SJZ92 |
Screw diameter(mm) | 45/90 | 51/105 | 51/113 | 65/132 | 80/156 | 92/188 |
Quantity of screw(pcs) | 2 | 2 | 2 | 2 | 2 | 2 |
Screw Direction | Opposite Outward Rotation | |||||
Speed of screw rotation(r/min) | 1-38 | 1-38 | 1-38 | 1-36 | 1-35 | 1-34 |
Length of screw(mm) | 985 | 1015 | 1195 | 1430 | 2080 | 2460 |
Structure of screw | Conical Mesh | |||||
Motor power(kw) | 15 | 18.5 | 22 | 37 | 55 | 90 |
Installation power(kw) | 27 | 31.5 | 37 | 65 | 94 | 135 |
Max.capacity(kg/h) | 90-120 | 120-150 | 150-180 | 250-300 | 350-450 | 450-600 |
Qquantity of barrel heating(pcs) | 4 | 4 | 4 | 4 | 4 | 5 |
Heating | Die-casting aluminum+ceram heating | |||||
Centre height of screw(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1100 |
Weight(kg) | 2600 | 3500 | 4000 | 4000 | 5000 | 7000 |
Dimension(LxWxH)(mm) | 3360x1090x2127 | 3620x1050x22157 | 3620x1050x2215 | 4235x1520x2450 | 4750x1550x2460 | 4810x1600x2650 |
