DuraSeal Heat Shrinkable Crimp Splices Butt Connector Wire Coupler
- Shenzhen
- T/T Credit Card
You May Like
-
Nylon Cable Tie/nylon Expandable Cable Sleeve /cable Ties Nylon
-
Ant-tracking Heat Shrinkable Tube
-
Semi Rigid Heat Shrink Tube/heat Shrink Tubing/automotive Protection
-
Heat Shrink Insulating Tape/bus Bar Protection Tape
-
Heat Shrink Silicone Rubber Tubing/ Medical Rubber Tubing
-
Fiber Splice Optical Protection Sleeve
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dicore | |
| Model Number | DHSCS | Type | Insulator | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 600v | Tensile Strength | 1.40kgf |
Product Description

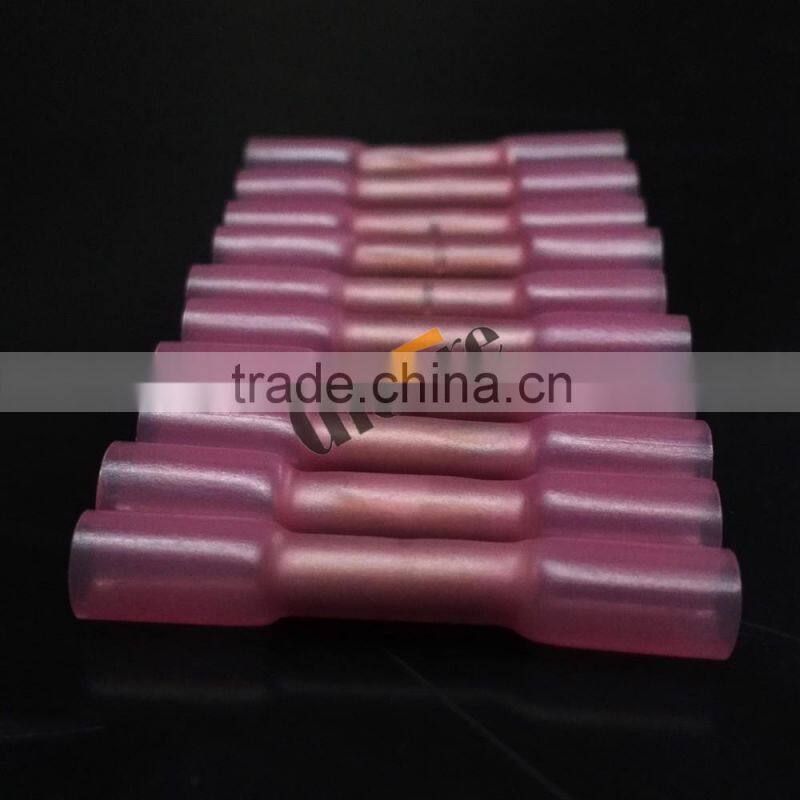

DuraSeal Heat Shrinkable Crimp Splices/butt wire connector/wire adapter/wire coupler
DuraSeal Heat Shrinkable Crimp Splices, Heat Shrinkable Butt Splice Connectors (DHSCS) is made of polyolefin, with adhesive lining for protecting splices from water, condensation, salt, and corrosion. Providing strain relief and against vibration in rugged environments, which completely insulates and protects electrical connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional splices.
Features
>Automotive/truck wiring repair and fleet maintenance
>Automotive/truck/RV wire harness fabrication
>Commercial wiring for pumps, pools and spas
>Fleet maintenance & Marine electronics
Specification
| Part. No | Wire Range | Dimension-(mm) | Insulator | color | package | Approval | |||
| A.W.G. | mm2 | OD | ID | L | Pcs/bag | ||||

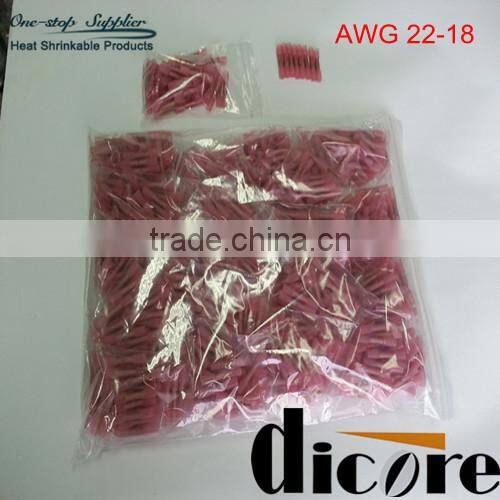

| DHSCS -1 | 22-18 | 0.5-1.0 | 4.8 | 1.7 | 35.0 | PE | Red | 1000 | RoHS |

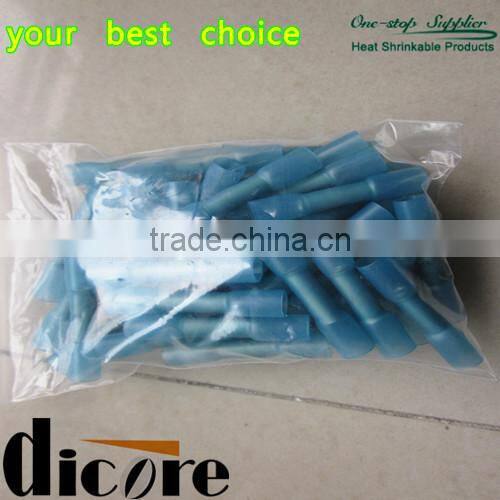

| DHSCS -2 | 16-14 | 1.5-2.5 | 5.8 | 2.4 | 35.0 | PE | Blue | 1000 | RoHS |

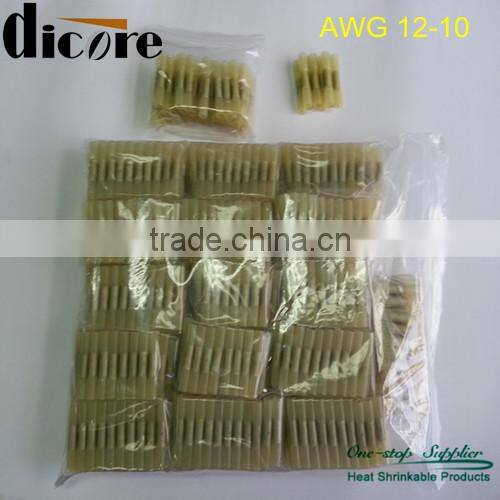

| DHSCS -3 | 12-10 | 4.0-6.0 | 6.8 | 3.6 | 42.0 | PE | Yellow | 800 | RoHS |
Technical Data
Test ltem | Characterisrics | Test condition | |
Un-aged | Tensile strength | Min. 1.40 kgf/ | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 0.99 kgf/ | 158℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Un-aged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of un-aged breakdown voltage | 158℃/7 days | |
Copper corrosion | No corrosion of bare copper | 158℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 158℃/7 days | |
Cold bend | No crack | -30℃/1 hrs | |
Maximum secant modulus(2%) | 17.65 kgf/ | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 250℃/4 hrs | |
