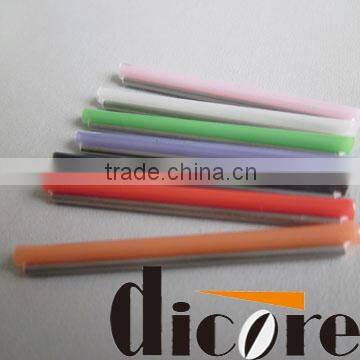

Power Transformer Heat Shrink Fiber Optic Splice Protector

FOB Price

US$ 0.001 - 0.01 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	DICORE
Model Number	HSFP

Power Transformer Heat Shrink Fiber Optic Splice Protector,
ROHS, 60,45,40,25,20,18mm length
Alternative for RAYCHEM SMOUV

Power Transformer Heat Shrink Fiber Optic Splice Protector

Model	HSFP
Type	Single fiber, Ribbon fiber
Material	PE heatshrink tube,fusion tube, 304 steel rod
Length	60,45, 40, 25, 20mm
Tubing outer diameter	3.0, 2.6, 2.4, 2.2, 1.3mm
Steel rod diameter	1.5, 1.2,1.0, 0.8, 0.5mm
Working Temperature	-45 to 110°C
Shrinking temperature range	120°C
Standard color	Clear
Other 12 colors available	White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

Technical Data

Single Fiber(mm)

Model	Splice Protection Sleeves (After Shrinking)		Fusion Tubing		Steel Rod
Model	Outer Diameter (±0.2)	Length (±1)	Inner Diameter (±0.1)	Length (±1)	Outer Diameter (±0.1)	Length (±1)
HSFP-H-61x1.5x3.0	3.0	61	1.5	61	1.5	55
HSFP-H-45x1.5x3.0	3.0	45	1.5	45	1.5	40
HSFP-H-40x1.5x3.0	3.0	40	1.5	40	1.5	35
HSFP-H-25x1.5x3.0	3.0	25	1.5	25	1.5	20
HSFP-H-61x1.0x2.4	2.4	61	1.5	61	1.0	55
HSFP-H-45x1.0x2.4	2.4	45	1.5	45	1.0	40
HSFP-H-40x1.0x2.4	2.4	40	1.5	40	1.0	35
HSFP-H-25x1.0x2.4	2.4	25	1.5	25	1.0	20
HSFP-H-40x0.5x1.3	1.3	40	0.35	40	0.5	40
HSFP-H-25x0.5x1.3	1.3	25	0.35	25	0.5	25
HSFP-H-18x0.5x1.3	1.3	18	0.35	18	0.5	18

Notes: HSFP-H: High quality level(same as Tyco SMOUV)
