Cardboard Horizontal Bailing Press Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, waste paper
Packaging Type	Other, wrapped by film	Packaging Material	Other, wrapped by film
Automatic Grade	Semi-Automatic	Driven Type	Hydraulic
Voltage	200-480V	Power	30KW
Place of Origin	Shanghai, China	Brand Name	JEWEL
Model Number	JPW100F	Weight	10T
Dimension(LWH)	700023502200	Certification	ISO9001:2008,CE,TUV
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

package by stretch film

Product Description

Specifications

Cardboard horizontal bailing press machine
Controlled by PLC
be feeding by windpipe or conveyer belt or manual

Cardboard horizontal bailing press machine

Specification:
1.Horizontal semi auto hydraulic baler without door main used in scrap paper, cardboard, plastic and so on solid scrap material field. It can Satisfy with many different capacity require.
2.PLCcontrol system and easy operation , it Can automatically inspection feed, automatic push bag or manual operate with reminding strapping function . The bale lengths can adjustable, 3. It can feed material by conveyor or air-blower or manual.
4. It is used for printing plant, corrugated case, plastic, Textile industry plant as so on.

Parameter:

model	JPW40F	JPW60F	JPW80F	JPW100F
hydraulic power	40 Ton	60Ton	80Ton	100Ton
Bale size(WHL)	720720500-1300mm	850750500-1600mm	1000800500-1800mm	*11001100500-1800mm*
Feed opening size (L*W)	1000*720mm	1200*750mm	1400*1000mm	*16001100mm**
bale weight	150-300kg/bale	200-400kg/bale	300-500kg/bale	600-800kg/bale
Bale density	250-350kg/m3	300-400 kg/m3	400-500 kg/m3	400-800 kg/m3
capability	0.5-1T/H	1-1.5T/H	1.2-2.4T/H	1.6-3.2T
bale line	4lines	4lines	4lines	5lines
Out-bale way	Continuously push bag	Continuously push bag	Continuously push bag	Continuously push bag
power	11KW/15HP	15KW/20HP	22KW/30HP	30KW/40HP

Machine parts

HYDRAULIC TECHNIQUE	REXROTH (Germany TECHNIQUE)
HYDRAULIC ELEMENTS	YUTIEN,HYDOR (TAIWAN Brand)
SEALING PARTS	HALLET(UK brand)
ELECTICAL ELEMENTS	DELIXI(Europe brand )
OIL PIPE	ZMTE(Europe brand)
MOTOR	JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and energy saving, safe and reliable
PUMP	JINGGONG( Taiwan investment) above 50T DAZONG(Germany investment)below 40T

Contact information:

Sharon Peng

JIAJING (JIABAO) MACHINERY CO., LTD.

Add.: 909 Room, No.6 Building, No.1323 WanRong Road, Shanghai, China

Mob: +86 13918563449

Skype: sharonpxy

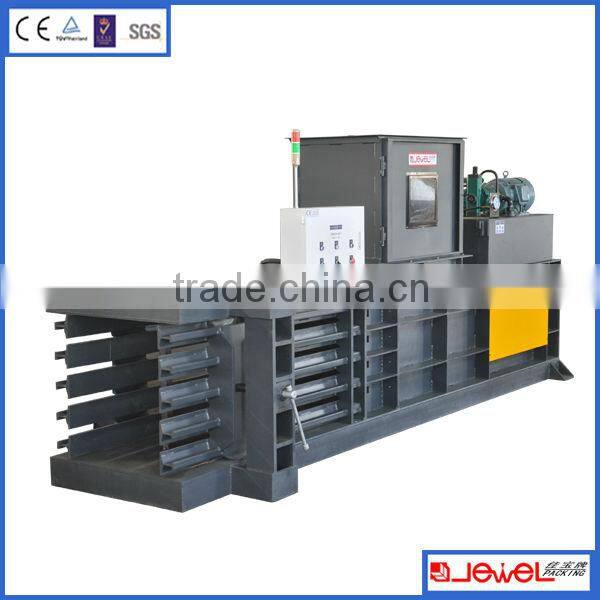

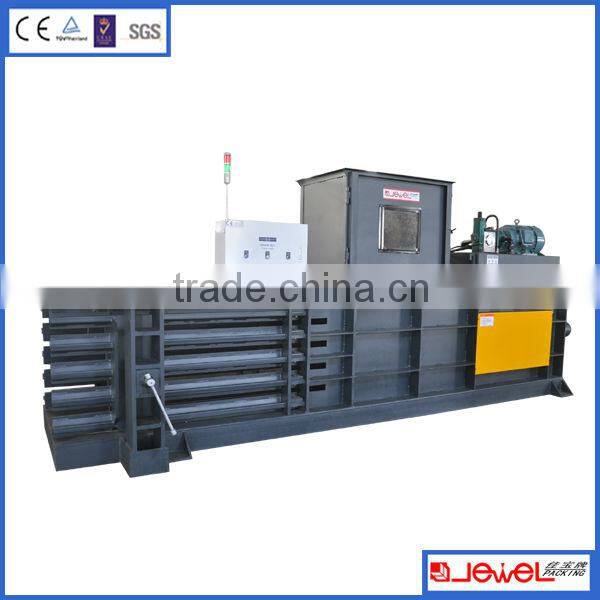

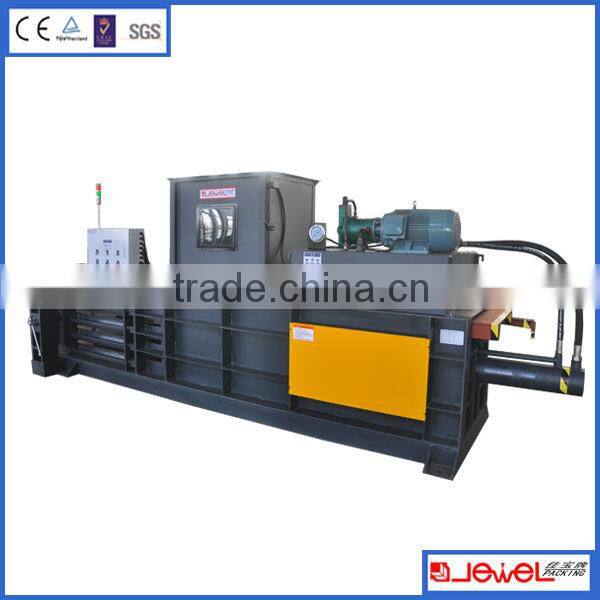

machine appearance:

our certification:

our factory:

Company Profile

Shanghai Jiajing Machinery Co., Ltd.

Shanghai Jiajing Machinery Co., Ltd. specializes in the designing, manufacturing and distribution of packaging machines, packaging materials and hydraulic machines. We have excellent engineers and technicians in R&D department. We have factories in Shanghai City and Nantong City. These factories can manufacture more than thousands sets of hydraulic machines. With adopted modem management experience and the advantages of technique, some products of our company have been exported to Japan, Europe and America. We can provide high quality and professional services to our customers. Our environmentally friendly machines can make live the garbage, industry garbage, and attain the classification with compress to handle, protect the living environment, and reduce the conveyance cost. They are societies to develop, and the business enterprise reduces conveyance with warehouse space of essential equipment. Now current supply is short of demand in Euro-American markets, so these products have great development space. The price of my company has strong competition ability in abroad markets. We sincerely welcome all clients to contact us.
