Home > Products > 1.To handle Paper series > High Quality Cardboard Baler Horizontal Baler Automatic Baler,cardboard Baler,carton Press Machine
High Quality Cardboard Baler Horizontal Baler Automatic Baler,cardboard Baler,carton Press Machine
- shanghai

You May Like
Product Details
| Condition | New | Type | Other | |
| Computerized | Yes | Place of Origin | Shanghai, China | |
| Brand Name | JEWEL | Model Number | JPW100QT/JPW120QT/JPW150QT | |
| Voltage | customized | Power(W) | 45-60KW/ 60-75KW/ 75-90KW | |
| Dimension(L*W*H) | different | Weight | different | |
| Certification | CE, SGS, TUV,ISO | Warranty | 1 YEAR, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Outside package: standard export wooden cases
Inner package: stretch film.
Product Description
High quality cardboard baler horizontal baler automatic baler,cardboard baler,carton press machine
- 19 years Manufacturer
 - ISO9001:2008.TUV.SGS.CE
 - Serviced 2000 famous enterprise 98 countries
 - First-class after sale service
 - Machine life:15 years
 - Quality standard:the European and American
 - Size,Color can be customized
 - JEWEL Brand
 - All sealing parts imported
 - Can provide all kinds of iron

PP PE FILM,Corrugted Carton,Sugarcane Bagasse,Corrugted Carton Press Machine

Specification
1. Fully automatic compress and baling, suitable for large amount material places, after baling it is easy store and reduce the transportation cost.
2. Unique automatic strapping device, speed quickly, frame simple, motion steady. Failure rate is low and easy to clean maintenance.
3. Can choose transmission line materials and air-blower Feeding. Suitable to waste cardboard recycling companies, plastic,fabric large garbage disposal sites and so on.
More Parameter
Model  | JPW40QT  | JPW60QT  | JPW80QT  |
Hydraulic power  | 40Ton  | 60Ton  | 80Ton  |
Bale size(W*H*L)  | 720*720*300-1600mm  | 850*750*300-1800mm  | 1100*800*300-2000mm  |
Feed opening size(L *W)  | 1000*720mm  | 1200*750mm  | 1500*800mm)  |
Bale density  | 300Kg/m3  | 350Kg/m3  | 400Kg/m3  |
Bale line  | 4Line  | 4Line  | 4Line  |
Capability  | 1-3T/hour  | 2-4T/hour  | 4-7T/hour  |
Power  | 18-22KW/25-30HP  | 22-30KW/30-40HP  | 30-45KW/40-60HP  |
Machine weight  | About 8Ton  | About 10Ton  | About 13Ton  |
Model  | JPW100QT  | JPW120QT  | JPW150QT  |
Hydraulic power  | 100Ton  | 120Ton  | 150Ton  |
Bale size(W*H*L)  | 1000*1000*300-2100mm  | 1100*1100*300-2100mm  | 1100*1100*300-2100mm  |
Feed opening size(L*W)  | 1800*1000mm  | 2000*1100mm  | 2400*1100mm  |
Bale density  | 500Kg/m3  | 600Kg/m3  | 700Kg/m3  |
Bale line  | 5Line  | 5Line  | 5Line  |
Capability  | 8-10T/hour  | 9-12T/hour  | 12-15T/hour  |
Power  | 45-60KW/60-80HP  | 60-75KW/80-100HP  | 75-90KW/100-120HP  |
Machine weight  | About 17Ton  | About18 Ton  | About 23Ton  |
Crucial components allocation
More than 80Tons
Hydraulic elements  | YUKEN (Japan brand)  |
Sealing parts  | HALLET (UK brand)  |
PLC control system  | Mitsubishi (Japan brand)  |
Touch screen  | WEINVIEW (Taiwan brand)  |
Inductor  | Omron (Japan brand)  |
Electrical appliance  | SCHNEIDER (France brand)  |
Cooling system  | LIANGKEN(Taiwan brand)  |
Pump  | HENGYUAN (Taiwan brand)  |
Oil pipe  | ZMTE (America & China investment brand)  |
Bearing  | NSK (Japan brand)  |
Motor  | JIABAO (customized brand)  |
More Picture

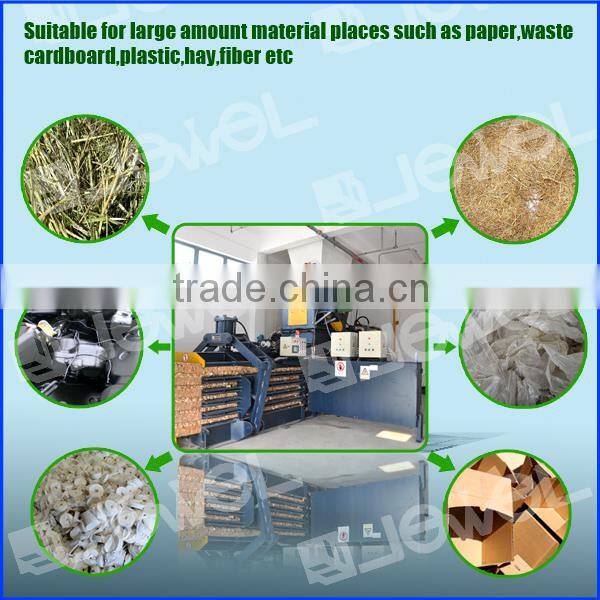

Product Application

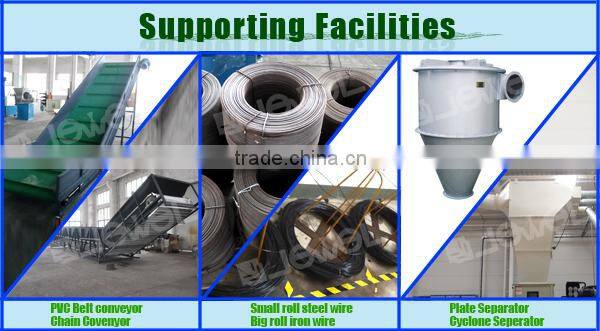

Supporting Facilities
Our Clients
Video
Bangladesh custom to compress cardboard
video : /v_show/id_XNzA5NjcyODc2.html
Packing

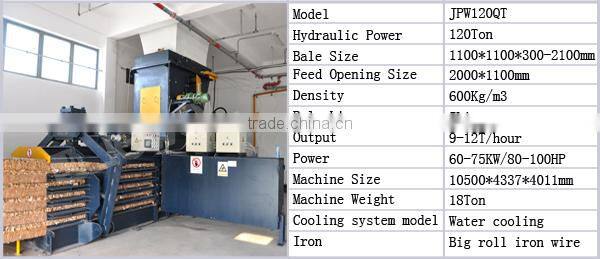

JPW120QT packing: Stretch film By 40HQ FCL
Some Factory Equipments
Certification
Introduction about us
Our company is the professional production factory of hydraulic baling press (compressed) machine, which has nearly 20 years experience in this field, and have been exported more than 90 countries.
After many years technology research and development , we have obtained 21 national patents and 3 invention patents, and we have the rights of self-management import and export , No need the agent and the third party platform, that can save the customer's cost and time.
At the same time, especially in equipment parts supply after clients use and the good after-sales service ,we have strong guarantee about this , hope you could pay attention about our company , thank you.
Q:Who we are
A:We are specializes in the designing, manufacturing and distribution of packaging machines, packaging materials and hydraulic machines with 19 years' rich experience professional manufacturer.
Q: How about our product quality
A:1)Quality Control is put in the core position of our production.
    2)We have modern and standard manufacturing plant, advanced production equipment and rigorous quality management system which make us a comprehensive enterprise that collects designing, manufacturing, sale and service at the same time
3)We have passed through CE ,SGS ,TUV,ISO
Q:Where do we export
A:We have already established long term business with many famous foreign
machinery enterprise ,we have serviced more than 2000 famous enterprise now have gained well reputation from our clients that spread about 98 countries
Q: How long is our machine life?
A: 15 years is ok if have good maintain, our hydraulic technique cooperates with germany directly
Our service
- Warranty:12 months.
 - Engineers available to service machinery overseas.
 - 24 hours technical support by e-mail & Tel.

All Of Our Products Passed Strict Quality Inspection
We Will Offer You Best Quality Best Service As19 Years Professional Hydraulic Baler Manufacturer
Vertical hydraulic baler series , Horizontal hydraulic baler series , Hydraulic metal baler series link ,Kindly click the pictures will show you details



Company Profile
                    Shanghai Jiajing Machinery Co., Ltd. specializes in the designing, manufacturing and distribution of packaging machines, packaging materials and hydraulic machines. We have excellent engineers and technicians in R&D department. We have factories in Shanghai City and Nantong City. These factories can manufacture more than thousands sets of hydraulic machines. With adopted modem management experience and the advantages of technique, some products of our company have been exported to Japan, Europe and America. We can provide high quality and professional services to our customers. Our environmentally friendly machines can make live the garbage, industry garbage, and attain the classification with compress to handle, protect the living environment, and reduce the conveyance cost. They are societies to develop, and the business enterprise reduces conveyance with warehouse space of essential equipment. Now current supply is short of demand in Euro-American markets, so these products have great development space. The price of my company has strong competition ability in abroad markets. We sincerely welcome all clients to contact us.
