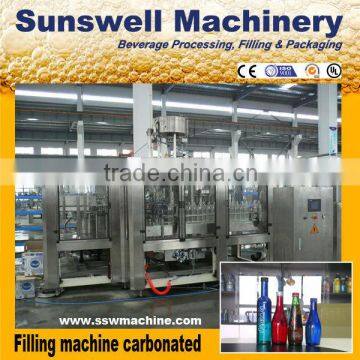

Automatic machine for carbonated /carbonating soft drinks in glass bottle

Specifications

1.  Automatic machine for carbonated /carbonating soft drinks in glass bottle   flow chart

DXFG series is special for carbonated drink filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling juice beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.

the output can reach 30000bph for this machine

the output range is 2000-30000bph

with gripper technology, very easy to change your bottle style.

2. Techncal details of  Automatic machine for carbonated /carbonating soft drinks in glass bottle

2.1.Bottle infeed

2.2. Rinser

2.3. Filler

2.4. capper

Base

Rotary rinser

Rotary filler

Rotary capper

Bottle infeed and outfeed system

Controlling cabinet

main components

1) Material of filling valve: Stainless steel SUS316L.

2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.

3) Main motor: ABB/SEW.

4) Sliding bearing: Igus.

5) Frequency inverter: Mitsubishi.

6) Touch screen: PROFACE.

7) PLC: Mitsubishi.

8) Pneumatic components: FESTO.

9) Seals: Busak+Shamban.

3. Model of  Automatic machine for carbonated /carbonating soft drinks in glass bottle
