Big bags filling machine
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Food | |
| Packaging Type | Cans | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 4.8KW | Place of Origin | Shanghai, China | |
| Brand Name | TOPSPACK | Model Number | TP-PF-B11 |
Product Description
Specifications
1.Sold to many countries2.High performance and low price
3.Easy operated
4.High efficiency,high accuracy

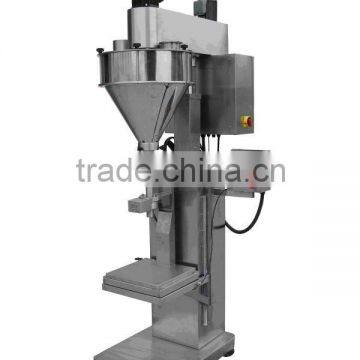

Big bags filling machine
General Description:
This model is designed specially for the fine powder which easily to spout dust and high-accuracy packing requirement .Based on the feedback sign given by below weight sensor, this machine do measuring,. two-filling , and up-down work ,etc. It is specially suitable for filling carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.
Main Parameter:
Measuring mode | Auger weighing & filling machine with two fillers |
Packaging weight | 100g - 10kg |
Packaging accuracy | 100-1000g , ≤±2g; ≥1000g,≤±0.1-0.2% |
Filling rate | 5 - 30 times/min |
Power supply | 3Phase 240V 50Hz |
Total power | 2.2 kw |
Total weight | 350 kg |
Total dimensions | 1000×850×2300mm |
Hopper volume | 50L |
Main Features:
- Weight sensor is below the tray, to do fast filling and slow filling based on the pre-set weight, to guarantee the high packaging accuracy.
- Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
- With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
- PLC control, touch screen display, easy to operate.
- Made of stainless steel 304, combined hopper, easily to be cleaned.
- With handwheel to adjust the height , easy to fill many kinds of weight.
- With fixed screw installation, the material quality won’t be effected.
Work Procedure : put bag on the machine → bag raise → fast filling & bag declines → weight reaches the pre-set number → slow filling → weight reaches the goal number → take the bag away manually
