Topspack 1-50KG Powder Bag Filling Packing Machine

1. Application

Tops-Group specilize in powder processing filling packing machines.

TP-PF-B12 Filling Machine is able to fill powder or small granule into bags in high accuracy. This machine control filling amount by a unibody lathed auger and a on-line weigher, which combines volumetric measuring with weight measuring. The filling accuracy is greatly improved.

There are dust remover, powder feeder,bag holder and etc device are available. We also make related machines such as bag sealer bag sewer, powder feeder, works in high effeciency.

2. Characteristics

1. When filling, the bag stands on an online weight sensor, The PLC will adjust the filling speed according to the weight given by sensor, which greatly improves the filling accuracy.

2. The servo motor drives the platform moving, the filling speed is adjustable, no dust will come out with remover.

3. The filling auger is driven by servo motor, working stable and fills in high accuracy.

4. PLC and touch screen controlling system, easy to operate.

5. All stainless steel 304 material, quick-disconnection hopper, easy to clean and keep tidy.

6. The height of auger filling head could be adjustable by rolling wheel, suitable for different bag size.

7. The auger is fixed tightly, won’t affect the character of material.

8. Working process: manual put on the bags and bottles → container lifting → quick filling, container falling down → filling weight near to exception → slow filling → filling weight to exception → take out container.

9. Pneumatic device and other option device is available to suit different bags.

3. Parameters

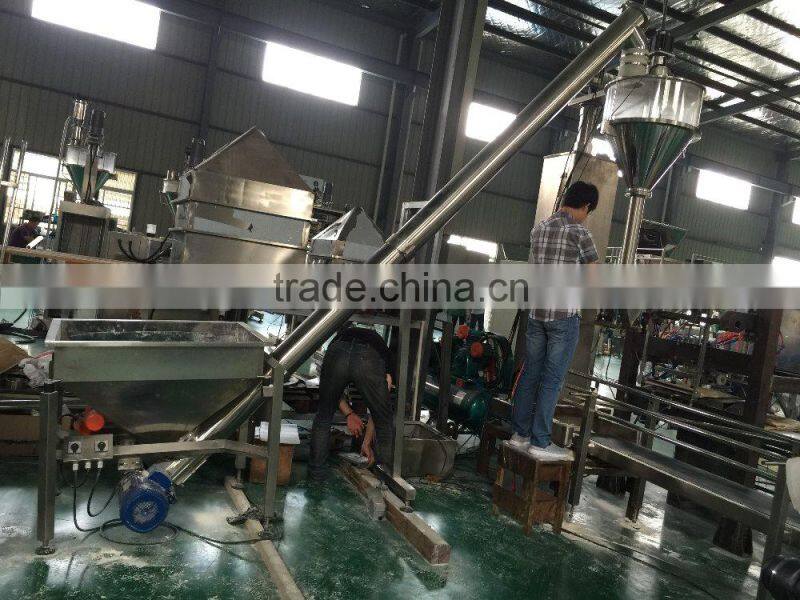

4. Machines in Factory

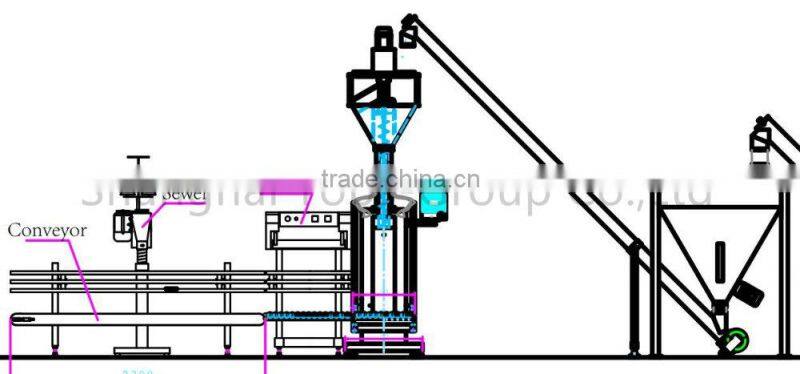

Powder Mixer + Conveyor + Dump Bin + Powder Filler + Bag Sealer + Bag Sewer + Conveyor

Powder Filler + Automatic Bag Holder + Screw Feeder

5. Customers

Our customers are worldwide spread in

USA, Canada, Agentina, Peru, Chile,

UK, Sweden, Germany, France, Spain, Czech, Neitherlands, Ukrain,

Turnish, Benin, Ethiopia, Mauritius,

Australia, New Zealand, South Korea, Singapore, Malasia, and etc.

6. FAQ

 •   I'm not sure if this machine can deal with our product?

Products like this will be OK: dry powder, small granule diameter less than 5mm, free-flowing, non-wet, non-sticky, non-fragile.

 •   My capacity is small, any other options?

We have semi-automatic types for choice, with smaller capacity and lower cost

 •  My container is heavier than 10kg / lighter than 1kg, any options?

This is not problem, kindly tell us the weight and picture of your product in inquiry, we could customized one for you.

 •  Is there any spare parts?

Spare parts when there is big weight range/ special powder characteristics / special containter / high accuracy request / etc..

 •  As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?

The machines are test without problem before shipping. Just connect to power the machine will work.We will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary in reasonable price.

 •  Are you a factory or agent?

We are an OEM, we always design and manufacture our products ourselves,so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time you like.

 •  How does your factory do regarding quality control?

Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process. Quality control department specially responsible for quality checking in each process.

Topspack---

a reliable powder filling packing machine manufacter.

 To get professional service for your packing solution, just send us an inquiry below.
