Spice Powder Packing Machine
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Food, Commodity, Other, Food, Commodity, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 3P AC208-415V 50/60HZ | Power | 1.6kw | |
| Place of Origin | Shanghai, China | Brand Name | TOPSPACK | |
| Model Number | TP-PF-A22 | Dimension(L*W*H) | 2000x970x2300mm | |
| Weight | 300kg | Certification | CE SGS Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic Powder Packaging Machine1,CE certificate
2,Material:SUS304
3,High Filling Precision
4,Touch screem control

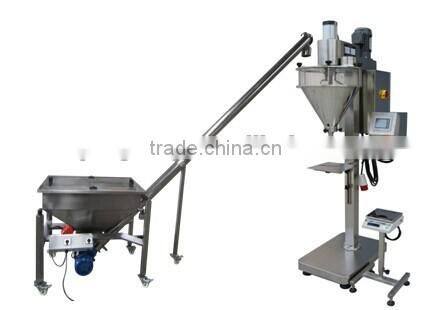

Automatic Powder Packaging Machine, Auger Filler
Descriptive abstract

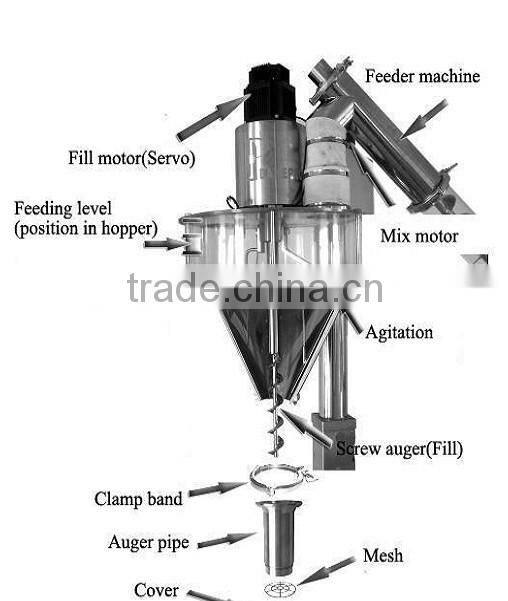

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features

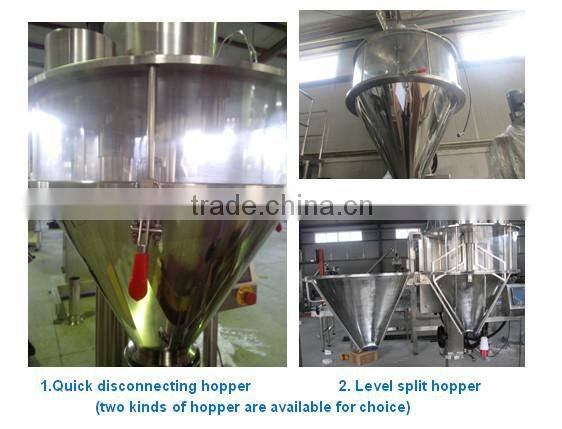

Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most

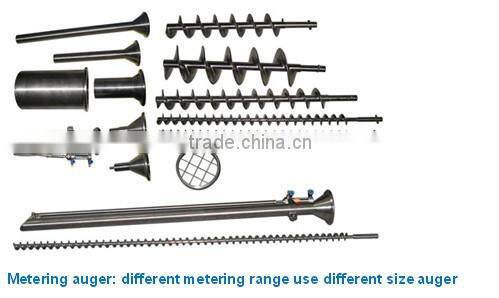

Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical parameter
Model | TP-PF-A21 |
Dosing mode | Directly dosing by auger |
Filling weight | 10 – 5000g |
Filling Accuracy | ≤ 500g, ≤±1%; >500g, ≤±0.5% |
Filling Speed | 15 – 40 bottles per min |
Power Supply | 3P AC208 - 415V 50/60Hz |
Air Supply | 6 kg/cm2 0.05m3/min |
Total power | 1.6Kw |
Total Weight | 300kg |
Overall Dimensions | 2000×970×2030mm |
Hopper Volume | 45L(Enlarged size 65L) |
Configuration List:
No. | Name | Specification | Pro. | Brand |
1 | Stainless steel | SUS304 | China | |
2 | Touch Screen |
| Taiwan | Panasonic |
3 | Servo motor | TSB13102B-3NHA | Taiwan | TECO |
4 | Servo driver | ESDA40C-TSB152B27T | Taiwan | TECO |
5 | Agitator motor | 0.4kw,1:30 | Taiwan | CPG |
6 | Switch |
| Shanghai |
|
7 | Emergency switch |
|
| Schneider |
8 | Filter |
|
| Schneider |
9 | Contactor |
| Wenzhou | CHINT |
10 | Hot relay |
| Wenzhou | CHINT |
11 | Fuse seat | RT14 | Shanghai |
|
12 | Fuse | RT14 | Shanghai |
|
13 | Relay |
|
| Omron |
14 | Switching power supply |
| Changzhou | Chenglian |
15 | Proximity switch | BR100-DDT | Korea | Autonics |
16 | Level sensor |
| Korea | Autonics |
Accessory tools : |
|
|
| |
No. | Name | Quntity |
| Remark |
1 | Spanner | 2pcs | ||
2 | Spanner | 1set | ||
3 | Slotted screwdriver | 2pcs | ||
4 | Phillips screwdriver | 2pcs | ||
5 | User manual | 1pcs | ||
6 | Packing list | 1pcs | ||
