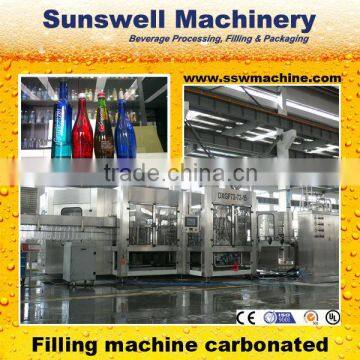

glass bottle filler capper monoblock
- 30 Set / Sets per Month
- shanghai
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 380v | Power | 3kw | |
| Place of Origin | China | Brand Name | sunswell | |
| Model Number | DXGF | Dimension(L*W*H) | 2500 2700 X2300 | |
| Weight | 3000KG | Certification | CE UL | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
glass bottle filler capper monoblockCE UL certificated
ISO 9000
S/S 304 And contact part S/S 316 fabricated
1. glass bottle filler capper monoblock flow chart
DXFG series is special for carbonated drink filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling juice beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
the output can reach 30000bph for this machine
the output range is 2000-30000bph
with gripper technology, very easy to change your bottle style.
2. Techncal details of glass bottle filler capper monoblock
2.1.Bottle infeed
2.2. Rinser
2.3. Filler
2.4. capper
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Controlling cabinet
main components
1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: ABB/SEW.
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: PROFACE.
7) PLC: Mitsubishi.
8) Pneumatic components: FESTO.
9) Seals: Busak+Shamban.
3. Model of glass bottle filler capper monoblock
Model | Working capacity |
DXGFD14-12-5 | 2,000BPH |
DXGF18-18-6 | 4,000BPH |
DXGF24-24-6 | 6,000BPH |
DXGF24-32-6 | 9,000BPH |
DXGFH40-40-10 | 12,000BPH |
DXGFH50-50-12 | 18,000BPH |
