1 Color 4 Stations Rotary Screen Printing Machine

1 color 4 stations rotary screen printing machine

Application

It is suitable for printing small area different materials flat items such as textile mouse pad,plastic sheet,pvc card,pet/pe film,glass sheet,metal/aluminum plate,acrylic....etc

Features

1. IC with touch panel program action programming
2. Aluminum casting body with metal coating
3. Auto 4-digit counter, calculate printing quantity
4. Double pillar up/dowm struture, making sure precision and stable
5. Transverse stroke can be adjusted, using Taiwan sensor to limit
6. Squeegee, flood bar can set as any angle
7. Squeegee constant pressure, keeping printing pressure stable
8. T-slot worktable, convenient to install jig
9. Installing CEC buffer, making sure printing stable
10. Action mode: Auto semi-auto manual
11. Start up: Panel pedal
12. Squeegee pressure control: Pressure regulating valve
13. Vertical driven: Pneumatic     Transverse driven: Electronic

14.Rotary worktable turn 360degrees for loading/unloading more convenient.

15.Install 4 or 2 workstations on worktable,distance between every stations by precision segmentation

Technical Parameter

Max printing size:150*250mm

Worktable size: 130*230mm

Transverse Stroke: 400mm

Vvertical stroke: 100mm

Rotary table diameter: 400mm

Max height of products: 50mm

Rotary workstations: 2 or 4 pcs can be choosing

Power: 220V 50HZ
Air pressure: 5-7 Bar
Printing workstation: 4 pcs
Max printing speed: 1000-1200pcs/hour
Machine size: 850*850*1200mm

Machine weight: 210KG

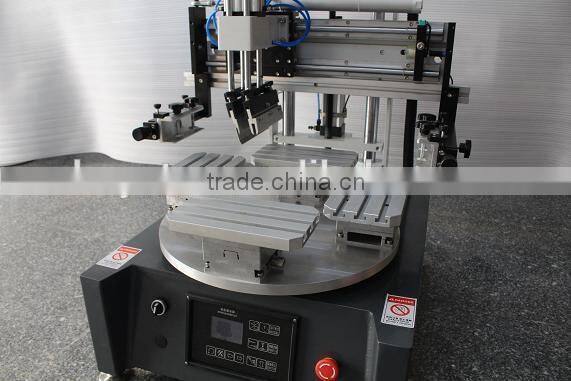

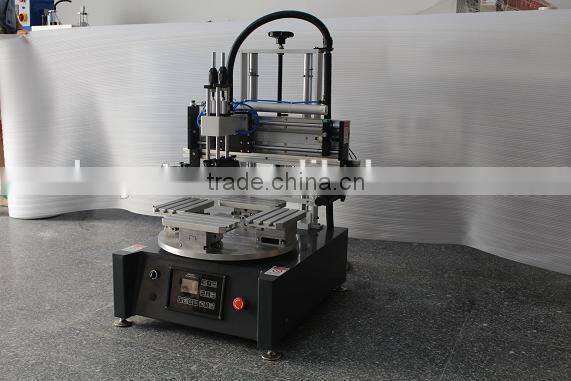

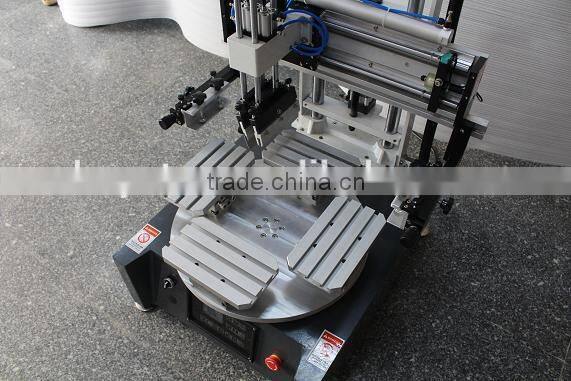

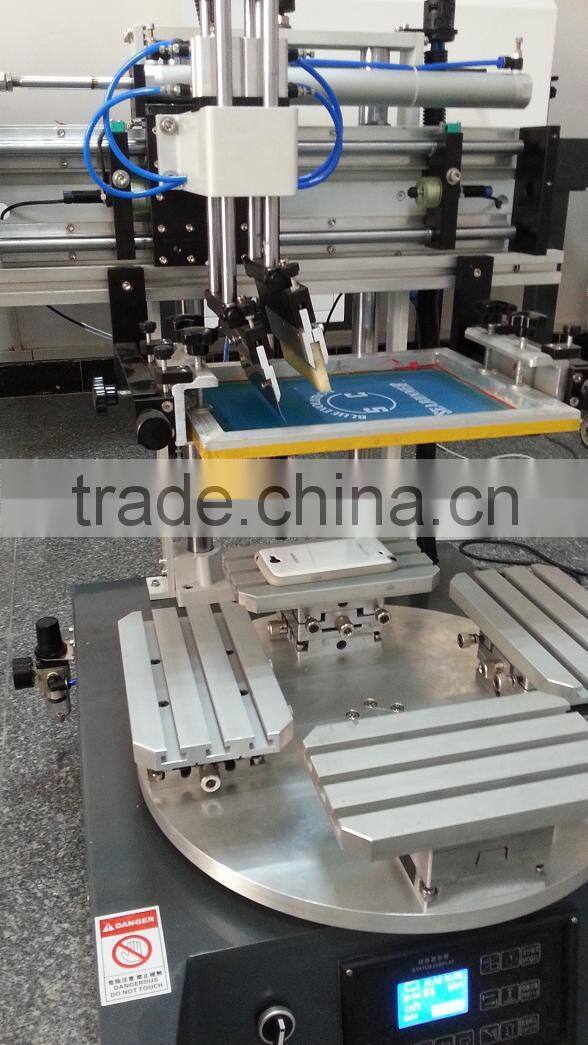

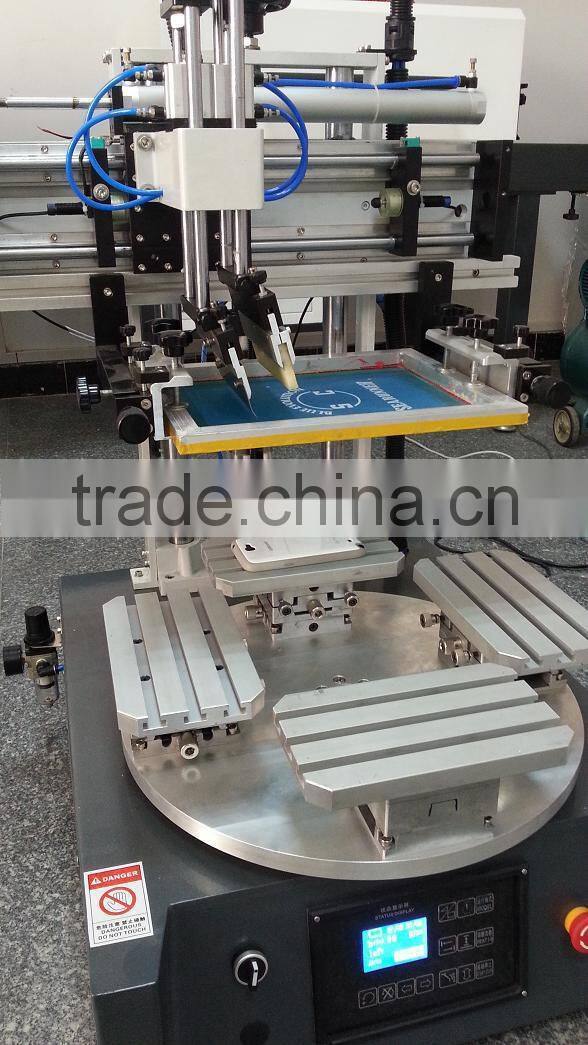

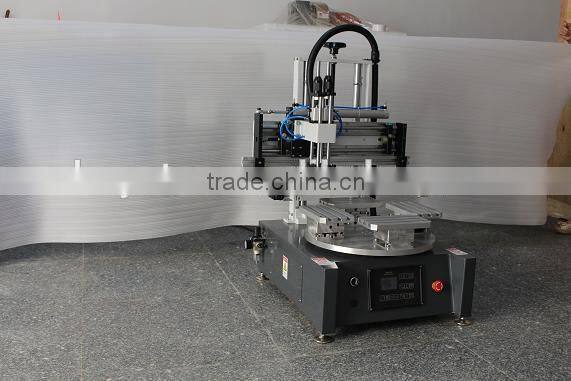

Actual pictures
