Desktop cd Screen Printing Machine With Vacuum Worktable

Desktop cd screen printing machine with vacuum worktable

Application

It is suitable for printing different material flat items such as paper/textile bag,mosue pad,glass,aluminum/metal board,PCB circuit board,plastic film,pp/pet/pc/pvc sheet,warning sign,keyboard,ceramic tile,leather bag,medical box,aluminum box,wooden board,arylic board,carton sheet.....and so on

Feature

1.Microsoft computer program controller,Auto 4-digit counter built-in
2.Airframe adopts coin alloy,and metal coating surface
3.Printing head stroke moving left/right,up/down control by pneumatic cylinders.
4.Install scraper constant perssure equipment to make sure pressure steady.Scraper angle and reclaim blade can be adjusted.
5.Worktable can be adjusted forth/back or left/right and fastening.
6.Screen frame can be adjusted back and forth,right and left or level orientation
7.Vacuum adsorption products on table to make printing presicion.
8.Machine install absorbers to make machine working steady don't shaken.

Technical Parameter

1.Max printing area: 200*300mm
2.Max printing speed:1200pcs/hr
3.Power: 220V 50HZ
4.Work-table area: 250*400MM
5.Max.sreen frame size: 300*500MM
6.Max.height of printed products: 100MM
7.Machine net weight:73KG
8.Vertical stroke:160mm
9.Transeversa stroke:350mm
10.Machine size:700*750*850mm
11.Package size: 830*740*1010mm

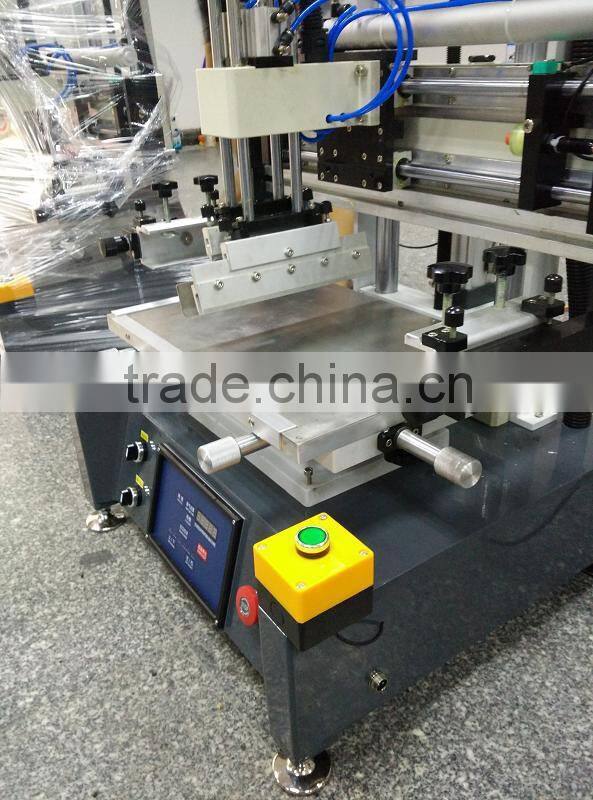

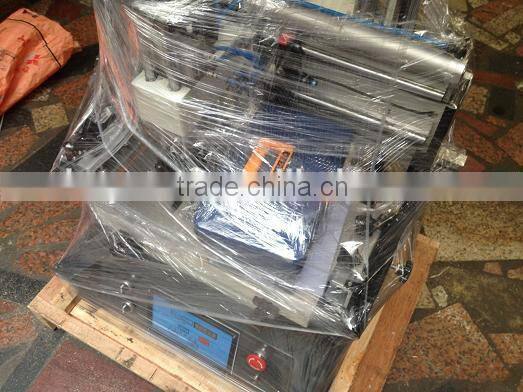

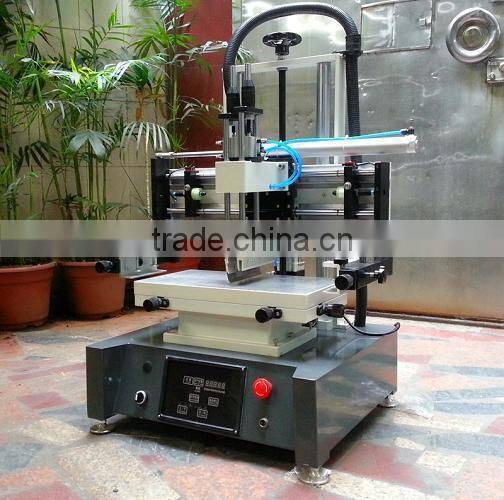

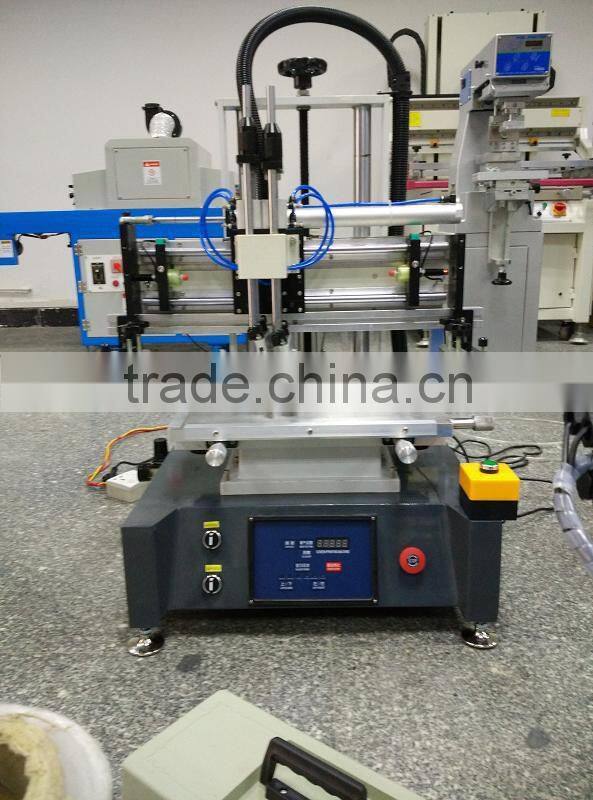

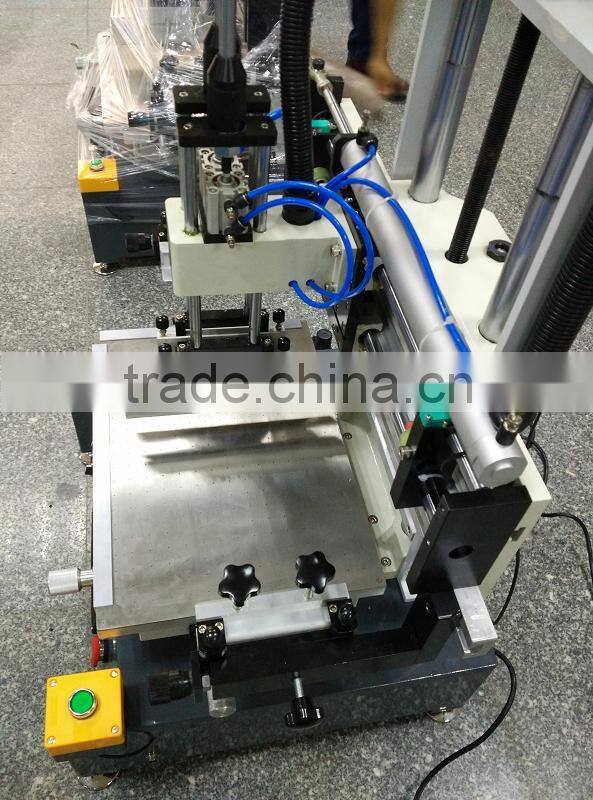

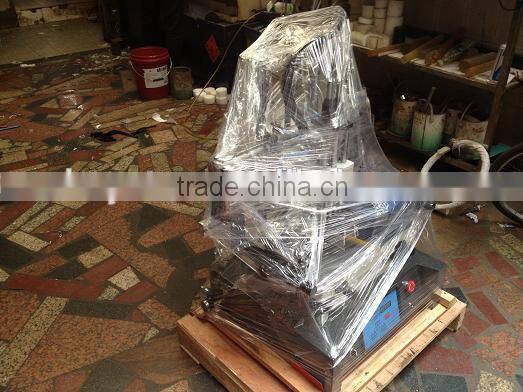

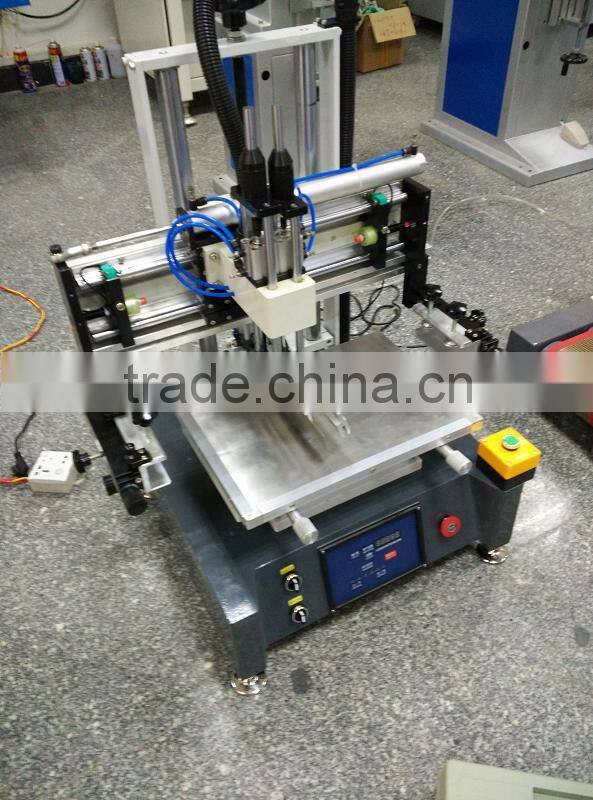

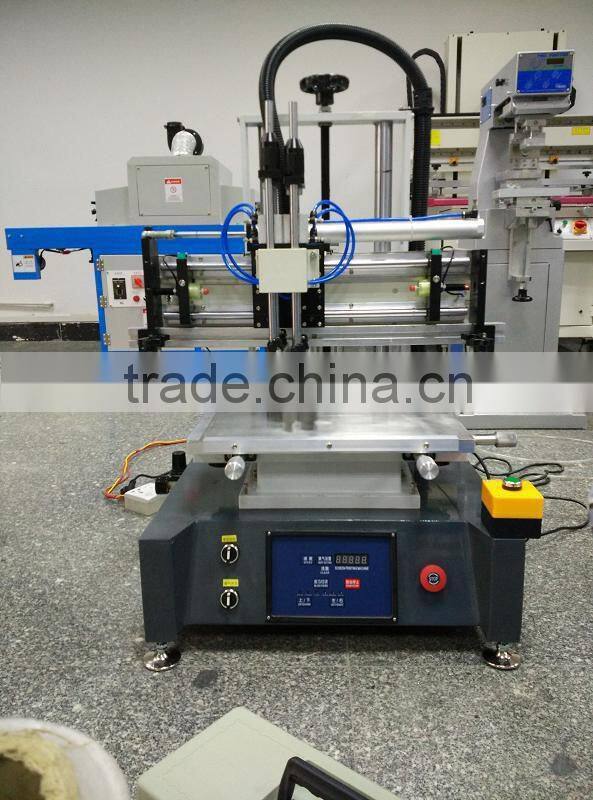

Machine pictures
