T Slot Flat Screen Printing Machine

T slot flat screen printing machine

Application

Application

It is suitable for printing different material flat items such as paper/textile bag,mosue pad,glass,aluminum/metal board,PCB circuit board,plastic film,pp/pet/pc/pvc sheet,warning sign,keyboard,ceramic tile,leather bag,medical box,aluminum box,wooden board,arylic board,carton sheet.....and so on

Feature

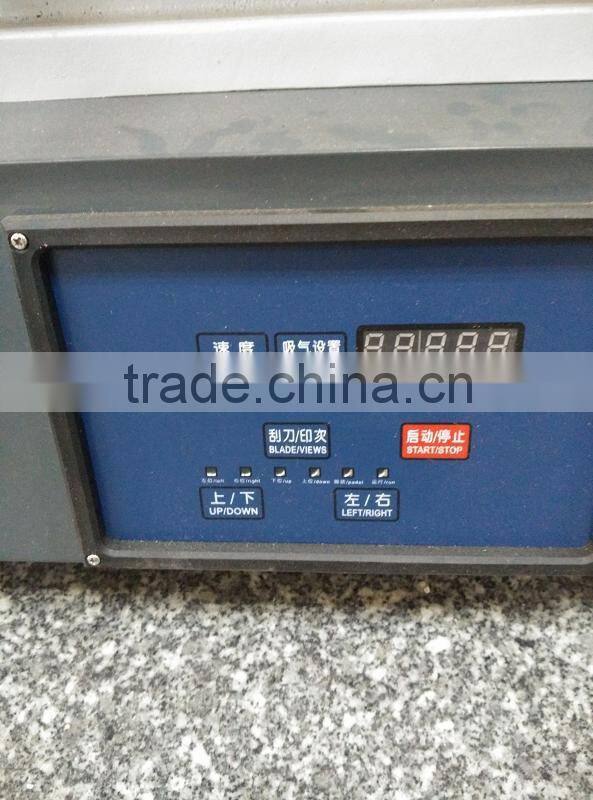

1.Microsoft computer program controller,Auto 4-digit counter built-in
2.Airframe adopts coin alloy,and metal coating surface
3.Printing head stroke moving left/right,up/down control by pneumatic cylinders.
4.Install scraper constant perssure equipment to make sure pressure steady.Scraper angle and reclaim blade can be adjusted.
5.Worktable can be adjusted forth/back or left/right and fastening.
6.Screen frame can be adjusted back and forth,right and left or level orientation

Technical Parameter

1.Max printing area: 200*300mm
2.Max printing speed:1200pcs/hr
3.Power: 220V 50HZ
4.Work-table area: 250*400MM
5.Max.sreen frame size: 300*500MM
6.Max.height of printed products: 100MM
7.Machine net weight:75KG
8.Vertical stroke:160mm
9.Transeversa stroke:350mm
10.Machine size:700*750*850mm
11.Package size: 830*740*1010mm

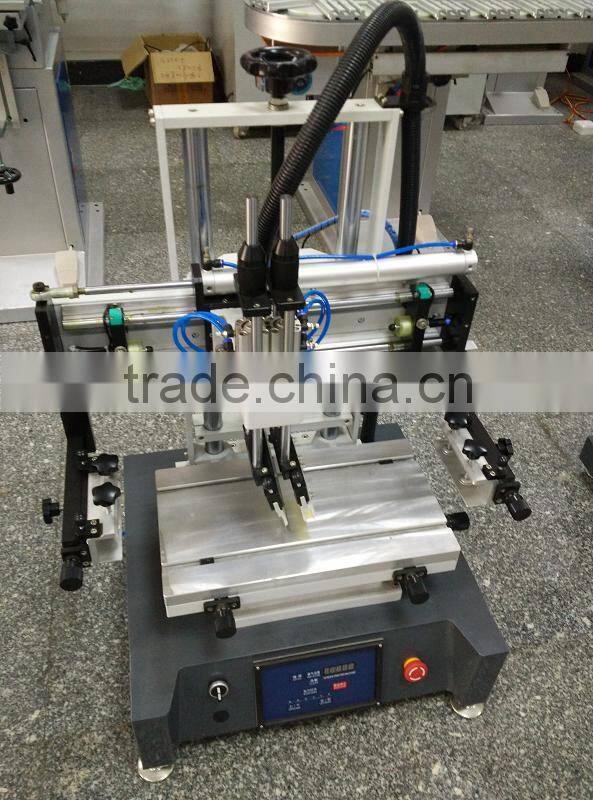

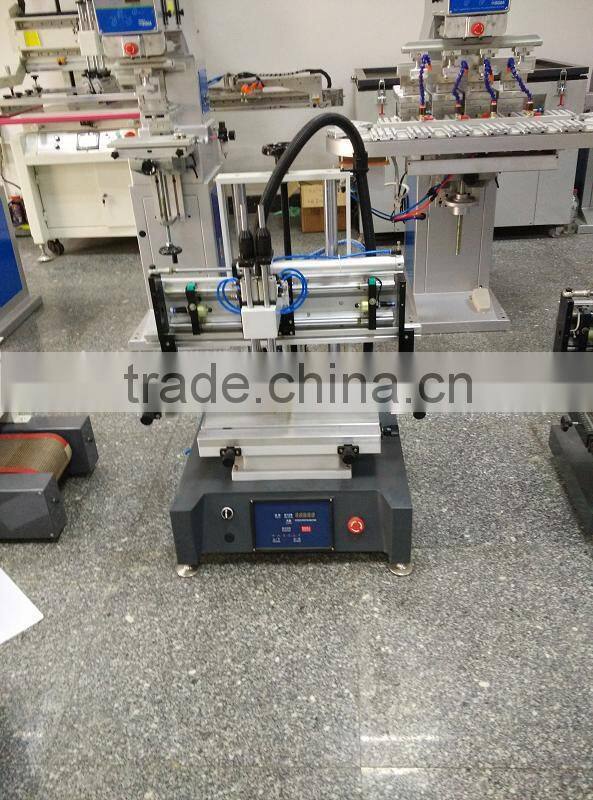

Machine pictures
