GW-M6/S 6 Color Soft Helmet Pad Printing Machine With Shuttle Belt

GW-M6/S 6 color soft helmet pad printing machine with shuttle belt

Application:

It is suitable for printing any color logo on irregular different material shape for example promotional items includes pen,cup,mug,calculator,mouse,keyboard,keyring,keychain,pencil,golf ball,usb,lighter,save energy light cover,web camera,head voice,plate,toy,trophy,fans,rubbish bucket......and so on.

Advantages of:

1.Shuttle level running worktable,can put products on it to print 6 color one time.It can registration color by machine automatic printing

2.Steel plate with open ink tray long distance system,can print bigger image area.

3.Worktable distance can adjustment up/down by your needs and products size.

4.Pneumatic automatic printing,can running steadily.

5.Printing distance up/down,left/right can adjustment according to your needs and products size.

6.With digital panel and foot switch,more safety.

7.Open ink tray system,easy to clean and install.

Function:

1. SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. printing head is controlled by double air cylinders,enough pressure,and balanced
12. Unique machine body hold-up design,it is convenient to adjust machine and change steel plate.
13. it has the function of forbiding the pad fallen when no air pressure enter into
14.The machine is running fastly,it is steady and low voice
15.installing cold air system

Technical parameter:

1.Steel plate size:100*200mm

2.Max.printing area:800-1000PCS/Hr

3.Power:220V/110V 50-60MHZ | 30W

4.Air pressure:5-7bar

5.Max.printing area:80*170mm

6.Printing workstation: 1PC

7.Machine dimension:100*960*1500(mm)
8.Machine Weight:280kg

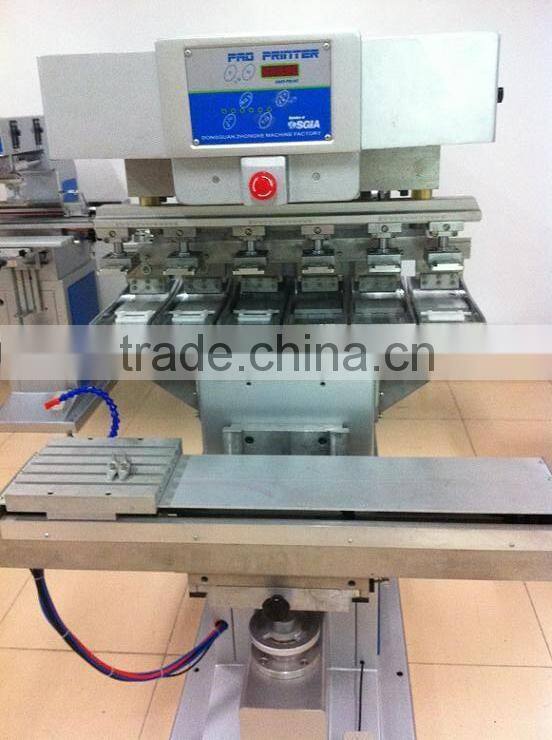

Actual machine pictures:
