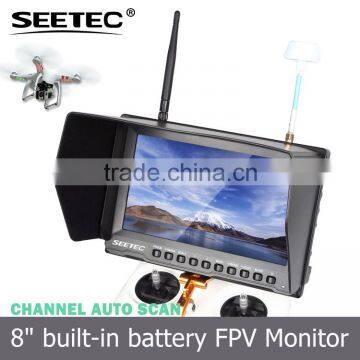

8 Inch FPV Monitor Photograph Function Peaking Focus Assist av Input 32 Channels Receiver Dji Phantom Vision Plus
- xiamen
- T/T
You May Like
-
No Blue Screen 7 Inch Aerial Screen Wireless 32ch 5.8g White Color Lcd Display
-
7 Inch Fpv Screen 32ch 5.8g Wireless White Monitor for Aerial Photograph
-
7 Inch Lcd Panel Led Screen 32ch 5.8 g Wireless Video in Hdmi Input White Montor
-
No Blue Screen Under Weak Signal High Definition 7 Inch Aerial Fpv Monitor Helicopter Model
-
7 Inch Quad Helicopter Monitor 16:9 Screen Aerial Photograph Quadcopter Wireless Camera Drone Propellers
-
5.8ghz Wireless Camera and Receiver 7"lcd Fpv Aerial Screen Propel rc Helicopter Charger
Product Details
| Type | Airplane | Power | Battery | |
| Material | Plastic | Plastic Type | ABS | |
| Scale | Other, 16:9 | Radio Control Style | RC Hobby | |
| Place of Origin | Fujian, China | Brand Name | SEETEC | |
| Model Number | FPV-821 |
Product Description
8 inch FPV monitor photograph function peaking focus assist av input 32 channels receiver dji phantom vision plus
Ultra-thin design only 22mm Thickness,8" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, Channel Auto searching.Excellent choice for your FPV monitor. The 450cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The built in integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
1.Channel Auto Searching ,selection via button
2.Built-in integrated lipo battery
3.DC output
4.Best Channel Receiption via Antenna Auto-switching
5.No Blue Screen
6.32 Channels Receiver
7.Portable DVR,TF Card max up to 32G
8.Motion Detection
9.Cycle Recording
10.High Sensitivity:-90dBM,Frequency Control
Photography Functions:
1.screenshot shortcuts
2.Peaking Focus Assist
3.Camera 5D II Mode
4.Check Field:
5.Screen Marker:
6.Centre Marker
7.4:3&16:9 image adjustable 8.Full Screen Display in mode of Monitoring & Recording
| Description | 8'' built in battery FPV Monitor dual 32CH 5.8GHz diversity receivers | ||
| Model | FPV821 | ||
| Dot Resolution | 800x480 | ||
| Dot pitch | 0.0736(W) X 0.2070(H) mm | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 450cd/m² | ||
| Contrast Ratio | 500:1 | ||
| Backlight | LED | ||
| Response Time | 10ms | ||
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | ||
| Support video format | PAL-4.43;NTSC-3.58 | ||
| Input Signals | Mini HDMI,AV,RF | ||
| Output Signals | AV ,3.5mm Earphone Jack | ||
| HDMI Mode | 480i /480p /576i /576p 720p /1080i /1080p (50/60Hz) | ||
| Built-in battery | 7.4v/2200mA(2 hours) | ||
| Input Voltage | 9-18V | ||
| Power Consumption | ≤13W(with battery) | ||
| workingTemperature | -20℃~50℃ | ||
| storage Temperature | -30℃~65℃ | ||
| Install Way | "1/4"-20 Thread mounting socket | ||
| Unit Size | 212L × 144W × 22H(mm) | ||
| Unit Weight | 520g/600g(with battery) | ||
SEETEC the new generation of powerfull FPV Monitor can meet the demand of an unprecedented visual experience.
Model No:FPV821
Channel Auto Searching
It supports 32-channels totally, Long press “Search” button to realize auto channel searching function when aerial photography. It’s much more convenient than traditional methods.
5.8GHz Wireless AV Receiver
Built-in AV receiver support PAL / NTSC .
Simulation of composite video AV inputs, aerial camera connection.
5.8Ghz frequency 4 Bands and total 32 channels.
Snow screen, no more “blue” screen
