GW-P4/S 4 Color Rotary Table Pad Printing

GW-P4/S 4 Color Rotary Table Pad Printing

Application

This machine suitable for printing promotional items such as pen barrel,golf ball,mouse,cup,mug,toy,key chains,dog tag,web camera,fan parts,tooth brush,save energy light,lighter,USB,memory card, calculator, garment neck label,mobile phone cover,toy,trophy....etc

Features

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head can be adjusted X.Y.Z direction.
5. the pressure of Sucking ink and printing pad and distance of scrapping ink can be adjusted independently
6. leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
7. The speed of all the cylinders have an independent regulator intortum
8. Front/back distance is long,and it can print bigger size product
9. It adopts fully Japan SMC and Taiwan MINDMAN pneumatic component
10. Every adjustment station has graduation marked
11. All the  machine is running steadily,and high printing  precision

Technical Parameter

1.Max steel plate size:100*150mm
2.Printing speed:840pcs/hour

3.Power:220V 50HZ
4.Air pressure: 5-7 bar
5.Net weight: 145KG
6.Machine size:1000*770*1350mm

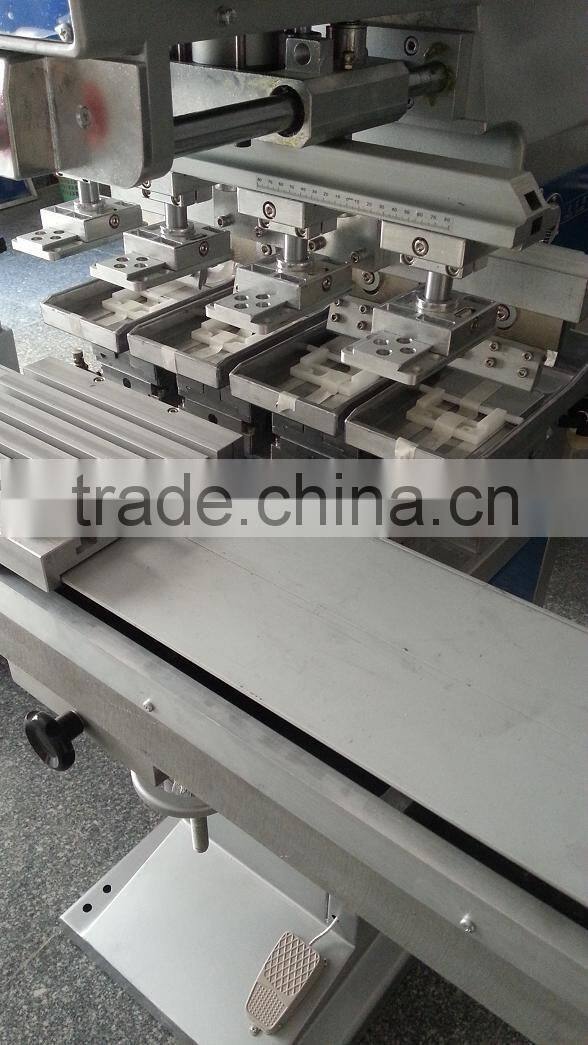

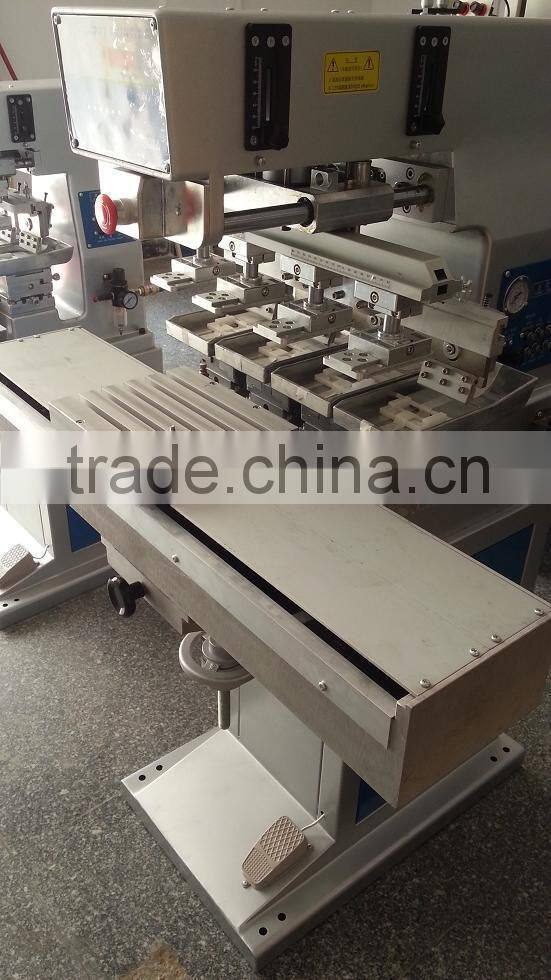

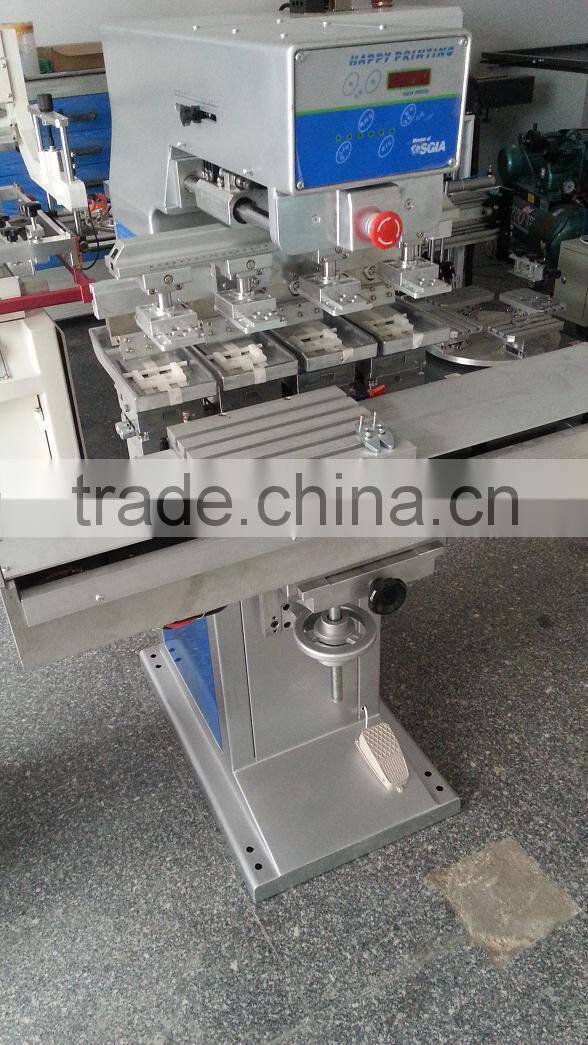

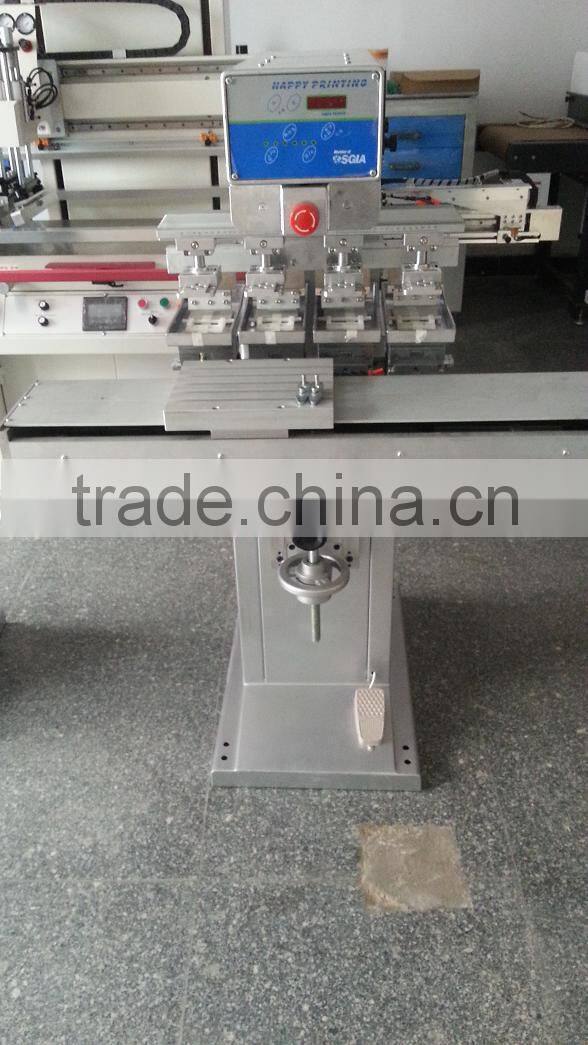

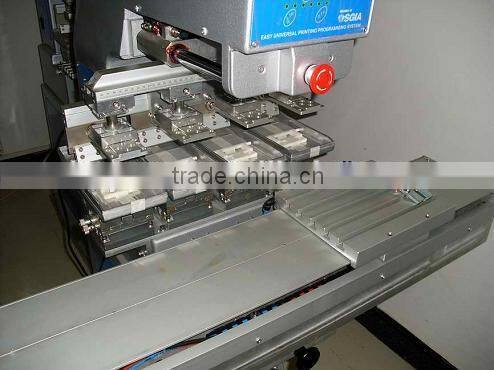

Machine pictures
