Semi-auto Manual Labeling Machine for Round Bottles Shanghai
- Any ports in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 220V 50/60HZ; | Brand Name | Topspack | |
| Model Number | TP-LBM-S4 | Dimension(L*W*H) | 630*430*330; | |
| Weight | 37Kg; | Certification | CE,SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
semi auto labeling machines1. Bottle diameter:30-120mm
2. Suitable for round labeling
3. Labeling Dia.15-250mm

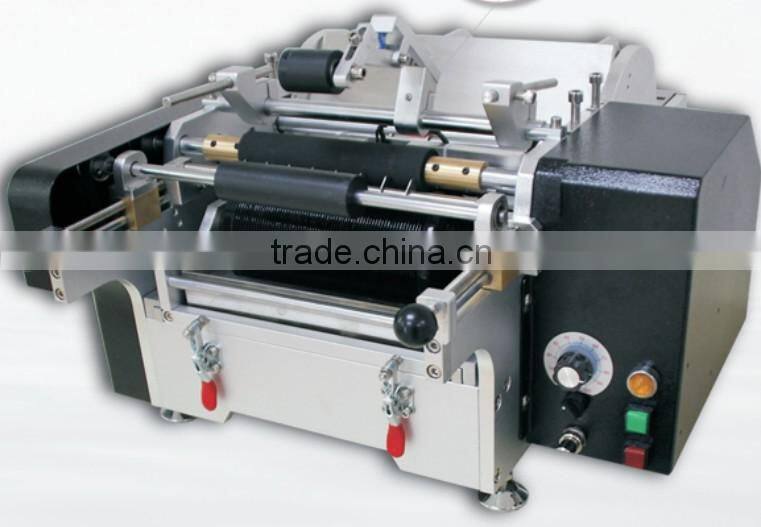

Semi-auto manual labeling machine for round bottles
I.General Description:
-This machine is suitable for round bottle,round cans,cylindrical container,and tapered ones.
The material of labeling containers can be PET, plastic, glass, metal and so on.
-With very easily operation,you can easily control it.This machine has a very low failure rate
in practical use.
II.Main features:
1. Suitable for labeling round bottle in different sizes.
2. Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
3. Putting the bottle to orientation part by manual and fix the bottle; pressing the off-on switch(step on
the pendal by foot)
4. All metal are made of 304 stainless steel with surface polish and special treatment, which we can
guarantee you very good quality
5. Small size labeling machine, easy to operate.
III.Technical parameter:
1.Applicable objects:cylindrical objects paste a paper label
2.The diameter range of labeling objects(mm):Φ30~Φ120,
3.The height range of labeling object (mm:)30~230;
4.The range of label(mm):length:80~280,height;40~175;
5.The labeling speed (depends on the labeling objects and the size of the label):15~25 pieces/min;
6.Precision:±1mm ;
7.Power:220V 50/60HZ;
8.Weight:37Kg;
9.Total Dimensions(mm):(L*W*H)630×430×330;
VI.Detailed Images

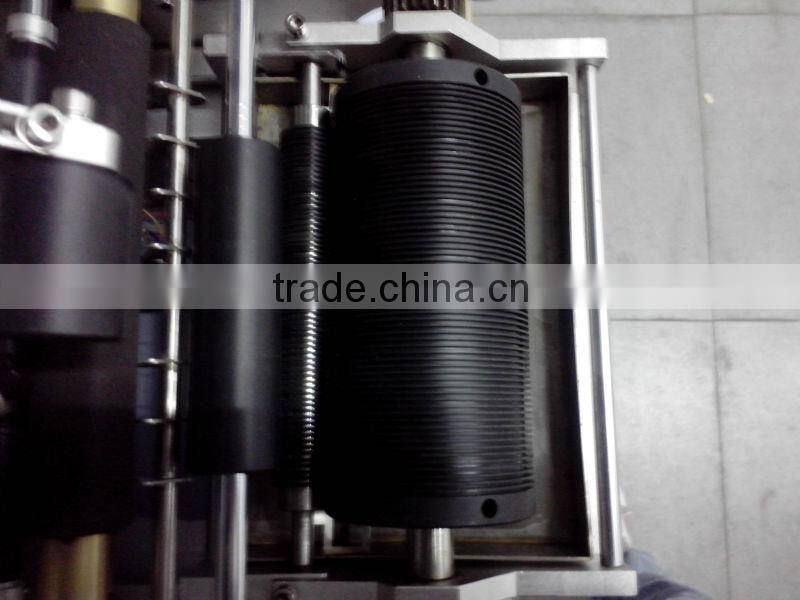

Part1:Wet glue box

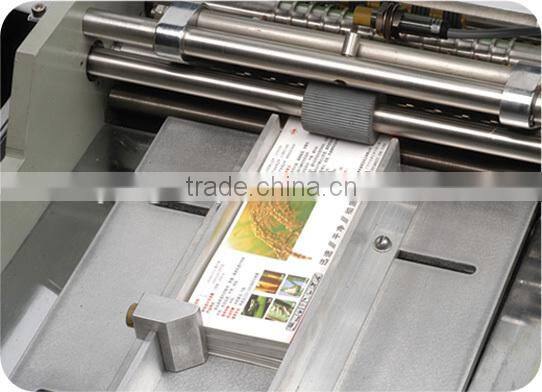

part2:Label box

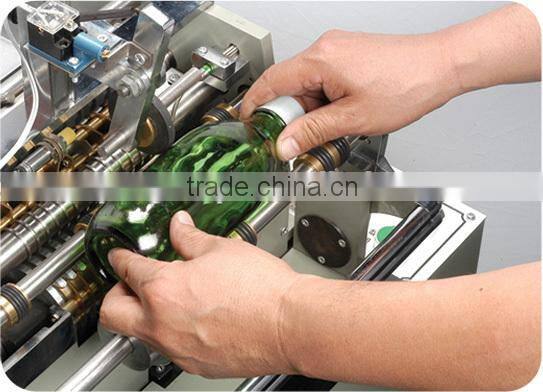

Part3.labeling Containers

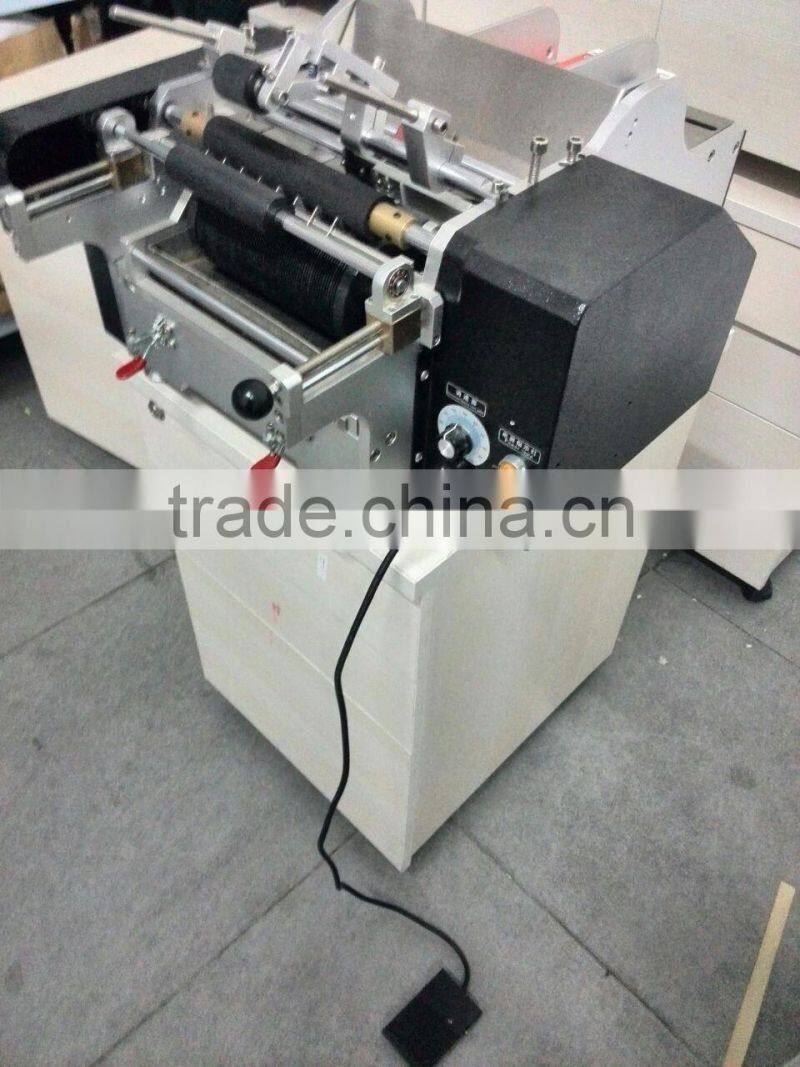

Part:Foot Pedal
V.Application Areas:
1.Cosmetic /personal care
2.Household chemical
3.Food & beverage
4.Nutraceuticals
5.Pharmaceuticals Industry
6.Agrochemical Field
VI.Samples
Note :
1.Quotation:1900 USD/FOB Shanghai, valid for 30 days since give quotation.
2.Payment terms:30% T/T down payment in advance, 70% T/T balance payment before shipment.
3.Delivery Time: 15 days after receipt of down payment
4.Package: seaworthy plywood carton
5.Guarantee Period: 12 months
