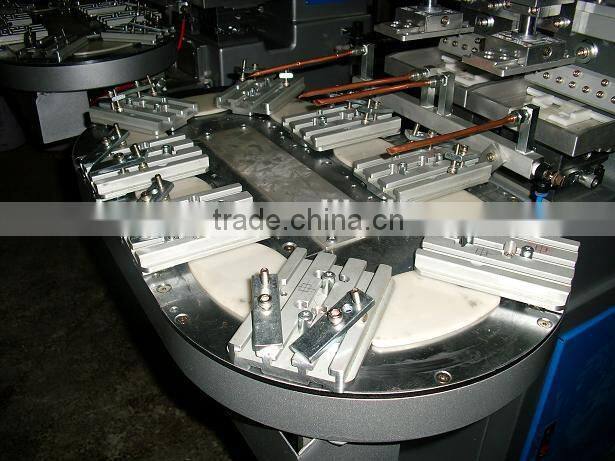

Pen 2 Color Pad Printing Machine With Rotary Worktable

2 color pen pad printing machine

Application of pad printing machine:

this pad printing machine has rotary worktable,products can be double-color pad printing continuously,one circle can complete one Colour register,compare with pad priner with shuttle,the speed is very fast.bigger steel plate can carry out double-color register for big image,high speed,running steady, it is suitable for printing electronic product,platic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on

Advantage of pad printing machine:

1.SCM IC complile action program,kinds of printing model options

2.Auto 4-digit counter built-in,and stat. Printing quantity

3.Airframe adopts coin alloy,and metal coating surface

4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction

5.Sucking ink and the pressure of printing pad can be adjusted independently .

6.The distance of scratching ink is adjustable

7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification

8.The speed of all the cylinders have an independent regulator intortum

9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component

10.Each adjustable location has scale logo

11.when there is no pressure air into ,it has prohibition of plastic head Down  functio

12..The machine is running fastly,it is steady and low voice

13.it has automatic cold wind system

Technical Parameter:

steel plate:100*200mm

Printing speed:1500PCS/Hr

Power:220V  50-60MHZ|1000W

Air pressure:5-7bar

Max.printing area:60*120mm

Printing workstation:8PCS

Printing color:2 colors

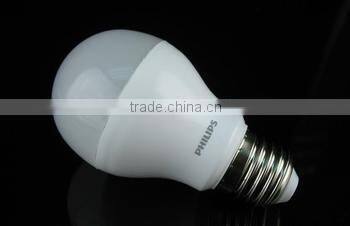

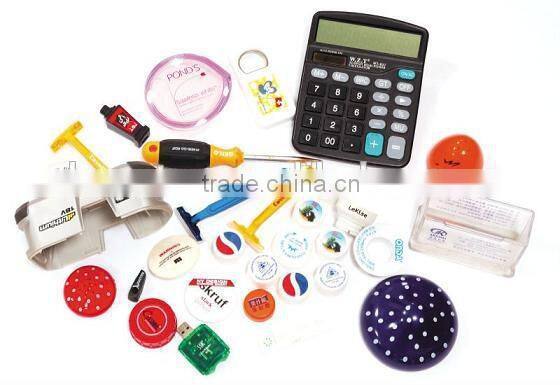

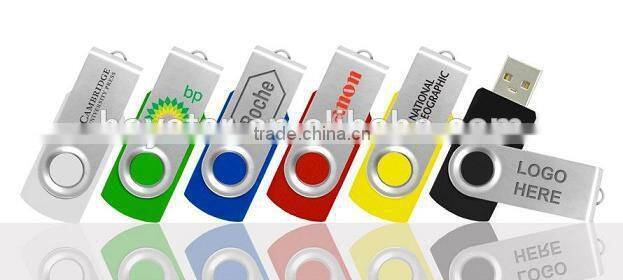

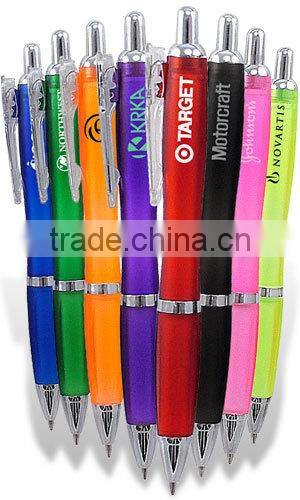

printing sample show
