Closed Ink Cup 1 Color Pad Printing Machine With 100*200mm Steel Plate GW-SM

Closed ink cup 1 color pad printing machine with 100*200mm steel plate GW-SM

Widely Application:

It is suitable for printing different material irregular promotional items such as pen,mouse,pen,calculator,pen barrel,bottle date,golf ball,slipper,keyring,name card,knife,toy,trophy....and so on

 Technical parameter:

 Max sealed ink cup diameter:60mm

 Max printing area:50*50mm

 Max printing speed:1500-1800pcs/hour

 Steel plate size:100*200mm(also can use polyester plate)

 Air pressure:0.5-0.7Mpa

 Power: 220V 50HZ 30W

Feature:

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat.Airframe adopts coin alloy,and metal coating surface
3. Worktable,plastic head can be adjusted X.Y.Z direction.
4. Sucking ink and printing pad's air pressure can be adjusted independently
6. Leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
7. All cylinders speed have an independent regulator intortum
8. Front/back long distance,and it can print bigger size product
9. It adopts fully Taiwan pneumatic component
10. All the  machine is running steadily,and high printing  precision
11. All electric component of the machine are installed by open,it is convenient to maintain it.
12.This machine is installed with emergency stop button,it meets safety standard requirement

Advantages:

1.It is smallest pneumatic pad printer in China

2.Automatic printing by pneumatic control,high precision

3.Worktable can adjust up/down

4.Digital mini panel control.

5.Small size save space

6.Light weight,easy to move and shipping by express with low shipping cost

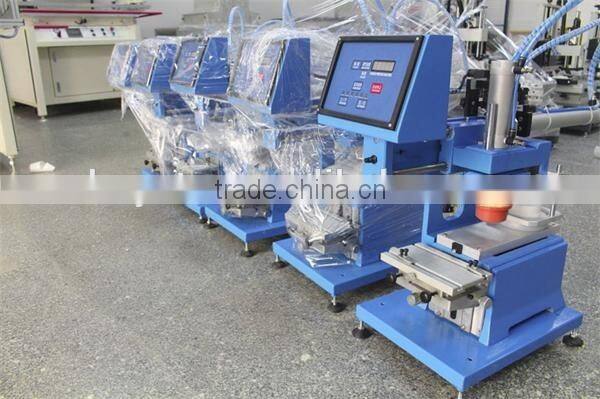

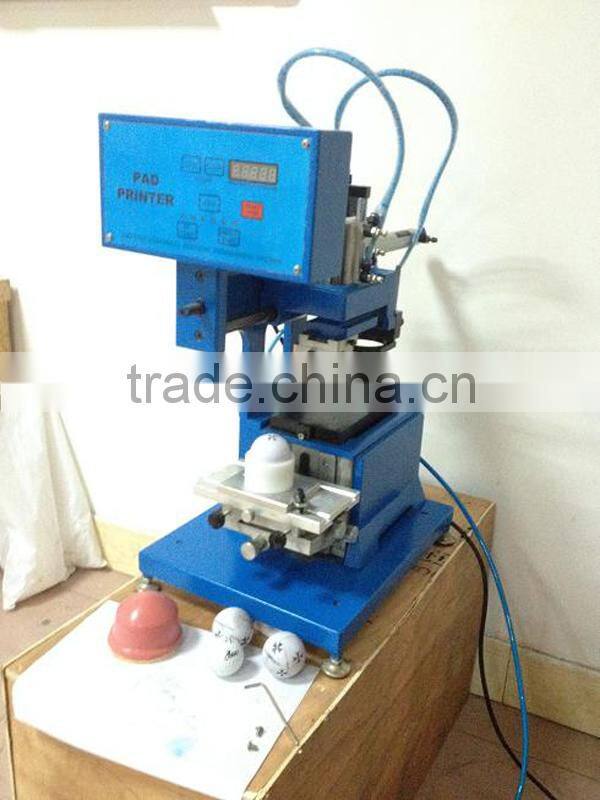

Actual machine picture:
