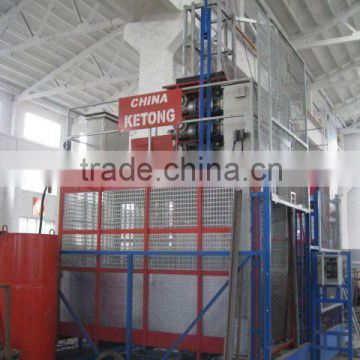

SC200GZ Building Hoist,With Frequency Inverter,VFD

Specifications

We are a special supplier of building hoists and working platform in China. Our building hoist has been widely exported all over the world with a good reputation. The payload capacity is as much as 10, 000kg. Lifting speed can reach up to 96m/min, and the erection height reaches up to 450m. Our products have been widely used for transportation for both men and cargo in general buildings, electric power plants, mining wells, oil fields and chemical industries.

SC200, SC200/200 building hoist:

1). Cage load capacity: 2, 000kg

2). Lifting speed: 36m/min, 0 - 63m/min, 0 - 96m/min

3). Mast section: Painted or hot dipped zinc

4). Cage: Single cage or twin cage

5). Recommended cage inner dimensions (L x W x H): 2.5 x1.3 x 2.5m, 3.0 x 1.3 x 2.5m, 3.2 x 1.5 x 2.5m, 3.6 x 1.5 x 2.5m, 3.8 x 1.5 x 2.5m, 4.0 x 1.5 x 2.5m, 4.2 x 1.5 x 2.5m, according to requirements of customers

6). Motor and reducing device: Made in China, or uses SEW according to requirements

7). Counterweight: With counterweight or without counterweight

8). Color of cage: Yellow, red, blue

9). Cage load capacity: 1, 200kg, 2, 000kg, 2, 700kg or 3, 200kg

We offer most kinds for building hoist, if you are interested, please feel free to contact me.

Thanks
