10.1 inch touch panel high resolution 1024X600 video aduio input foldable stand bracket and VESA 75mm lcd monitor flush mount

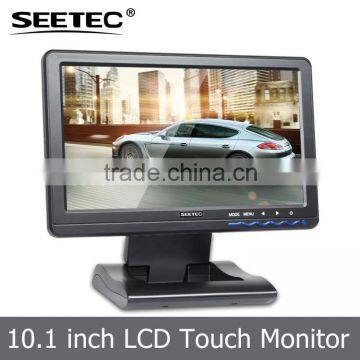

    ST-101AHT is a 10.1 inch TFT LCD monitor.

> It uses a high quality new LCD Panel,with 1024X600/1366x768 resolution, 450cd/m²/250cd/m² high brightness and 50°/50°(L/R) 30°/50°(U/D) wide angle, which can display clear images.

> It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.

Abundant Interface:

Even small size as 10.1 inch,ST-101AHT also has HDMI,DVI-D,VGA,Audio (1 RCA)&Video (2 RCA)input, which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.

>On HDMI Mode,using under scan function,it is possible to display Full HD videos.

Customized SKS Cable

One Side: Customized 14 Pin SKS terminal

The other side:

> 9 Pin VGA terminal (Black)

> 2 RCA Video terminal (Yellow)

> 1 RCA Audio terminal (White)

> 1 DC input (Black)

Speaker Built-in:

As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

 Folding Bracket

> Possible to stretch & folding

> Wall Mount possible

Image Flip Function(Optional)

ST-101AHT has Image Flip(Horizontally & Vertically) function.Using this function.it is convenient to watch the display even the monitor is reverse installation.

Mode Shift between 16:9 to 4:3

Base on different signal input or Practical purposes, you can change the display mode between 16:9 to 4:3.

Support System for Touch:

MAC

Vista

Linux

Win CE

MS-DOS

Window XP

Window NT4

Window 9X/ME

  This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
