LS-01BC 1/16 off Road 4WD Brushless rc Car

Specifications

AM27 1/16 high-performance electric racing buggy.real 4WD,brushless 380 motor,Climb capaticy:can climb up 40-45 degree slope

NanoDragon - 1/16th Scale Buggy (Mini Inferno Clone)

1. The Package:
Not much to see here. There's a very plain black box and only a clear window on the top. The bodies are pre-painted lexan, decals/stickers are DIY. Colours available are Blue (shown), Red, White and Silver.
2. What's in the Package:
Opening the pack will reveal a complete Ready-to-Run NanoDragon chassis.
An excellent 10 model memory digital Transmitter with LCD for setup. The Transmitter is worth a few comment on it's own.

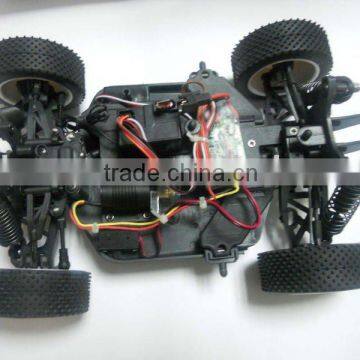

3. The Chassis uncovered:
If you've seen a Mini-Inferno you've seen a NanoDragon. The 4-wheel independent suspension has good long arms which and smoothly damped buy large shock units. All arms can be adjusted and also use "ball ends" at most attachment points.
Tyres are glued to the rims, and have a more road oriented tread.
4. & 5. Front and Rear Suspension:
Smooth damping, slick movement and long travel really make short work of bumps and lumps.

 Feature:

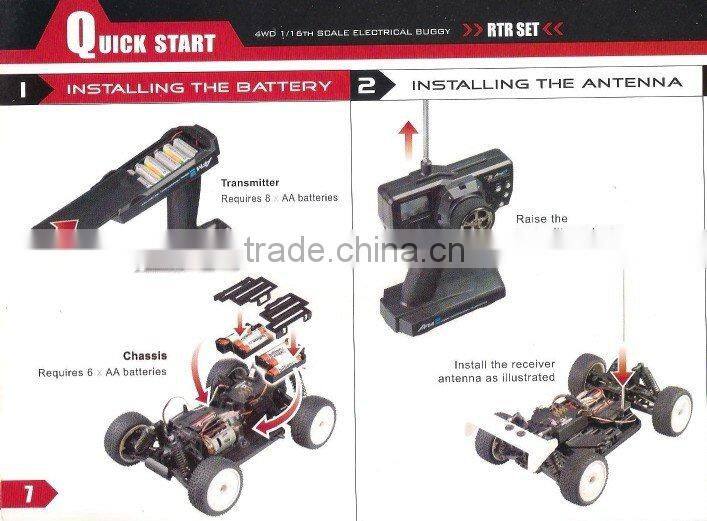

1. Battery Compartment
Slot in 6x AA and you're in business.
2. The Body:
Pre cut and pre-paint Lexan will be durable and if it gets too tatty any Mini Inferno cover can be used.
You get a sticker sheet so that you can choose what decals go where!
The stickers are printed on clear backing and are pre-cut, well finished and very sticky!
3. & 4. Together and Ready to Race
As you can see we didn't use all the provided decals and have added our own as well. Rear wing clips on. The buggy looks great!
5. Always dispose of Packaging Thoughtfully
The box can keep some amused for hours!

the NanoDragon has bearings right through the driveline with the only plastic bushes being out in the wheel hubs. This means it's a "cheap" 8 bearing set to get the best driveline performance. The Top cad alloy doesn't disappoint, it looks great and has perfect finish.

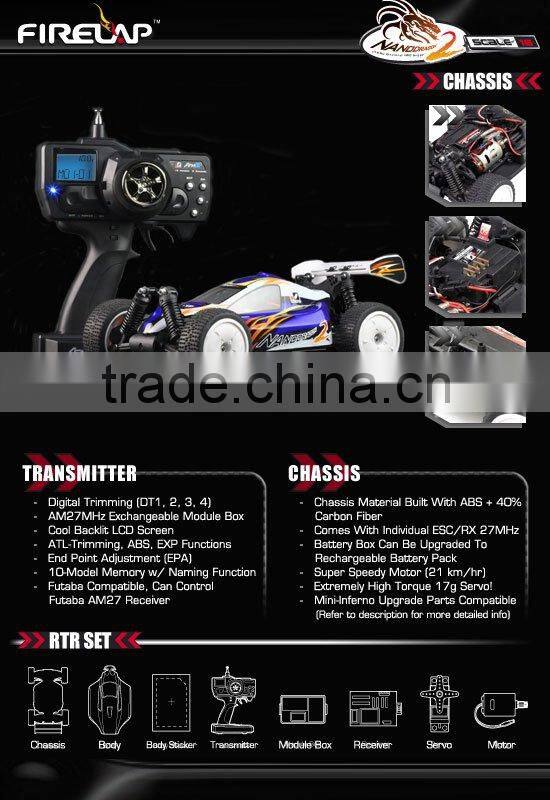

Specifications :
1/16 high-performance electric racing buggy. With the fulltime 4WD system and race-bred components, you can experience the excitement of high performance off-road racing straight.

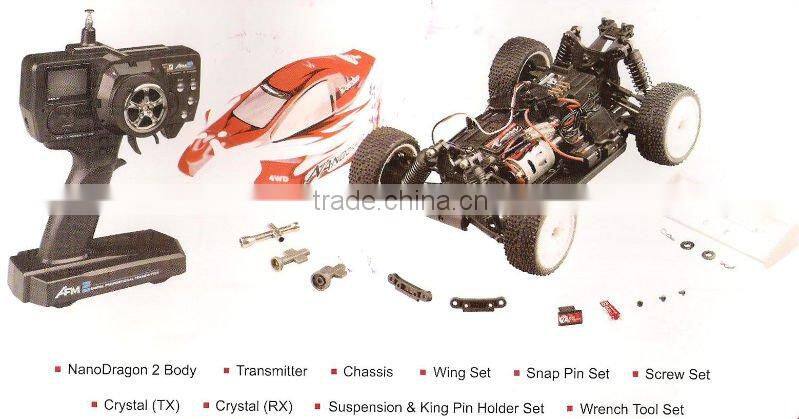

Set Contents:
- Fully Assembled Chassis
- Painted Body (Stickers decal separately provided)
- Digital transmitter
Rear Lower Sus. Holder (3 types) for different settings
Features:
Chassis:
1,Frequency:AM27 MHz   RTR buggy

2,1/16 high-performance electric racing buggy.With the fulltime 4WD system and race-bred components,you can experience the excitement of high performance off-road racing straight.

3,3CH Digital proportional radio control system,Futaba compatible
4,17g Standard servo (Futaba,Sanwa,Hitec compatible) ,powerful 380 motor
5,Ready-to-run with pre-installed electronics and radio equipment
6,Long running time: Up to 40mins with 6*AA alkaline batteries
7,Maximum speed:35-60km/h
8,Radio control distance:100-300m;
9,transmitter with LCD display and four edit keys easy to set data
10,10 models memory

11,kyosho compatible

12,best hot saler in China,used for smart car competition

Multi-point setting options & parts: Springs; chassis height; front caster; rear toe-in and wing angle adjustment
Wide range of optional upgrade parts are available
Transmitter:
3-Channel
Simple segment type LCD display and four edit keys for easy data setup
10 models memory
Tow function groups Function Manual/System Manual
Steering dual rate (D/R-ST)
Anti-skid Braking System (ABS)
Digital trim: Steering trim, Throttle trim, Steering D/R
Function select lever function (FNC-DT1/DT2/DT3/DT4)
NEW design considers operability and weight balance
Tension adjustment funciton
Input Voltage:12V
Working Current:160mA
Specifications:
- Length:270mm
- Width:173mm
- Height:100mm
- Weight:500g (approx. )
- Wheelbase:176mm
- Ground Clearance:15-30mm (approx. )
Tread (F/R):150mm
- Tire (F/R): DIA.64 x 25mm

Require:
6 x AA-sized batteries for chassis and 8 x AA-sized batteries for transmitter

WEIGHT (g) 1500g

>>>>>>>>>>>>>>%%%%%%%%%%%%%%%%%%%%%<<<<<<<<<<<<<<

we are specializes in manufacture 1/28  scale car,1/16 4WD RC Buggy, rc car track,spare parts(AM27Mhz/FM40Mhz/2.4G radio,servos) and so on  for 9 years
