Long distance controlled micro 2.4G rc telecontrol system

Specifications

  ERC TG04C 2.4G rc car transmitter and receiver

TX module:

1) RF Range: 2.400-2.4835GHz ISM BAND

2) Code Type: FSK

3) RF Power: less than 20 DBm

4) TX Current: 150mA typical

5) Modulation signal: 1-3CH, standard PPM pulse width control signal

6) Working Voltage: DC4.8V-6.0V

7) Automatic selects and change frequency (frequency hopping) after turning on the TX

RX module:

 1) Frequency Band: 2.400-2.4835GHz ISM BAND

 2) Working Voltage: DC4.8V-6.0V

 3) RX Current: 30mA typical

 4) RX Sensitivity:-110dBm typical

 5) Demodulate Output signal: standard 1-3CH,
 signal pulse width1.0-2.0ms

 6) LED Indicator light for RX Sensitivity and frequency bind

 7)Control Distance: More than 200M on the opening ground.

 Features of rc car transmitter and receiver

1.Be used for Professional RC Car and RC Boat.

2.2.4 inch TFT color Screen Display

3. Resolution:1024(256)

4.Display English&Chinese two languages (also,we can do any languages as per your requirement)

5.Can be individually adjusted data for each types of ESC (include RC car and RC boat) 6.Reversible Hand Operation(wheel section can be installed to left-or right hand driving) 7.Real-time dynamic screen

8.Stopwatch function

9.10-model memory,control distance:150M                                                                          10.Exponential(EXP Steering and Thorttle)

11.Steering dual rate (d/r-st)

12.Anti-skid braking system (ABS)                                                                                           13.Digital trim: Steering trim, throttle trim, steering d/r                                                                 14.Function select lever function (fnc-dt1/ dt2/dt3/dt4)                                                           15.Tension adjustment funciton

16.Can be used with Firelap 2.4G MINIZ RC Car, easy to binding

One Box Contents:

1transmitter,1receiver,1power switch,1power battery box,1 English manual book


Battery (not include):
Dry Cell Battery:  6*AA (9V)
Ni-MH battery:      6*AA (7.2V)
Li-po Battery: 7.4V

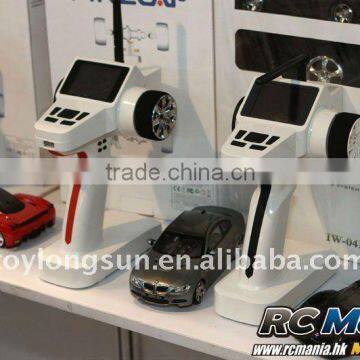

Pictures of rc car transmitter and receiver
