lightweight foam concrete conveying or pumping machine
- 30 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
Product Details
Condition | New | Power Type | Electric | |
Place of Origin | Henan, China | Brand Name | Anjit | |
Model Number | SYT30 | Power(W) | 30kw | |
Weight | 1900kg | Dimension(L*W*H) | 4200*1420*1750 mm | |
Certification | ISO9001 | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification:

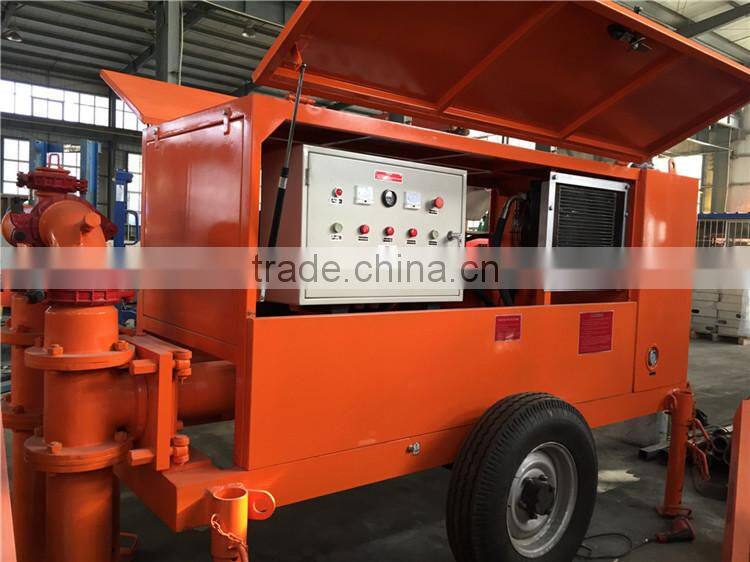

Hydraulic Foam Concrete Conveying Pump | |
SPECIFICATION | |
Capacity | 20~30 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal distance | 500 m |
Max. theoretical vertical distance | 180 m |
Conveying pipe inside diameter | Φ70/Φ64 |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 320L |
Motor power | 30 KW |
Dimension (L*W*H) | 4200*1420*1750 mm |
Weight (whole machine) | 1900 kg |
Bulk foam concrete machine in Plywood case;

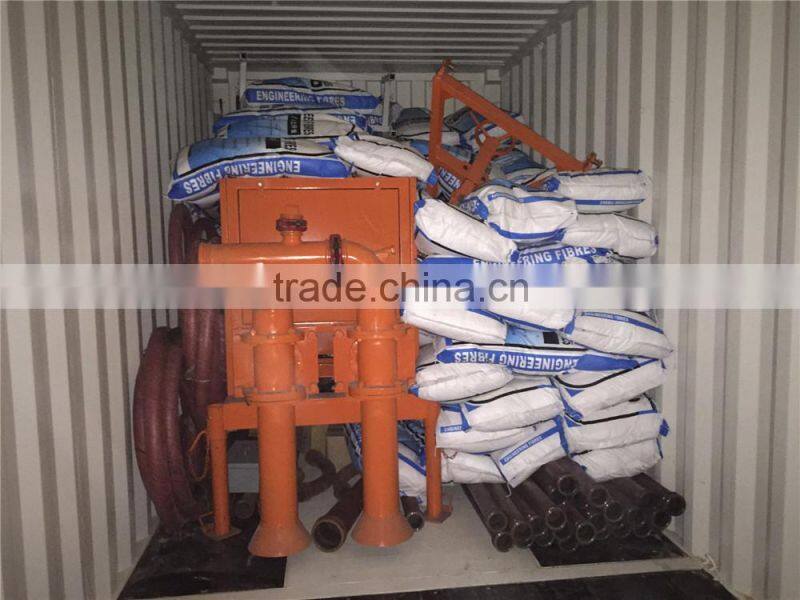

Container laden products in nude packing.

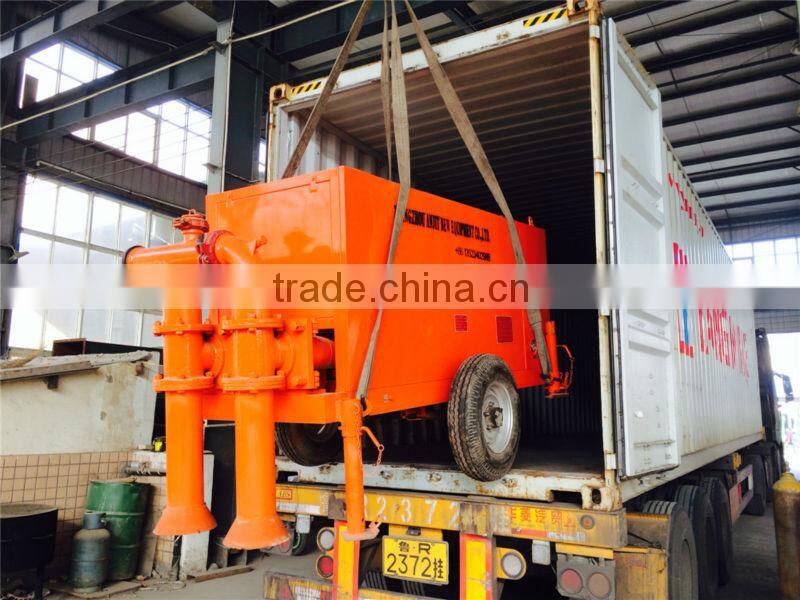

All machineries shipping by sea or by train within 7~10days normally.
After-sales service and technical assistant;
Installation service as per customers requirements and needs;
Clients could also to study technology in our factory freely.
Zhengzhou Anjit New Equipment Co., Ltd,situated at High-tech Industries Development zone in Zhengzhou city, established in 2011 specializing in Cellular Lightweight Concrete(CLC) Machines: foam concrete mixing machine, foam concrete pump, CLC block one direction cutter GYC-60B, CLC block two direction cutter GYC-60C, CLC block sawing machine GYC-60H&GYC-60F, mass block mould, manual block mould, demoulding machine, traction engine, ferry car and so on, they are widely used as a green materials in construction buildings.
Eco-friendly & save energy 30% machine, Excellent quality, reasonable price and perfect service make our products enjoy a good market at home and abroad. Till today the continuous improved CLC machines have been exported to Iraq, India, Indonesia, Philippines, Bangladesh, Ghana, Ecuador, Iran, Kazakhstan, Canada, Libya, Afghanistan, Willemstad, Myanmar, Pakistan, Thailand, Kyrgyzstan, Angola, Argentina, Mongolia, Saudi Arabia, Turkey, Mexico, Qatar, and Northern Marianas.
With a perfect service system, Our engineers and technicians can make specific design proposal, install & commission machines, train workers for customers and good service for clients.
With rich experience in foreign trade we can help more and more foreign clients to find the right machines and get what they want machines and products.
We are waiting for your coming or contacting for business cooperation!!!
Contact us today to benefit from what we offer!!!

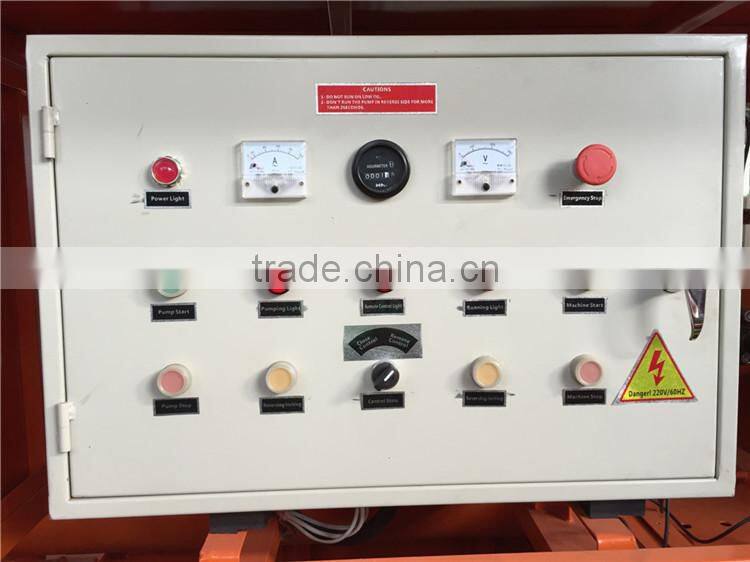

Q: Does the hydraulic foam concrete pump with PLC control panel and is there equipped with remote controller?
A: Yes, the hydraulic foam concrete pump is equipped with PLC control panel and remote controller.
Q: Does the hydraulic foam concrete pump matched with pipes or hoses?

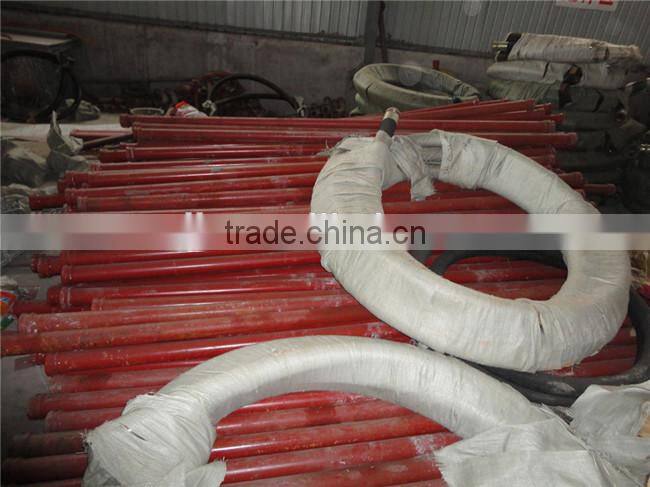

A: Yes, 66meters straight steel pipes and 40meters rubber hoses.
Q: How height in vertical does the pump can reach?
A: Max.180meters.
Q: How long in horizontal does the hydraulic foam concrete pump can reach?
A: Max.500meters.
Q:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones, exceed the 66meters steel pipes or 40meters rubber hoses, shall pay extra.
Q: What's the hydraulic foam concrete pump's wearing parts, and how long shall change them?
A: limited switch, piston, and steel ball. Normally 6-12months for limited switch, 8-18months for piston or steel ball.
Q: Is there any spare parts with the hydraulic foam concrete pump shipping together?
A: Sure, 2pcs limited switches, 4sets steel balls, and 2pistons together with the hydraulic foam concrete pump shipping.
Q: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
If you are interested with CLC products, Contact us now!!!
