coal mining coal dust rotary dryer for mining ore processing
- Shanghai Port Qingdao Port
- T/T
You May Like
-
artificial sand making machine,sand cutting machine, VSI sand making machine
-
VSI 5X Series Stone Crusher Machine,sand making machine,rock crusher
-
stone and sand production VSI artificial sand making machine
-
VSI artificial sand making machine for construction use
-
high quality sand washer
-
hammer crusher from shanghai with high quality,hammer mill
Product Details
| Place of Origin | Henan, China | Brand Name | DONXE | |
| Model Number | 600 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
coal dust rotary dryer1.moisture of raw materail can be reduced to below 5%
al, oil, gas can be used as fuel

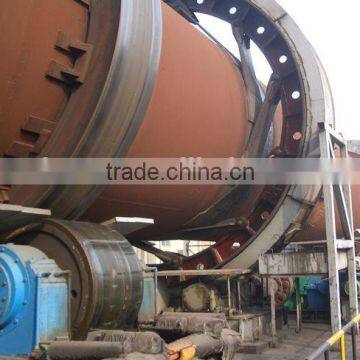

1.Description of coal dust rotary dryer
Rotary Dryer produced by our company are using the new rotary drum dryer lifting plate that have a guide, average current, lifting and many other features,make the material in the dryer full uniform radial cross-section,act is expected to become thin, uniform, complete , complete contact with hot air, to make full use of thermal energy. Our rotary dryer using reasonable operating parameters, coal consumption and electricity consumption lower 10-15% than the average dryer, the production increase10-15%, it has been widely used in the cement and mineral processing enterprises .
We supply the following dryer: wet material rotary dryer, sand dryer, sawdust dryer, coal dryer, coal slime dryer, bentonite dryer, ore concentrate dryer, wood chip dryer, cassava dryer, gypsum dryer, cow dung dryer.
2.Structure of Rotary Dryer
Rotary dryer device mainly include:cylinder device,front and rear roller device, feeding and discharging device, gearing device, gear cover and other components. (With dryer associated ancillary equipment: combustion chamber, feeding material equipment, dust collection equipment, etc. do not belong to the local scope).
3.Working Principle of Rotary Dryer
The auto-combustion device provides heat resource for our Continuous Dryer/Sawdust Dryer/3Drum Dryer/Dryer/Rotary Dryer, which adopts down-flow heating method.When the mineral materials are fed into the cylinder, it flows down as a result of gravity.Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air.The material is thus dried gradually.
Main Technical Parameters of Rotary Dryer
Model | The Diameter (mm) | The Length (m) | Slope(°) | Speed (r/min) | Power (kw) | Volume (m3) |
0.6×8-12 | 600 | 8-12 | 3-5 | 8 | 4 | 2.26 |
0.8×10-10 | 800 | 10-12 | 3-5 | 7.2 | 4 | 5.02 |
1.0×10-12 | 1000 | 10-12 | 3-5 | 6.73 | 5.5 | 7.85 |
1.2×12-18 | 1200 | 12-18 | 3-5 | 5.8 | 11-15 | 13.31 |
1.5×12-18 | 1500 | 12-18 | 3-5 | 4.8 | 15-22 | 21.2 |
1.8×12-18 | 1800 | 12-18 | 3-5 | 3.2 | 185-30 | 48.22 |
2.2×12-22 | 2200 | 12-22 | 3-5 | 3 | 22-30 | 70.43 |
2.8×15-24 | 2800 | 15-24 | 3-5 | 2.59 | 30-55 | 147.8 |
Shanghai Donxe Industrial Co., LTD
Professional Supplier of Mining and Beneficiation Equipment !
Our company is a high-tech enterprise in Shanghai which had achieved CQC, ISO9001/2000. We are a professional manufacturer and supplier of mining crusher, industrial grinding mills, and beneficiation equipments.
Our company features advanced CAD and computer simulation test system which ensures the quality of design, development, manufaturing and after-sale services. We can provide gravity separation, magnetic separation, flotation beneficiation and cyanidation beneficiation lines. Most importantly, what we can provide is not only the equipments, but the professional technology which can meets any special requirements.
Our company has independent import-export right with an international trade department to deal weith export affires. Besides, we have a professional after-sale service faculty to provide considerate and all-round-way services for customers.
SHANGHAI DONXE INDUSTRIAL CO., LTD
Salesman: Owen
Tel: 0086-371-66233087 Fax: 0086-371-66233082
If you have any problems. Please feel free to contact us.
You're warmly welcome to visit our factory
Our website:
