High Quality Best Price Marine Boat Rubber D Fender
- 300 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Xincheng | |
Model Number | XC.No.F183 | Part | Other, D Fender |
Product Description
Specifications
Marine Boat Rubber D FenderHigh energy absorption and low reaction force
Good performance and easy installation
High E.A
High Quality Best Price Marine Boat Rubber D Fender
Boat rubber D fender
1)Dia:1.7m Length:3.0m
2)Initial pressure:0.05Mpa
3)Reaction force:639KN
4)Energy
Boat rubber D fendera feature:
1.Low reaction force, less surface pressure, reasonable energy absorption.
2.The simple figure is easy to be installed and maintained.
3.Widely used in shipping and docks.
4.Good adaptability for transversal and longitudinal shape during berthing.
5.Used as the suspending equipment of defending dash for all kinds of the shipping and docks .
The advantage of D type rubber fender:
- Rubber fender with high energy absorption and lower reaction force will maximize rubber fender efficiency. Conform to Macgregor or TTS or any other international standard
- High Efficiency: Rubber fender with high energy absorption and lower reaction force will maximize rubber fender efficiency.
- Easy to compress fender and high elasticity will increase the shock absorption speed
- Fender suitable for areas with large or small tides
- Fender performance is adjustable by varying initial pressure.
- Good aging resistance capacity, Good resistance to Polar Liquid, Good resistance to Ozone
- Long lasting / weather resistant fender
- Conform to Macgregor or TTS or any other international standard.
- High resistance to high and low temperature

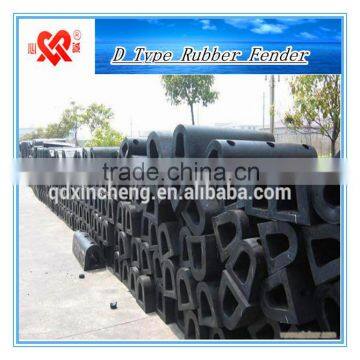

The products display:
The applications of D type rubber fender:
The specifications of D type rubber fender:
Diameter | Length | Intital pressure(Po) is 0.05MPa | Intital pressure(Po) is 0.08MPa | ||||
Weight kg | Reaction force (KN) | GEA (KJ) | Weight kg | Reaction force (KN) | GEA (KJ) | ||
300 | 500 | 10 | 23 | 1.3 | 10 | 30 | 1 |
600 | 15 | 27 | 1.5 | 15 | 36 | 2 | |
500 | 800 | 25 | 60 | 6 | 25 | 80 | 7 |
1000 | 35 | 75 | 7.5 | 35 | 100 | 9 | |
800 | 1200 | 180 | 144 | 22 | 180 | 191 | 28 |
1500 | 200 | 190 | 280 | 200 | 240 | 35 | |
1000 | 1500 | 140 | 226 | 41 | 140 | 286 | 53 |
2000 | 170 | 301 | 55 | 170 | 381 | 71 | |
1200 | 2000 | 200 | 361 | 79 | 200 | 458 | 103 |
2500 | 240 | 427 | 102 | 240 | 554 | 140 | |
1500 | 2500 | 300 | 565 | 155 | 300 | 711 | 200 |
3000 | 350 | 671 | 186 | 350 | 284 | 160 | |
2000 | 3500 | 650 | 900 | 1050 | 650 | 1340 | 501 |
6000 | 950 | 1800 | 660 | 950 | 229 | 859 | |
2500 | 4000 | 1100 | 1510 | 688 | 1100 | 1900 | 889 |
5500 | 1350 | 2076 | 946 | 1350 | 2610 | 1220 | |
3000 | 5000 | 1700 | 2250 | 1250 | 1700 | 2860 | 1600 |
6000 | 2000 | 2583 | 1485 | 2000 | 3292 | 1888 | |
3300 | 4500 | 1800 | 2240 | 1350 | 1800 | 2820 | 1740 |
6500 | 2250 | 3230 | 1950 | 2250 | 4070 | 2520 | |
4500 | 7000 | 3250 | 5270 | 3180 | 3250 | 5980 | 5040 |
9000 | 4950 | 6120 | 5050 | 4950 | 7960 | 6480 |
The structure:
Qingdao Xincheng Rubber Products Co., Ltd, which was founded in 1986, is a collection of production,scientific research and design, product development,
technical services for the integration of enterprises, is the professional
manufacturer of ship launching airbag, Pneumatic rubber fender, marine
rubber fender in China area. Company as the leading enterprise has passed
the certification of CCS , ISO9001:2008, SGS, LR etc.
Any questions, please feel free to contact me, we will reply you within 24 hours.
