Home > Products > Red dot laser Module > DD670-2.5-3, red, laser diode module, focus adjustable, Industrial

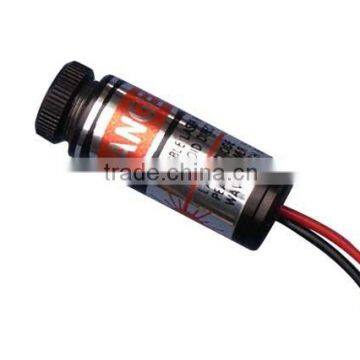

DD670-2.5-3, red, laser diode module, focus adjustable, Industrial
US$ 15 - 15
/ Piece
1 Piece(Min. Order)
- XI'AN please ask ship cost before you place online order.
You May Like
-
DD635-5-3, red, diode module, focus adjustable, Industrial
-
DD650-5-3, red, diode module, focus adjustable, Industrial
-
DD650-8-3, red, laser diode module, focus adjustable, Industrial
-
DD635-10-3, red, diode module, focus adjustable, Industrial
-
DD650-10-3, red, laser diode module, focus adjustable, Industrial
-
DD650-25-3, red, laser diode module, focus adjustable, Industrial
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Huanic | |
| Model Number | DD670-2.5-3 | Type | Laser Diode | |
| Package Type | Other | Max. Forward Voltage | DC +3.2V |
Product Description
Specifications
670nm red laser module, small size, glass lens, and Industrial quality, aluminium housing, guarantee one year.Main Specifications:
- Available wavelength: 670nm
- Size: dia.12mm x len.34mm
- Output power: 2.5mW
- Output aperture: dia.5mm
- Operating voltage: DC 3V
- Operating current: less than 60mA
- Standard operating distance: 10 meters, focus adjustable
- Beam character: elliptical
- Elliptic proportion: 1:1.4
- Divergence: 0.5mrad
- Beam size: about 3.5 x 5mm@ 10m; 5 x 9 mm@ 20m; 12 x 17mm@ 40m
- Optics: glass lens both sides AR coated
- Operating temperature: -10-+40 Celsius degree
- Storage temperature: -40-+80 Celsius degree
- Life time: more than 8000 hours
- Laser safety classification: class 2
