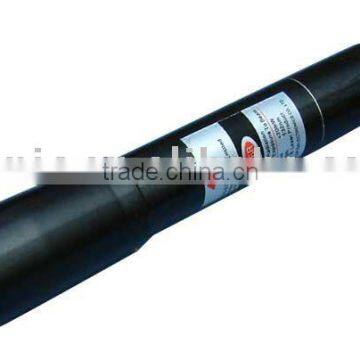

E532-5-3-20, DPSS, beam expander green laser module
USD $75 - $75
/ Piece
1 Piece(Min.Order)
- XI'AN please ask ship cost before you place online order.
You May Like
-
E532-10-3-20, DPSS, beam expander green laser module,flashlight
-
E532-5-3-30, DPSS, beam expander green laser module
-
E532-15-3-30, DPSS, beam expander green laser module
-
E532-10-3-30, DPSS, beam expander green laser module, flashlight
-
E635-2-3-20, beam expander, red laser diode module
-
E650-2-3-20, beam expander, red laser diode module
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Huanic | |
| Model Number | E532-5-3-20 | Type | Laser Diode | |
| Package Type | Other | Max. Forward Voltage | DC +3.2V |
Product Description
Specifications
532nm DPSS green beam expander laser module, glass lens, and Industrial quality, aluminium housing, guarantee one year.Main Specifications:
- Available wavelength: 532nm
- Size: dia.24mm x len.120mm
- Output power: 5mW
- Output aperture: dia.20mm
- Operating voltage:DC 3V
- Operating current: less than 300mA
- Beam character: roundish
- Elliptic proportion: 1:1
- Beam size: about 22mm@ 10 meters
- Divergence: 0.2mrad-0.4mrad
- Optics: glass lens both sides AR coated
- Crystal: Nd:YVO4 and KTP
- Beam model: TEM00, continuous output
- Operating temperature: +15-+30 Celsius degree
- Stability: less than +/-20% at +15-+30 Celsius degree
- Life time: more than 5000 hours
- Laser safety classification: class 2
Beam picture:
