Home > Products > 520nm green line laser for instrument > MLE520-10-4.5(10467-10) High quality green line laser diode module

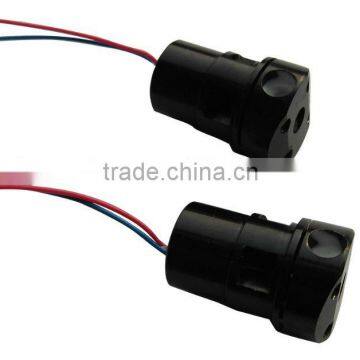

MLE520-10-4.5(10467-10) High quality green line laser diode module
US$ 100 - 100
/ Piece
10 Pieces(Min. Order)
- Xi'an please inquiry ship cost before you place online order.
You May Like
-
E532-5-3-20, DPSS, beam expander green laser module
-
E532-10-3-20, DPSS, beam expander green laser module,flashlight
-
E532-5-3-30, DPSS, beam expander green laser module
-
E532-15-3-30, DPSS, beam expander green laser module
-
E532-10-3-30, DPSS, beam expander green laser module, flashlight
-
E635-2-3-20, beam expander, red laser diode module
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Huanic | |
| Model Number | MLE520-10-4.5(10467-10) | Type | Other, Laser Module | |
| Package Type | Other | Max. Forward Voltage | DC 6.0V |
Product Description
Specifications
High quality green line laser module, use in laser equipment, such as laser level, Rotary laser etc.Main Specifications:
- Available wavelength: 520nm±10nm
- Size: Φ15mm x 29mm (with step for easy to mount)
- Output power: 9.5 to 10.5mW (Modulated power)
- Modulation frequency: 5KHz, 10KHz
- Output aperture: Φ3.5mm
- Operating voltage: DC 4.5V(2.7 to 6.0V)
- Operating current: ≤150mA @ 25°C (DC 4.5V)
- Working distance: 10m
- Line thickness: ≤2.5mm at 5m
- Curvature: ≤0.5mm @ 5m
- Coaxial: ≤1°
- Fan angle: ≥120°
- Divergence: 0.6mrad
- Optics: aspheric optical glass lens
- Operating temperature: -10-+60 ºC
- Storage temperature: -20-+70 ºC
- Output stability: ≤ ±3% at -10 ºC---+50 ºC
- Life time: ≥6000 hours
- Laser safety classification: Class 3R
- Wires: 2x160mm
- Minimum Order Quantity: 10 pcs
Contact Us
- Huanic Corporation
- Contact nameYali Liu Chat Now
- Phone86-29-81881001,13572261602
- AddressNo. 67, Jinye Road, High-Tech Zone
