Radiator Copper Fin Making Machine

Plate-fin Radiator Copper Fin Making Machine

Radiator Copper Fin Making Machine

1. Application

The machine is the special equipment for producing copper plate type fin. This equipment makes the copper plate

 according to the preset specification, and cuts it automatically. The machine is mainly comprised of driving,

edge folding, pattern forming tooling, counting, cutting, plate collection, and electrical control system.

2. Main Characteristics

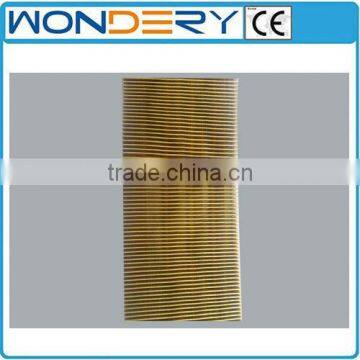

The equipment is used to produce copper heat radiation plate.

2.1 The tooling of the machine can make louver or convex ribs, punch holds, and roll ribs. The servo driving

system has a high positioning accuracy which assures the cutting accuracy.

2.2 The machine is controlled by inverter. The running speed of the raw material is 0-40m/min.

2.3 The machine has counting function.

2.4 The plate collecting mechanism can put in order the plates.

3. Technical Parameters

3.1 plate material: H62, thickness: 0.07-0.08mm;

3.2 hole-to-hole distance: 11mm; row-to-row distance: 22mm; tube hole size: 2.5mm*18.6mm (finalized by customer);

3.3 width of plate: 114mm;

3.4 running speed: 0-40m/min;

3.5 cutting frequency: 0-60 times per min; length of plate: adjustable (stepless regulation);

The machine is packed in plywood cases which can be moved through forklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The machine can be loaded into normal container (20GP or 40GP).

Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other heat exchanger products, and HVAC condensers and evaporators.

Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.

Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;

Evaporator Production Line

Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;

HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.

Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories

1)  Q: What is the power supply of the machine?

      A:  The power supply of the machine is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer so that the machine is ready for use at the end user's site.

2) Q: What information should the customer provide to get an accurate quotation from us?

     A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3) Q: What is the payment term?

     A: The payment term is 30% down payment, and 70% before delivery (T/T mode).

4) Q: What is the delivery time?

     A: The delivery time of the machine is 60 days after receipt of down payment.

5) Q: What is the warrantee period of the machine?

     A: The warrantee period is 1 year after completion of test-running.
