Home > Products > NITROGEN GENERATION PLANT > Nitrogen Generation Plant For Brazing Furnace

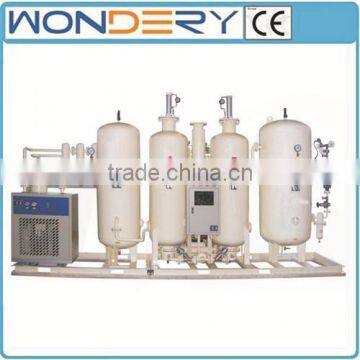

Nitrogen Generation Plant For Brazing Furnace
- 500 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | WONDERY | Model Number | TDL200 | |
| Usage | Nitrogen | Production Rate | 5~2000(Nm3/h) | |
| Voltage | 380V/220V | Power(W) | 4.8~100 | |
| Weight | 4500KG | Dimension(L*W*H) | based on the special size | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
A.Stable valve control-----Burkert, GermanyB. Advanced control system-----Mitsubishi PLC control
C. Accurate analyzing inst
NITROGEN GENERATION PLANT
Pecifications
1. Produce Scale:5~2000Nm3/h
2. Purity: 99.9%~99.9999%
3. Pressure: 0.1~1.0MpaG
4. Dew point: -40degree~55degree
Process Flow Brief Description
Air, after pressurized to the adsorption pressure by air compressor, is fed into adsorbers prior to passing the filtration of refrigerating dryer. The adsorbent is carbon molecular sieves. It is just making use of the property that adsorption amount of oxygen and nitrogen differs on the surface of the carbon adsorbent to adsorb O2 and desorb N2. The opening and closing of the program valves are controlled by the programmable logic controller (PLC) to complete each cycle of adsorption and desorption and then N2 is produced with the required purity. The two adsortbers are in adsorbing and desorbing alternatively to ensure N2 to be generated constantly and steadily.
Technical Features
1. It is an advanced technology with less investment.
2. The quality is reliable and both the N2 purity and quantity are stable.
3. The unit is supplied in a skid-mounted manner, which can be transported and installed easily.
4. It is full automatic control and no need for operators, easy to start-up and shutdown, simplified and
convenient maintenance.
The nitrogen generation plant is used to provide high quality nitrogen. The nitrogen purity ranges from 99.9% to 99.9999%. The nitrogen is specially used for medicine, heat treatment or other industries which have a high requirement on nitrogen quality.
Features of nitrogen generation equipment
1.Stable valve control-----Burkert, Germany
2. Advanced control system-----SIEMENS PLC control
3. Accurate analyzing instrument-----imported fuel oxygen electrode to ensure the long service life
4. High-efficiency carbon molecular sieve----- Japan-Enviro Chemicals carbon molecular sieve
5. Unique German compression technology: Germany Carbo Tech "Snowstorm" compression method is the latest compression technology which ensures that the nitrogen flow distribution is unified, full, and without dead corners.This function is different from spring or cylinder compression method.
