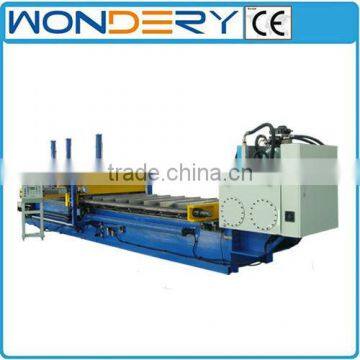

HVAC Production Line Numerical Control Horizontal Tube Expansion Machine
- 100 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Air-conditioner Aufomatic Fin Press Line/Fin Press Machine
-
Copper Tube Vertical Expansion Machine
-
Manual Tube Vertical Expansion Machine For HVAC/Air-conditioner system
Quality Choice
-
Long U-shape Semi-automatic Hairpin Tube Bending Machine/Bender
Quality Choice
-
Small U-shape Hairpin Tube Cleaning Machine
-
Semi-automatic Long U-shape Hairpin Tube Bender
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WONDERY | |
| Model Number | WZGJ | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Numerical Control Horizontal Tube Expanding/Expansion Machine: automatically expand the tube inside and mouth, and do edge-fold
HVAC Production Line Numerical Control Horizontal Tube Expanding/Expansion Machine
1. The machine can expand one side of the tube (tube inside and tube mouth) as well as edge-fold. This machine is used to expand U-tubes.
2. The machine can expand the tube inside and mouth and edge-fold the tubes on one side, and on the other side expand the tube mouth and edgefold the tubes automatically. This machine is used for automatic bending of straight tubes.
Machine Type | Numerical control horizontal tube expanding machine | |
Heat exchanger specification | Normal fin thickness (mm) | 12.7mm,19.05mm,21.65mm,22mm,32.91mm |
Length (mm) | 250~3000 | |
Row quantity | 1~8 | |
Max hole quantity per row(based on hole-to-hole distance 25mm) | 64 | |
Expansion speed | Fast speed (m/min) | >4 |
Slow speed(m/min) | >0.7 | |
Oil pump motor power (kw) | 11/15 | |
Oil cylinder diameter(mm) | 160/180/200mm | |
Hydraulic oil | ISOVG32(winter)/ISOVG46(summer) | |
Lubrication oil | Mechanical oil ISOVG22-32 | |
