Home > Products > Spare parts for ZLP suspended platform > ZLP630/800/1000 steel suspended platforms

ZLP630/800/1000 steel suspended platforms

FOB Price

USD $2,000 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Tianjin Port
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	JIUHONG
Model Number	ZLP800/ZLP630

Product Description

introduction

Suspended platform is the working area for constructors, which consists of front guard rail, rear guard rail, platform decking and hoist---mounted frame combining with each other by bolts.

Suspended platform has three standard section at 2m on average, and is 0.69m in width, 1.16m in height.

There are Hoist-mounted frames combined with guard-rails on the two sides of the platform, and hoist, overload device, and safety lock all ar assembled on the frame.

There are aprons at the two ends of the platform, which ensures that the material within are hard to slip outside.

Specification

Modle	ZLP1000	ZLP800	ZLP630	ZLP500	ZLP250
Rated load(kg)	1000	800	630	500	250
Lifting speed(m/min)	8.3+0.5	8.3+0.5	8.3+0.5	8.3+0.5	9.6+0.5
Platform Dimension (m)	7.5	7.5	6	5	2.5
Lifting Height(m)	100	100	100	100	100
Voltage(V)	380	380	380	380	380
Frequency(HZ)	50	50	50	50	50

Aluminum & Steel Suspended Platform/Cradle Model		ZLP500	ZLP630	ZLP800	ZLP1000
Suspended Platform 1m,2m,3m,1.5m,2.5m to the length made. In any Combination	Rated Load	500KG	630KG	800KG	1000KG
	Rated Lifting Speed	8.3±0.5m/min	8.3±0.5m/min	8.3±0.5m/min	8.3±0.5m/min
	Length of Platform	5000mm	6000mm	7500mm	7500mm
	Surface Proceeding	Aluminum;steel materials(Galvanized,Spraying)
Lifting Height		100m	100m	100m	100m
Cable		100m	100m	100m	100m
Max Lifting Height		200m	200m	200m	200m
Diameter of Cable		8.3mm	8.3mm	9.1mm	8.6mm

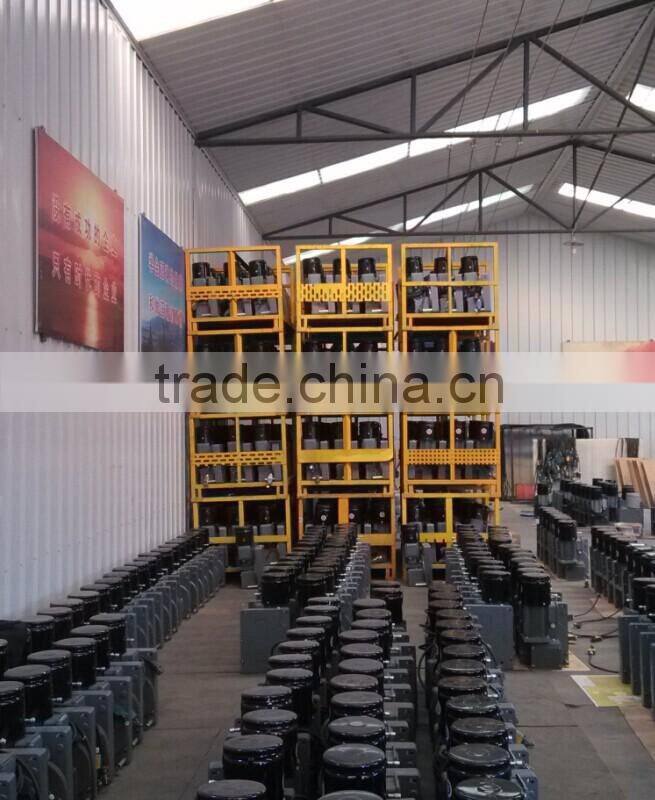

Hoist	Type	LTD5.0	LTD6.3	LTD8.0	LTD10
	Power	1.1KW*2	1.5KW*2	1.8KW*2	2.2KW*2
	Voltage	380V, 50HZ, Three-Phase
	Rotation Speed	1420 r/min	1420 r/min	1420 r/min	1420 r/min
	Braking Torque	15 N m	15 N m	15 N m	15 N m
Safety Lock	Type	LSI30(Anti-dip)
	Permission Force of Impact	30KN	30KN	30KN	30KN
	Locking Cable Angle	3°~ 8°	3°~ 8°	3°~ 8°	3°~ 8°
	Allowable Load	>800kg	>800kg	>800kg	>1000kg
	Cable Locking Distance	Max.100mm	Max.100mm	Max.100mm	Max.100mm

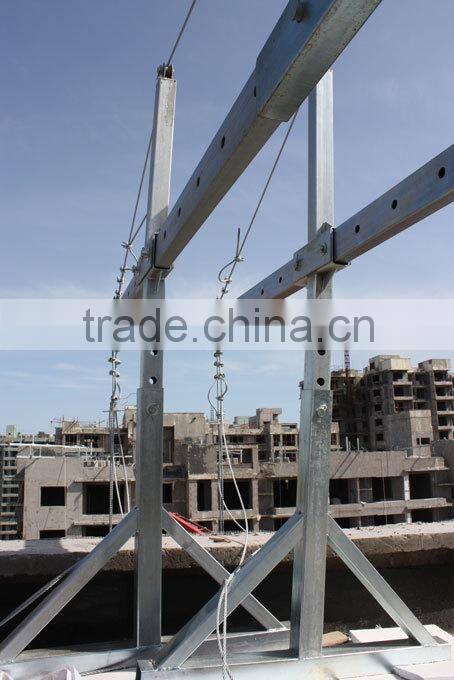

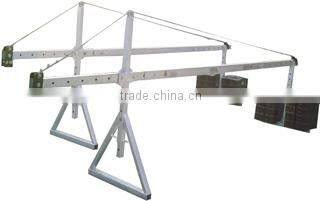

Suspension Mechanism (Can be made acccording to special requirements)	Front Beam Overhang	1.3 ~ 1.5m ±0.26	1.3 ~ 1.5m ±0.26	1.3 ~ 1.5m ±0.26	1.3 ~ 1.5m ±0.26
	Support Adjustable Height	1.44 ~ 2.14m ±0.26	1.44 ~ 2.14m ±0.26	1.44 ~ 2.14m ±0.26	1.44 ~ 2.14m ±0.26
	Weight	360kg	360kg	360kg	360kg
Electrical Control System	Install with international and national famous brands electric components.Safety devices,such as an electric leakage production of power system,automatic limited switch are install to make operation easer,safer and more reliable.
Counter Weight		1000G	1000KG	1000KG	1000KG

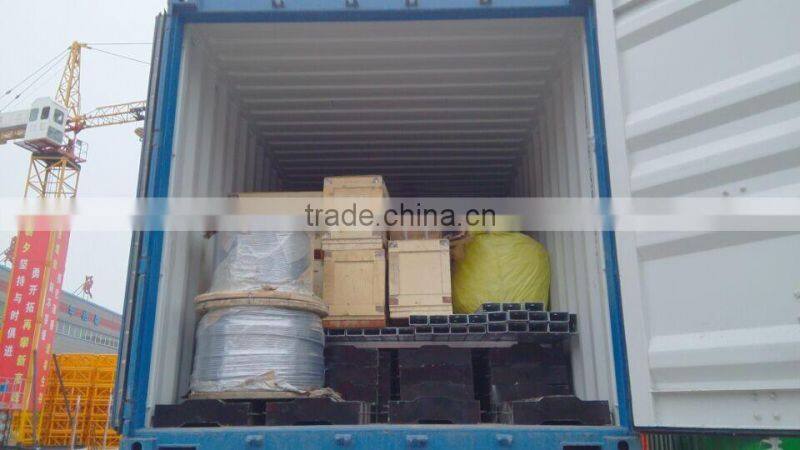

20' ft Container		6 ~ 9sets	6 ~ 9sets	6 ~ 8sets	6 ~ 8sets
40' ft Container		12 ~ 15sets	12 ~ 15sets	12 ~ 15sets	12 ~ 15sets

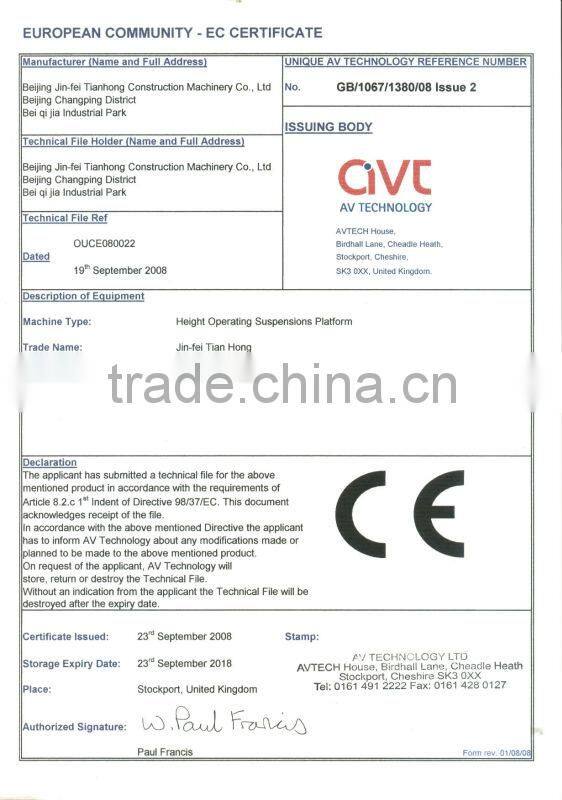

Certification

Contact Person: Cooper

Mobile: +86-18701561059

Skype: franco.chen7

Our factory address: Xisha Industry Zone , Changping District , Beijing , China

Welcome to visit our factory! We are manufacturer!!
