Hoist for Lifiing Concrete
- Tianjin
- T/T Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Beijing, China | |
| Brand Name | Jiu Hong | Model Number | SS100/100 | |
| Rated Loading Capacity(kg) | 2000kg | Hoisting Speed | 23.5m/min | |
| Max Lifting Height | 80m | Dimension(L*W*H) | 3*1.5*2.4m | |
| Loder Weight | 2000kg | After-sales Service Provided | Overseas service center available |
Product Description
SS100/100 Material Hoist | |||
Technical Parameter of SS100/100 Material Hoist | |||
Item | Unit | Parameter | |
Basic Installation Height | m | 30 | |
Attachment Installation Height | m | 70 | |
Rated Lifting Capacity | Kg | 1000 | |
Lifting Speed | m/min | 23.5 | |
Cage Dimension (L*W*H) | m | 2.8*1.5*1.9 | |
Sectional Dimension Of Bracket | m | 0.85*0.85 | |
Motor Power | Kw | Single-cage 7.5 | |
Steel Rope Model |
| 6*37+1-12-170-Right | |
Steel Rope Length(Typical) | m | 150 | |
Total Weight | Single-cage (at 30m) | Kg | 4060 |
Model:SS100/100 Hoist for lifiing concrete
Name:wire rope hoist
capacity:2*1000kg
Type:double cage wire rope hoist
1. SS100/100 wire rope hoist is set up with safety multiple protection measures like Floor-selecting and Leveling Device,
Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor,
Anti Rope-breaking Equipment, among which, the brake performance
and brake slide distance of the Rope Protector are above national standards.
It is safe, reliable, and harmless to rail-track.
1. Manual Control, which is direct control by the operator.
2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting
and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.
SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection
and dismantling unit (Derrick), easy for handling and transportation.
SS100/100 has 2 types: Single-caged and Double-caged, optional for users.
The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes,
which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.
We can make wire rope hoist from 30m,50m,60m,70m,72m to 90m.
Main parts as below:

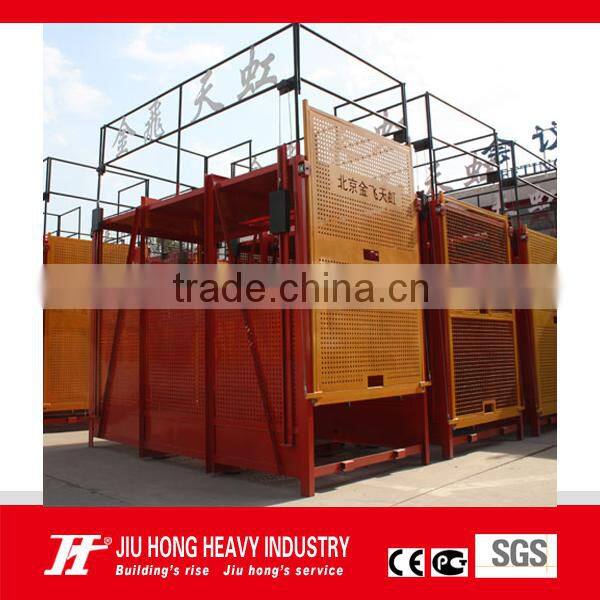

A: wire rope hoist Cage with wheelhouse

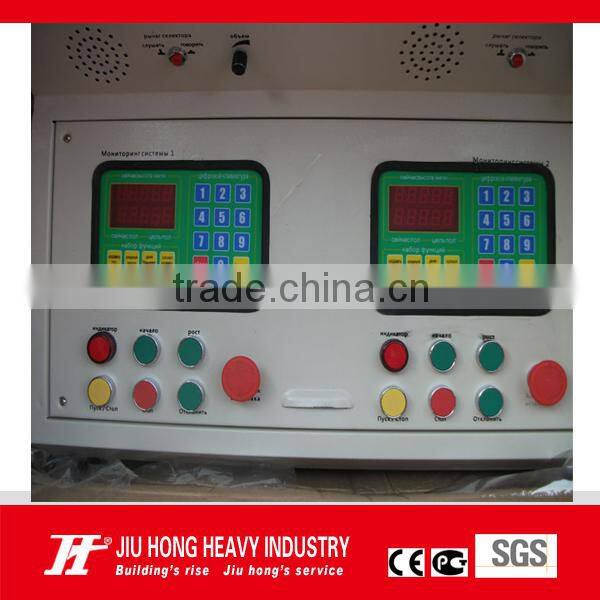

Electric system of wire rope hoist

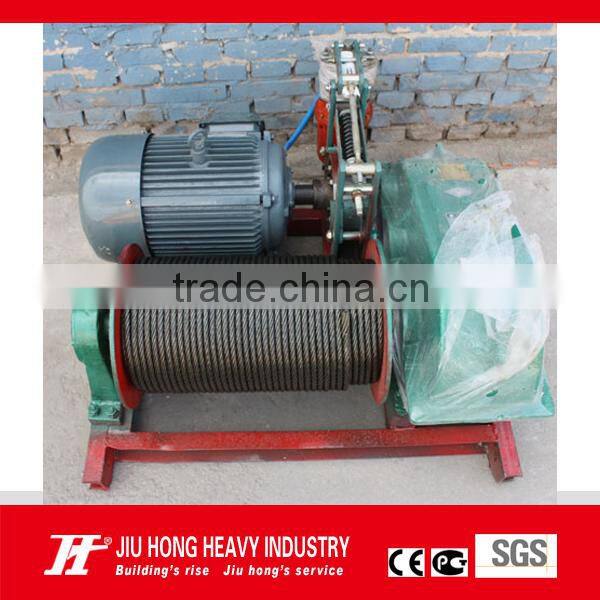

Wonderful power motor for wire rope hoist

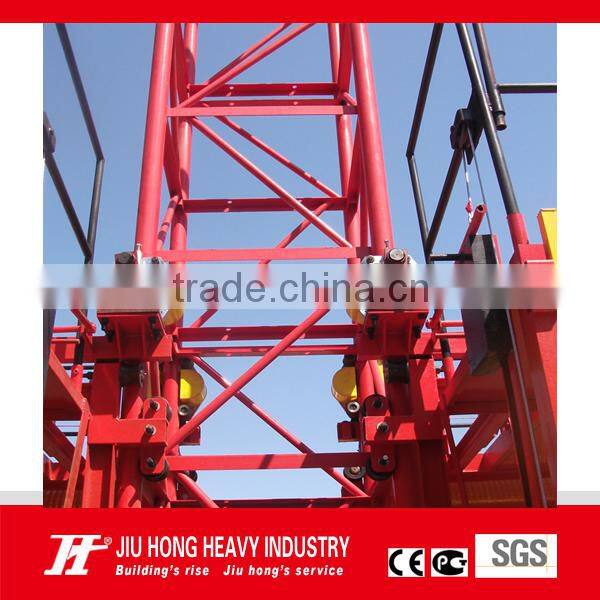

wire rope hoist mast section with good material
CE,GOST,CCC Certification and so on
