Home > Products > QTZ Tower Cranes > tower cranes QTZ63 tower crane 6ton telescopic tower crane
tower cranes QTZ63 tower crane 6ton telescopic tower crane
- 500 Set / Sets per Month
- Tianjin Or Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Application | construction, Construction | |||
| Rated Loading Capacity | 6t | Rated Lifting Moment | 56, 630 KN.M | |
| Max. Lifting Load | 6t, 6T | Max. Lifting Height | 141 | |
| Span | 56m, 56M | Place of Origin | Beijing, China | |
| Brand Name | JIuhong | Model Number | QTZ5610 | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

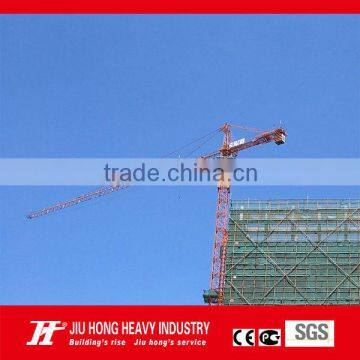

Construction Building Tower Crane
Technical Parameters
Model | QTZ63B(5610) | QTZ63B(5013) |
Jib Length (M) | 56 | 50 |
Free Height (M) | 41 | 41 |
Max. Possible Height (M) | 161 | 161 |
Max. Load (T) | 6 | 6 |
Tip Load (T) | 1.0 | 1.3 |
Wall-attached Device for Max Height (sets) | 6 | 6 |
Main Material (mm) | Standard Mast Section 135×135×10 (Square Steel Tube) | Standard Mast Section 135×135×10 (Square Steel Tube) |
Mast Section Dimension (m) | 1.835×1.835 ×2.5 | 1.835×1.835 ×2.5 |
Hoisting Speed (a=2) (m/min) | 80/40/10 | 80/40/10 |
Min. Stable Falling Speed (m/min) | 5 | 5 |
Slewing Speed (r/min) | 0-0.62 | 0-0.62 |
Radius-changing Speed (m/min) | 40/20 | 40/20 |
Jacking-up Speed (m/min) | 0.6 | 0.6 |
Total Motor Power (kw) | 55.2 | 55.2 |
Power Supply | 380V/50HZ | 380V/50HZ |
Weight of Independent Structure (T) | 36.80 | 36.80 |
Counterweight (T) | 14.85 | 14.85 |
Base Form | Embedded Type (Outrigger Stationary) | Embedded Type (Outrigger Stationary) |
Number of Containers Needed for Shipment (Free Height) | 6 * 40HC containers | 6 * 40HC containers |
Outstanding Features:
The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.
The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day,
which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control s
ystem and the work efficiency of the tower crane.
The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and
multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic
Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays
thedata of working radiuses, heights, moments and weights.
Beijing Jiuhong Heavy Industry hopes to cooperate with you free to contact:
