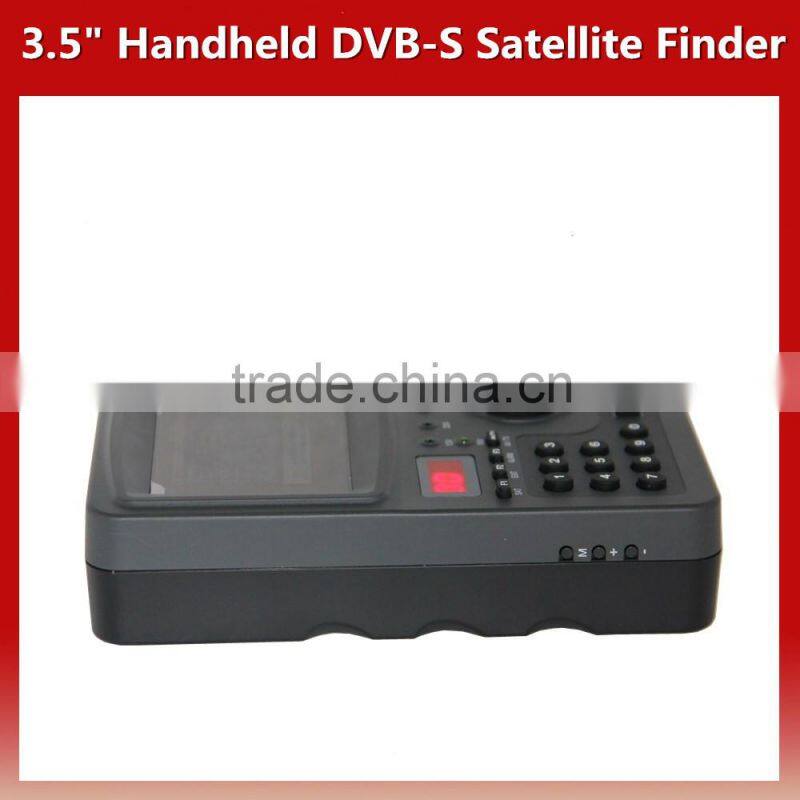

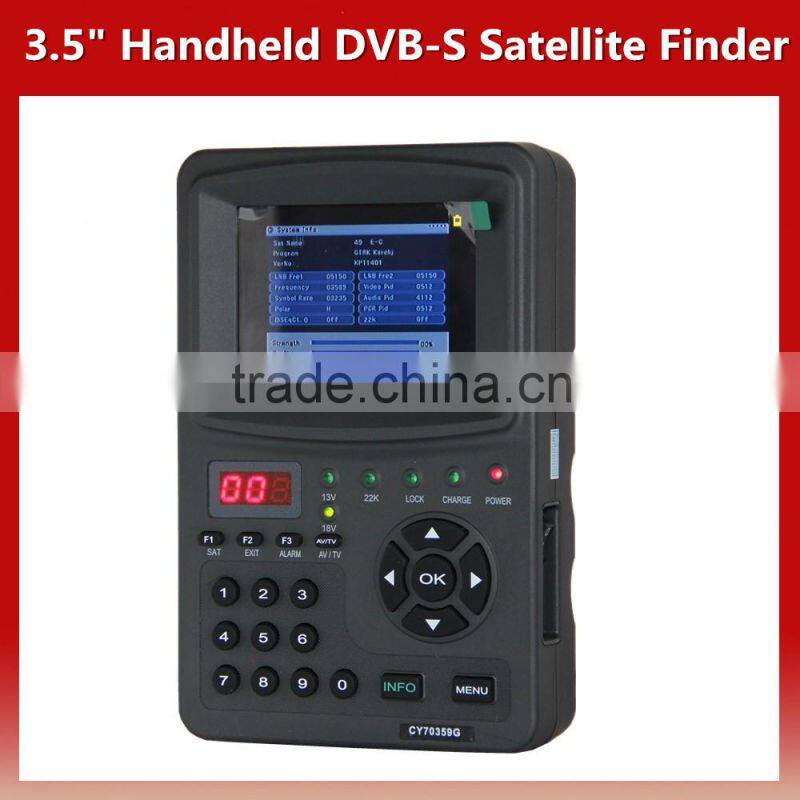

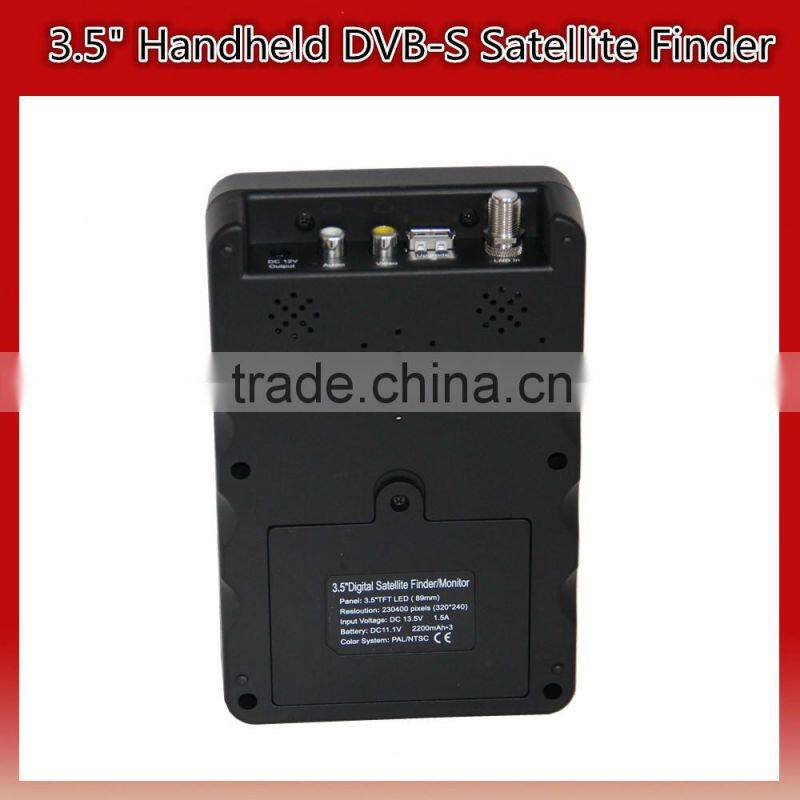

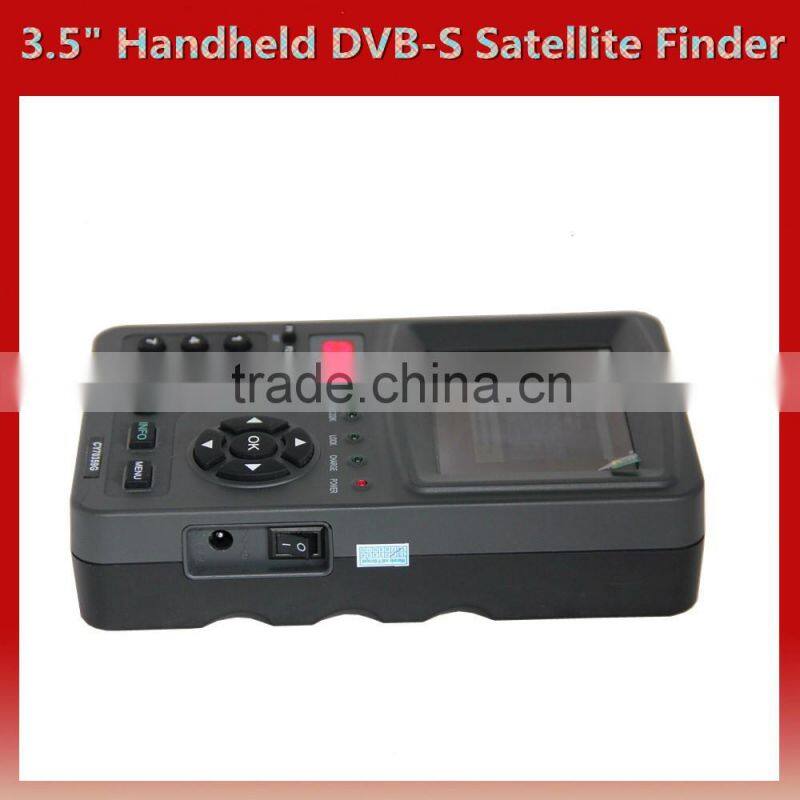

3.5 Inch Handheld DVB-S Signal Satellite Receiver

Specifications

Description:
The satellite finder with world advanced technology: QPSK demodulator and MPEG-II decoder in full compliance with the DVB-S standards, also can use ABS-S CBS-2 MPEG-4 signal buzzer automatic and signal display, with newest integrated circuit and TFT, TFD liquid crystal display technology production, machine targeting a high-performance, high-capacity lithium-polymer battery, the satellite finder is a collection of satellite television signal and AV signal reception, high resolution LED display and with DC power supply directly one of the high-tech electronic products. Built-in satellite finder management; 13V 18V/22K/signal lock instruction; LNB short-circuit protection. It is can be carried and used outdoors. It is the absolutely necessarily for engineers during their installation of the satellite television reception systems and monitoring equipment system.

3.5” high-resolution digital display LCD
TFT LED 3.5” (89mm)
Lithium battery: DC 11.1V 2200mAh (built-in)
Video/Audio output; built-in speaker
Input voltage: DC 13.5V 1.5A
Color system: PAL/NTSC
Dots pixels: 320x240
AV input with DC 12V output
Battery indicator light show
Video: MPEG-2 Main Level

Display screen: TFT LED 3.5” 230400 pixels
Video decode: ISO/IEC 13818-ZMP @ML NTSC/PAL
A/V output/input: audio RCA channel
Input impedance: 75Ω (F type)
Input frequency: 950-2150MHz
Input signal level: -65 to -25dBm
LNB power: 13/18V, max 400mA
LNB switch: 22KHz
DiSEqC: 1.0 or 1.2 edition
EB/O threshold: 4.5dB
Demodulation chip: QPSK (SCPC and MCPC compatible)
Symbol rate: 2-45MbaudsMCPC, SCPC compatible
System processor: 32bit processor (200MHz)
SDRAM: 16Mbyte
FLASH: 8Mbyte
Video: MPEG-2 Main Level
Satellite signal/video: DVB-S
Satellite signal test: ABS-S/CBS-2/DVB-S2 signal display & alarm
Sampling rate: 32, 44.1 and 48KHz
Image analysis: 720x576, 720x480
Battery: 11.1V 2200mAh
Audio decode: ISO/IEC 13818-3Layerl & 2
Output voltage: 12V
Input voltage: DC 13.5V 1.5A

1. 13.5V  DC adapter                          1piece

2. Bag                                                 1piece

3. LNB(F Quick plug)                            1piece

4. Car Power                                       1piece(Free Extra)

5.LNB fast connection(F fast line)       1piece(Free Extra)

6.DC to DC                                          1piece(Free Extra)
